Pcm Code P110 - Generator "L" Terminal Circuit Problem

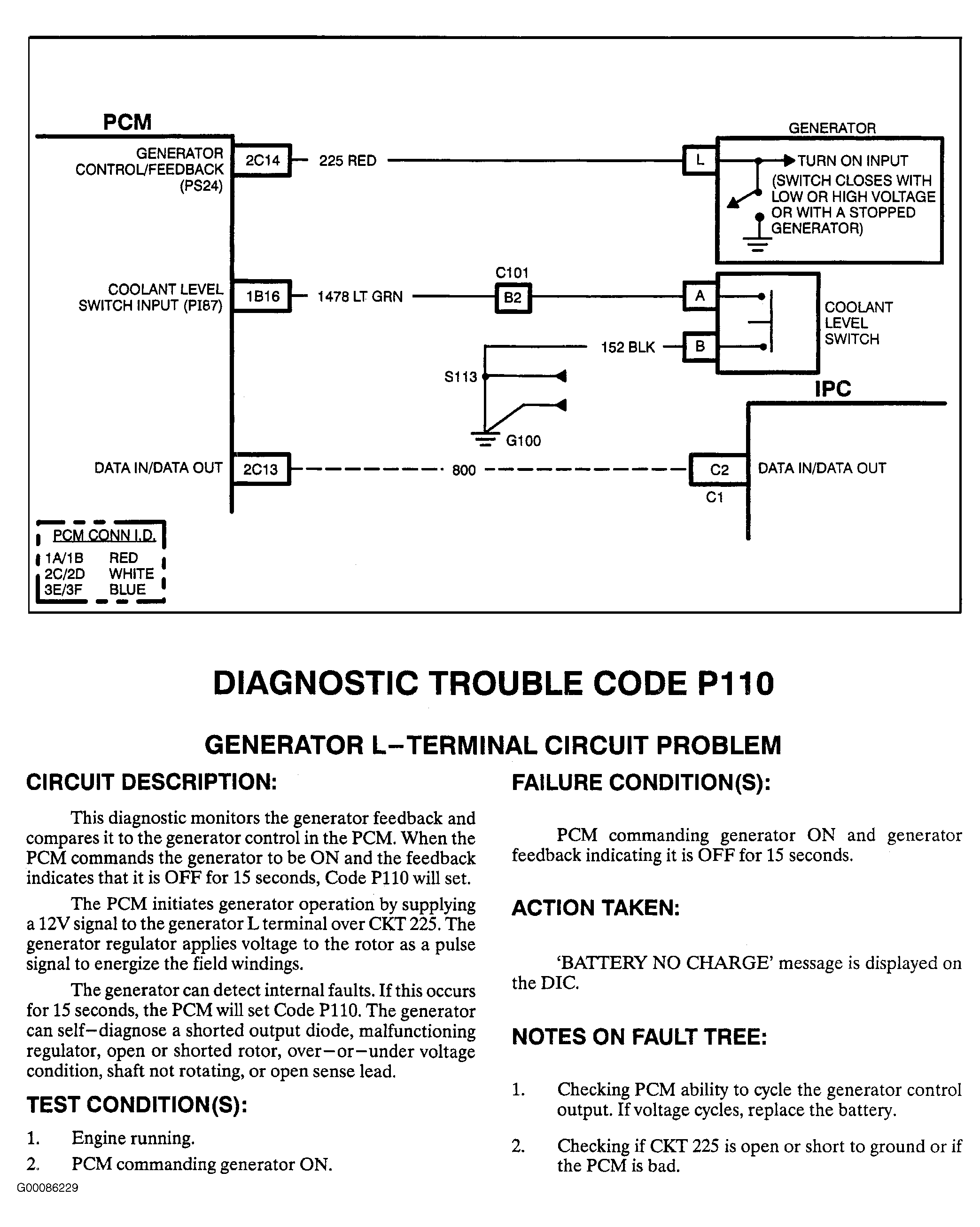

Fig 1: PCM Code P110 Schematic - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

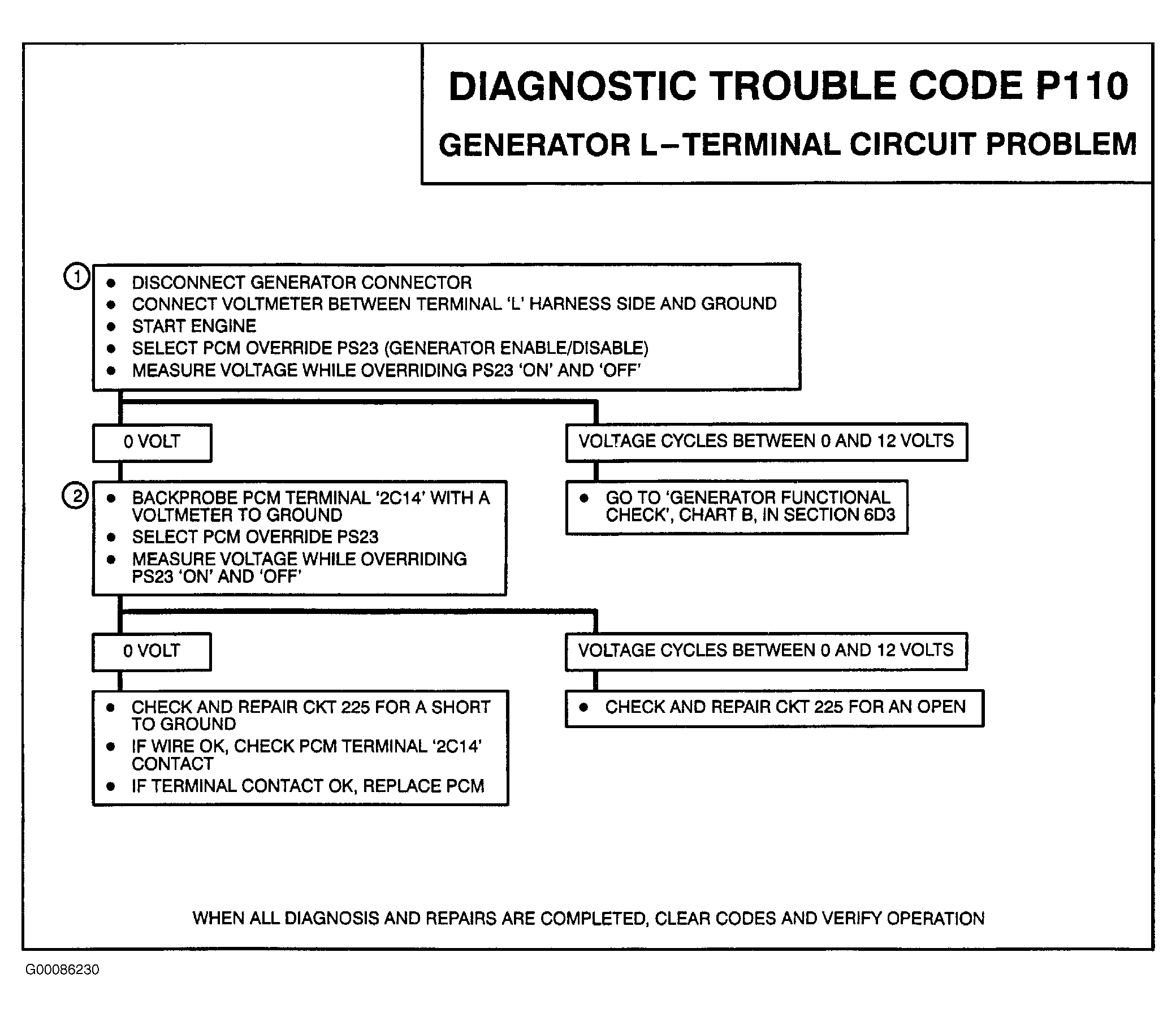

Fig 2: PCM Code P110 Flow Chart - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
