Pcm Code P137 - Loss Of Abs/TCS Data

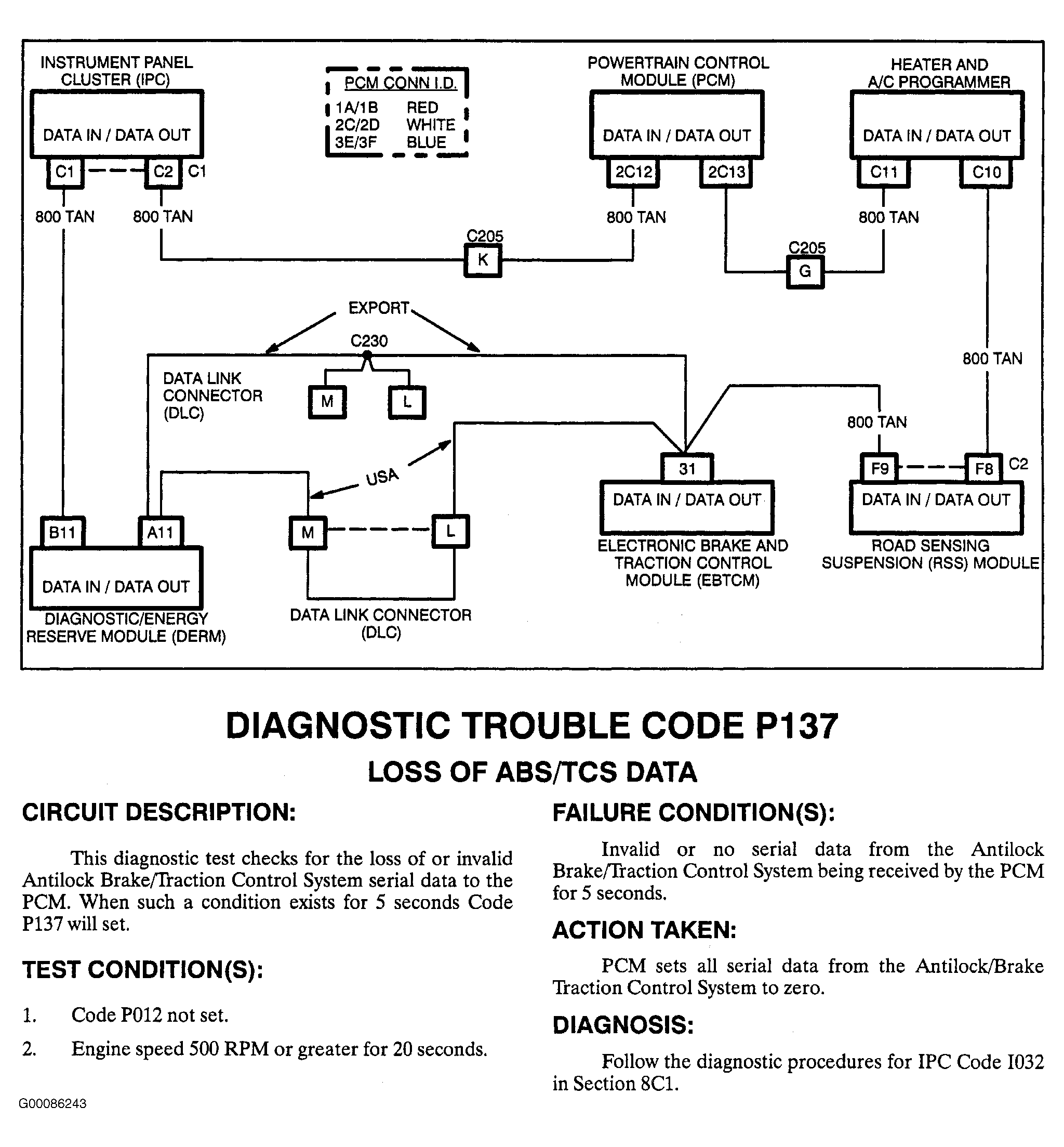

Fig 1: PCM Code P137 Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
