Powertrain Control Module Main Fuses

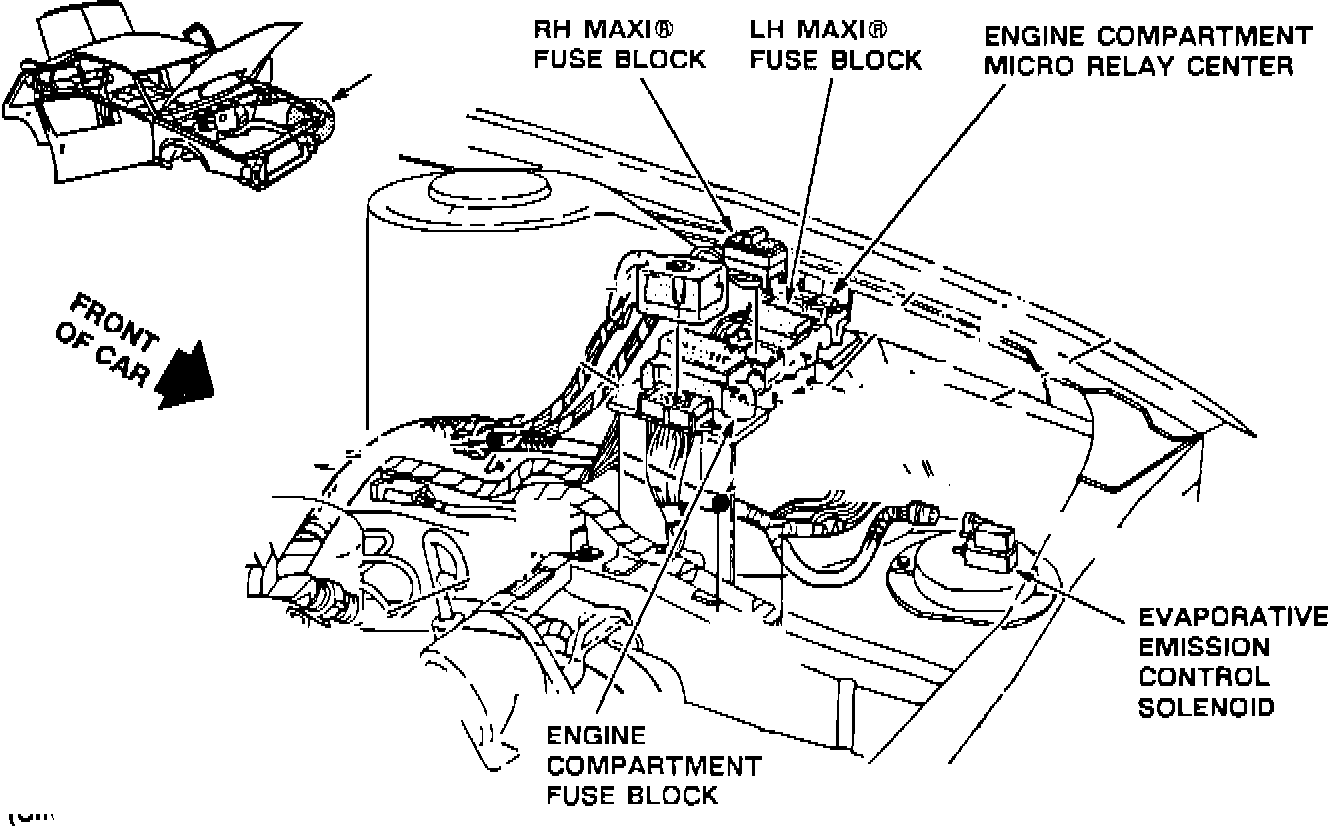

Pictorial View:








BATT fuse (B13) and IGNITION fuse (A9) located in engine compartment fuse block on LH side of engine compartment, on wheelhouse.
