Coolant Temperature Sensor/Switch (For Computer): Locations

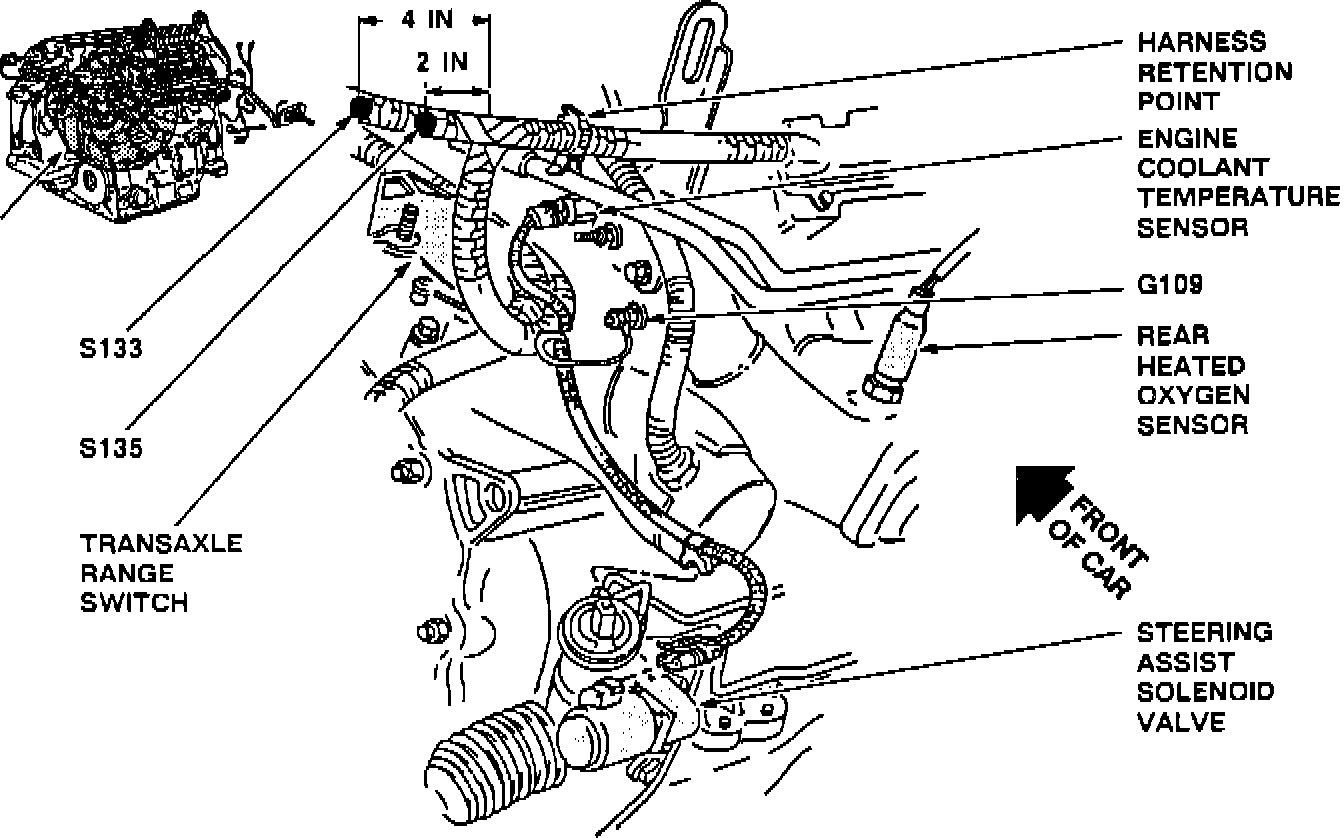

Pictorial View:
Top LH side of engine, near rear valve cover.
