Idle/Throttle Speed Control Unit: Service and Repair

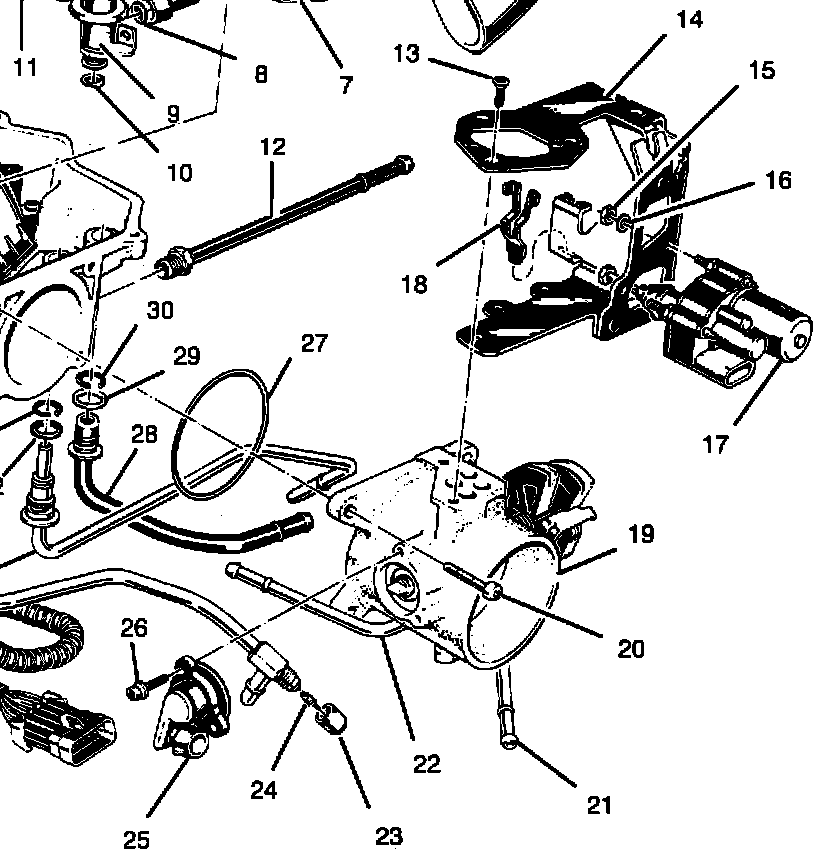

Throttle Body Components:

Cable Routing:

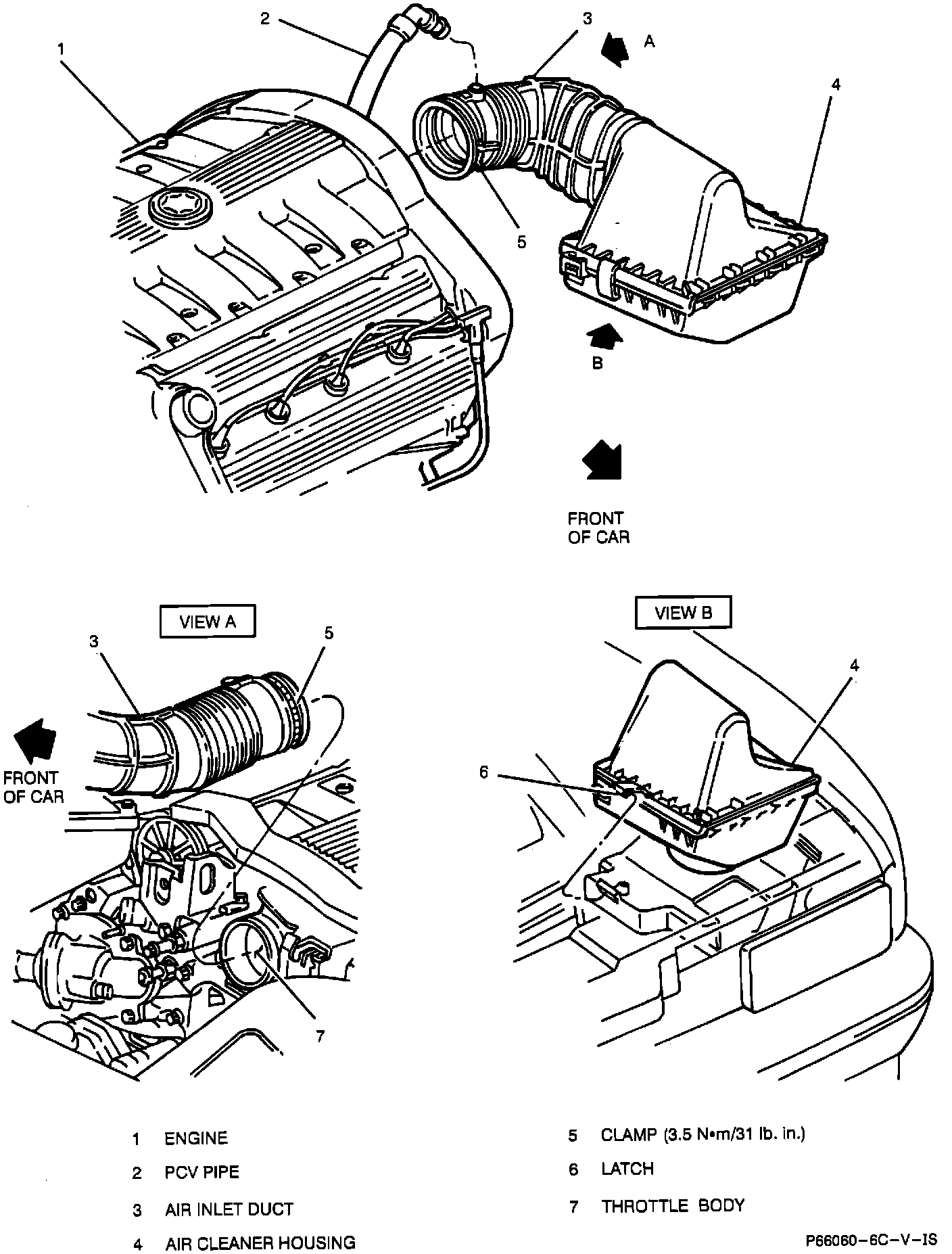

Air Induction:

REMOVE OR DISCONNECT
- Air intake duct.
- Cruise control servo and bracket.
- ISC motor electrical connector.
- ISC motor. (#17)

INSTALL OR CONNECT
- ISC motor. (#17)
- Torque nuts to 6 N-m (53 lb. in.).
- ISC motor electrical connector.
- Cruise control servo and bracket.
- Air intake duct.


ADJUST
^ Perform ISC check.
^ Perform TP SENSOR/IDLE LEARN procedure if necessary.
