Series/Parallel Circuit

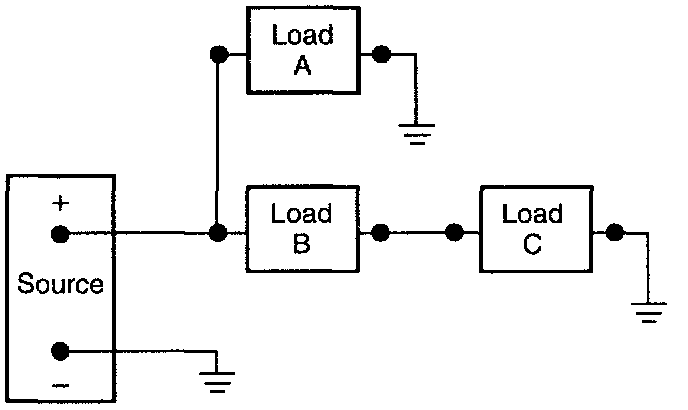

Series/Parallel Circuit:






A Series/Parallel circuit consists of a single current path and a circuit with more than one current path to and from the power source.
