Note On Intermittents

If code is intermittent, check for short to ground or voltage on circuit No. 229, intermittent open in circuit No. 229 or intermittent loss of power to module.

Fig 1: Code P058 Schematic (DeVille)

Courtesy of GENERAL MOTORS CORP.

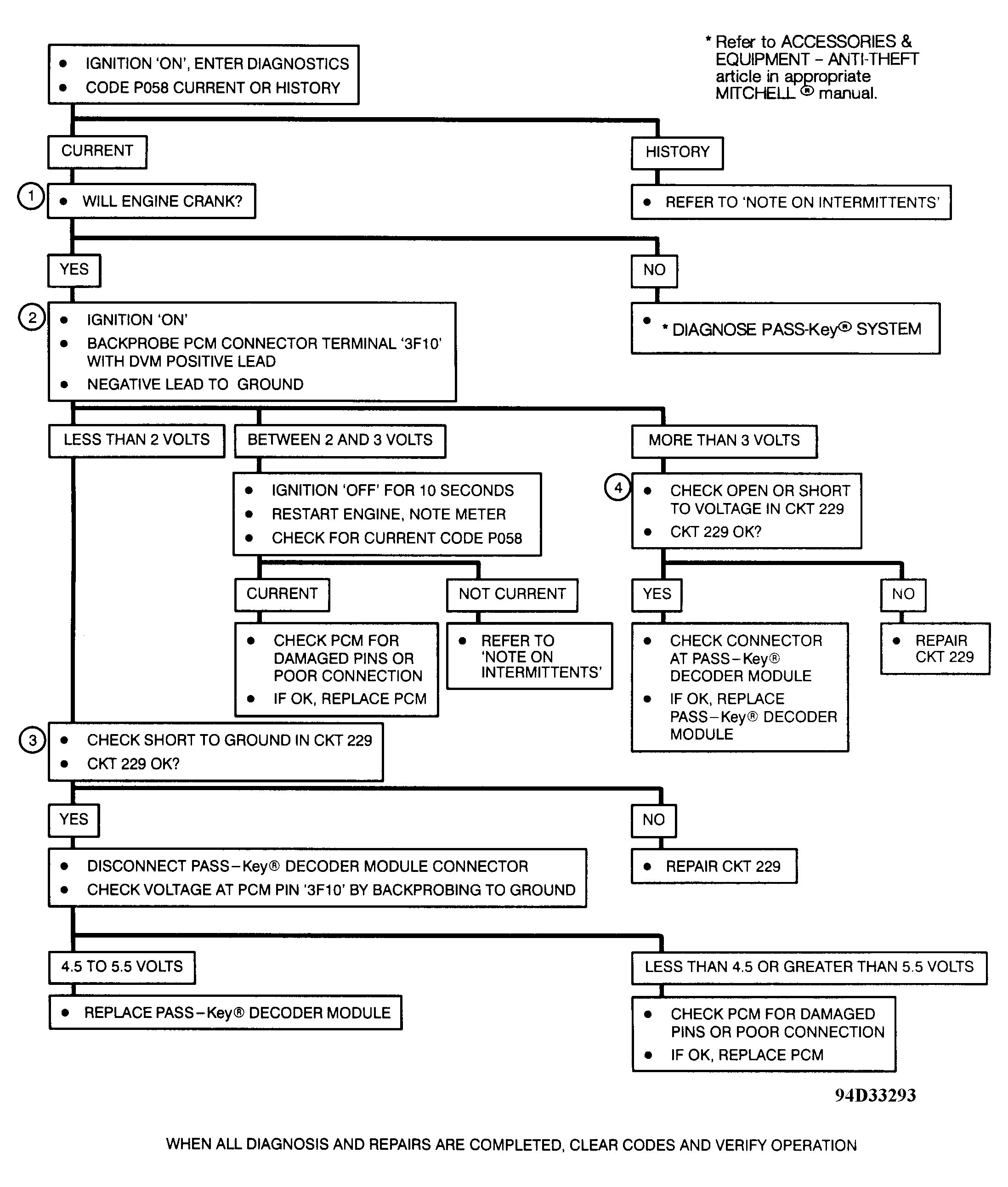

Fig 2: Code P058 Flow Chart (DeVille)

Courtesy of GENERAL MOTORS CORP.
