Notes On Intermittents

Code is not set by vacuum leaks or vacuum supply problem. Code can only set when vehicle speed exceeds cruise control set speed by 20 MPH.

Fig 1: Code P063 Schematic (DeVille)

Courtesy of GENERAL MOTORS CORP.

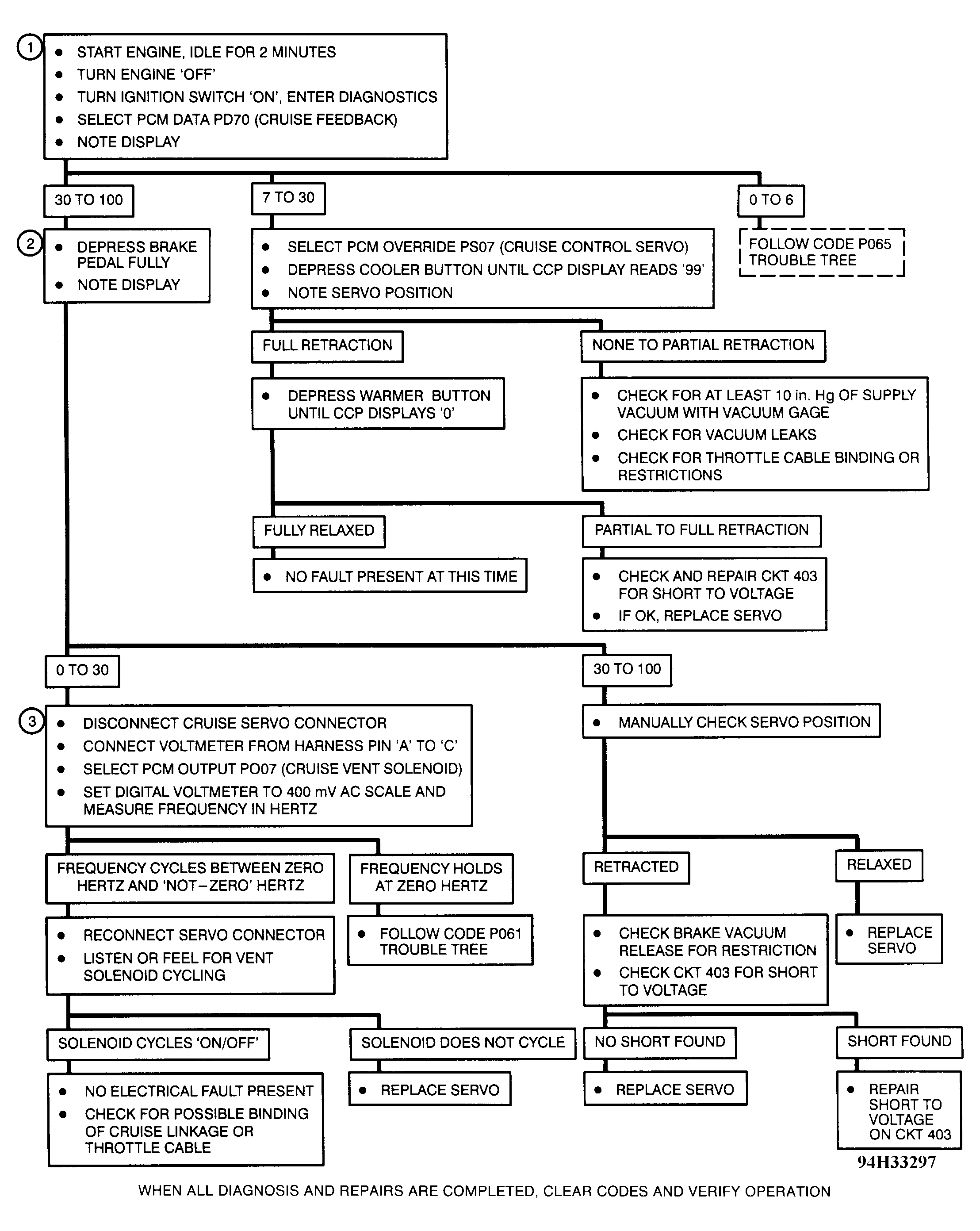

Fig 2: Code P063 Flow Chart (DeVille)

Courtesy of GENERAL MOTORS CORP.
