PI83: Cruise Control SET/COAST Switch

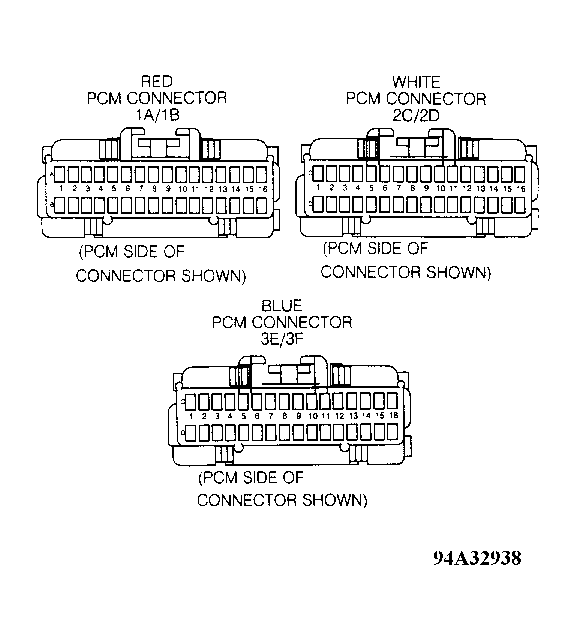

Test detects closing of SET/COAST switch at PCM terminal No. 2D15. See Figure. PI83 should be LO with cruise control switch off and HI with cruise control switch on.
