Code P038, Open Intake Air Temperature (IAT) Sensor: Action

PCM turns on MIL. PCM substitutes outside air temperature for IAT. Transaxle shift adapts are maintained at current levels.

1. If IAT sensor is open, PCM parameter PD05 should indicate -32°C or less. If PD05 does not indicate -35° or less, sensor signal is not open.
2. Checks PCM and circuit No. 472 from PCM to sensor connector. If PCM parameter PD05 indicates 147-151°C with connector terminal "A" shorted to terminal "B", sensor circuits and PCM are okay.
3. Checks for open sensor circuit No. 452 (ground). If PCM data PD05 reads 147-151°C with sensor connector terminals jumpered, then circuit No. 452 and PCM are okay.
4. Checks if circuit No. 472 or if PCM is open.
5. Checks if circuits No. 452 or 472 or IAT sensor is open or shorted to voltage inside intake manifold.
6. IAT sensor can be damaged by backfire in intake or by excessive intake heat due to valve train faults. If vehicle has had multiple IAT sensor replacements, check for signs of backfire or high intake manifold air temperature due to improper valve train operation.

Fig 1: Code P038 Schematic (4.6L)

Courtesy of GENERAL MOTORS CORP.

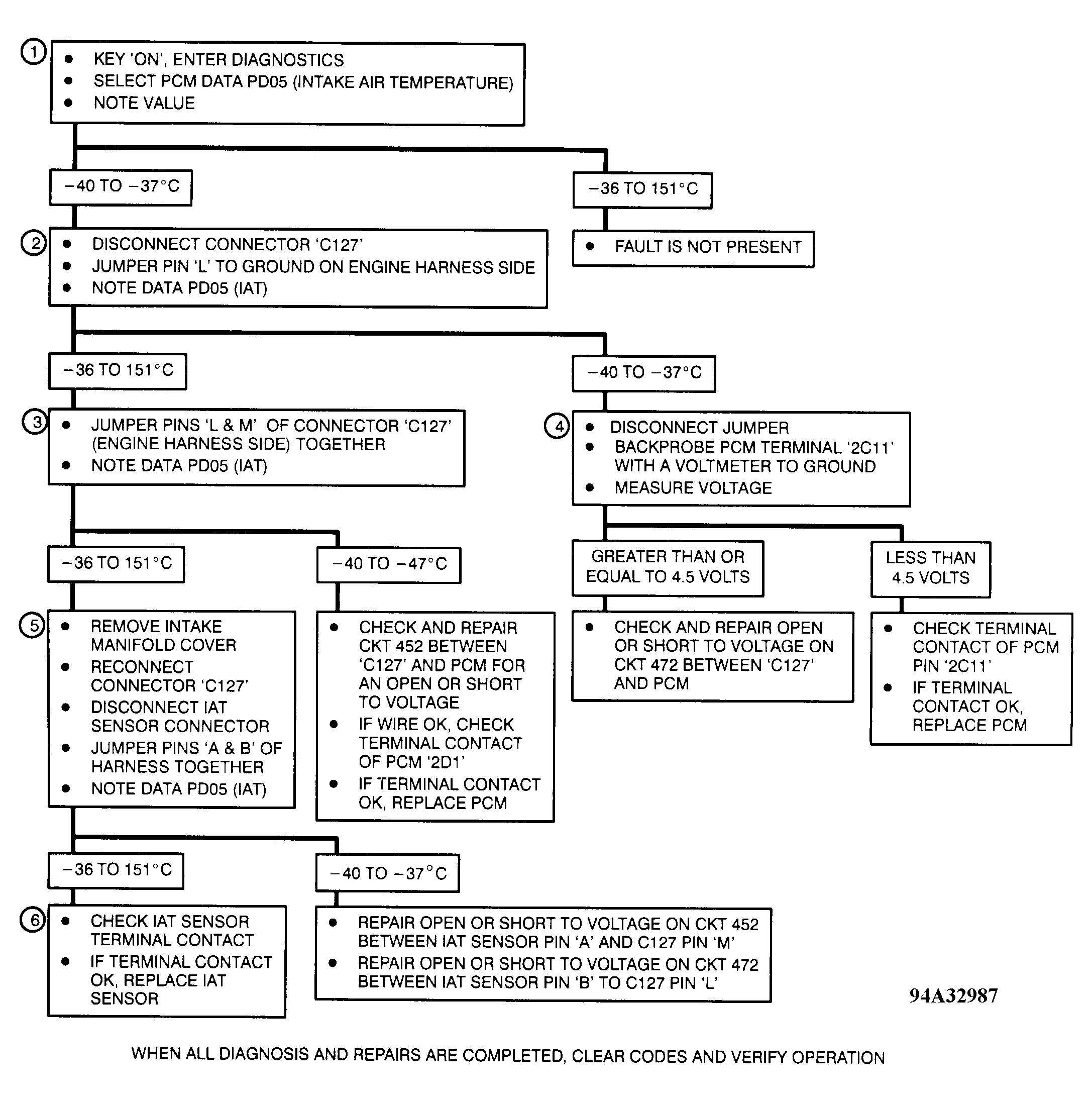

Fig 2: Code P038 Flow Chart (4.6L)

Courtesy of GENERAL MOTORS CORP.
