Engine Compartment Fuse Block

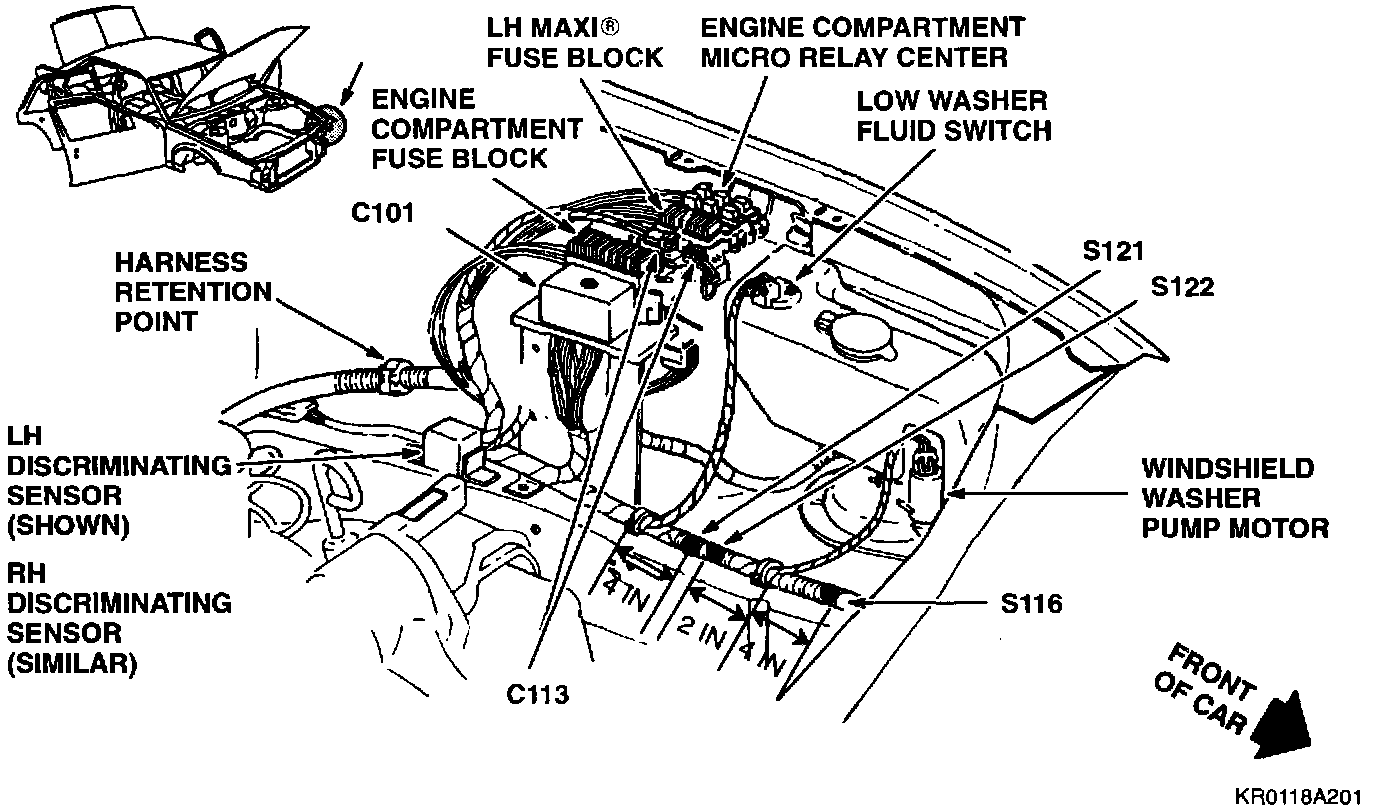

LH Side Of Engine Compartment (4.9L Shown, Northstar Similar):

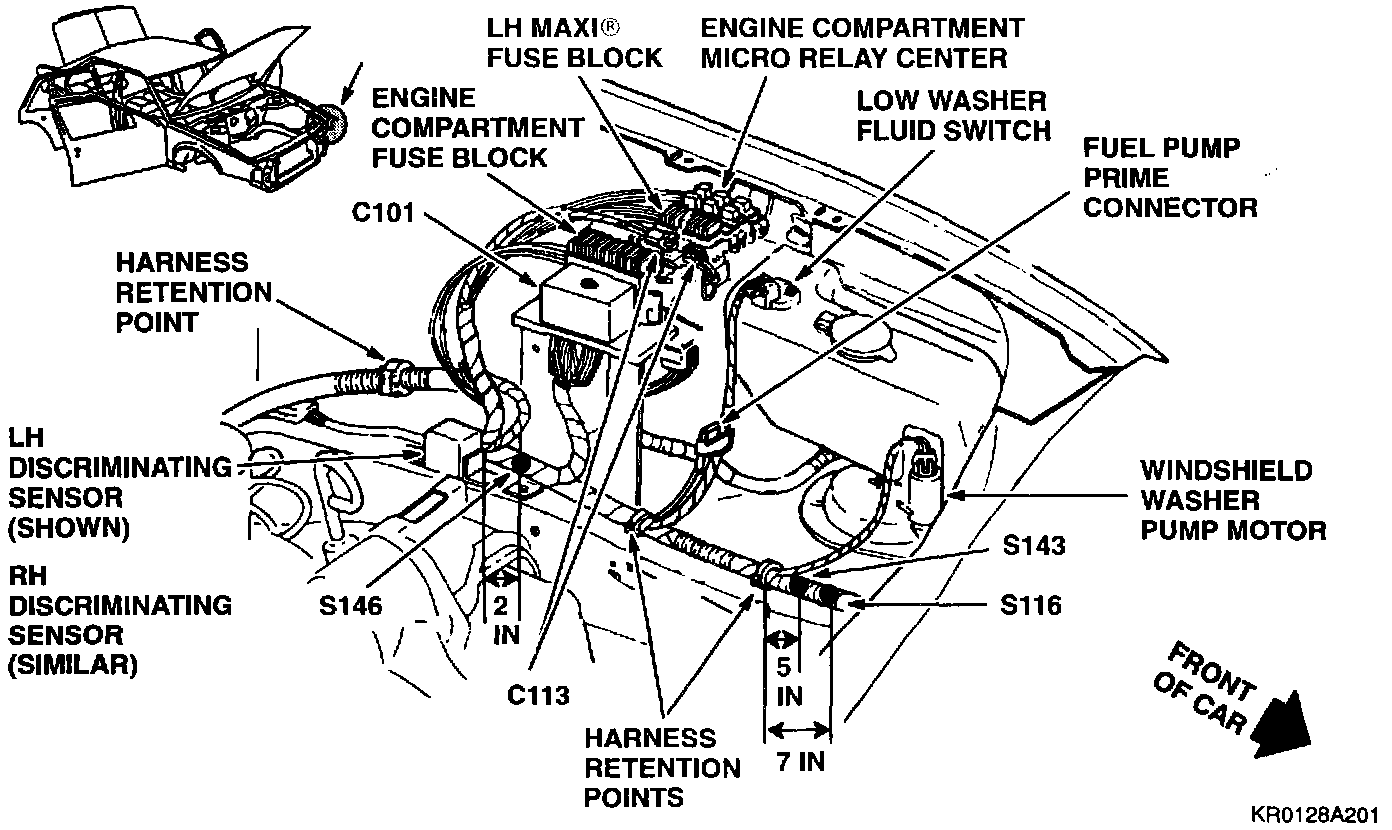

LH Front Of Engine Compartment (4.9L Shown, Northstar Similar):

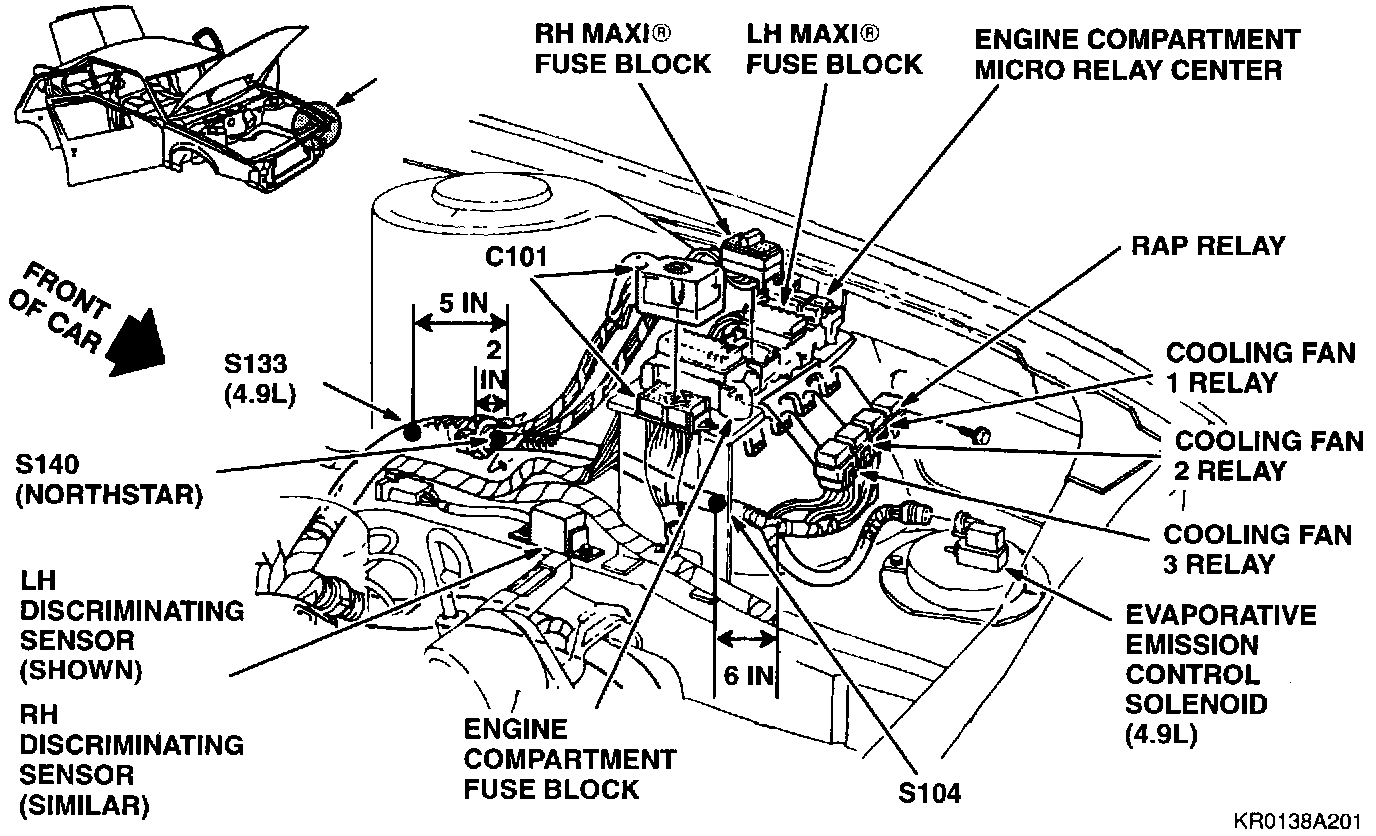

LH Front Of Engine Compartment (4.9L Shown, Northstar Similar):

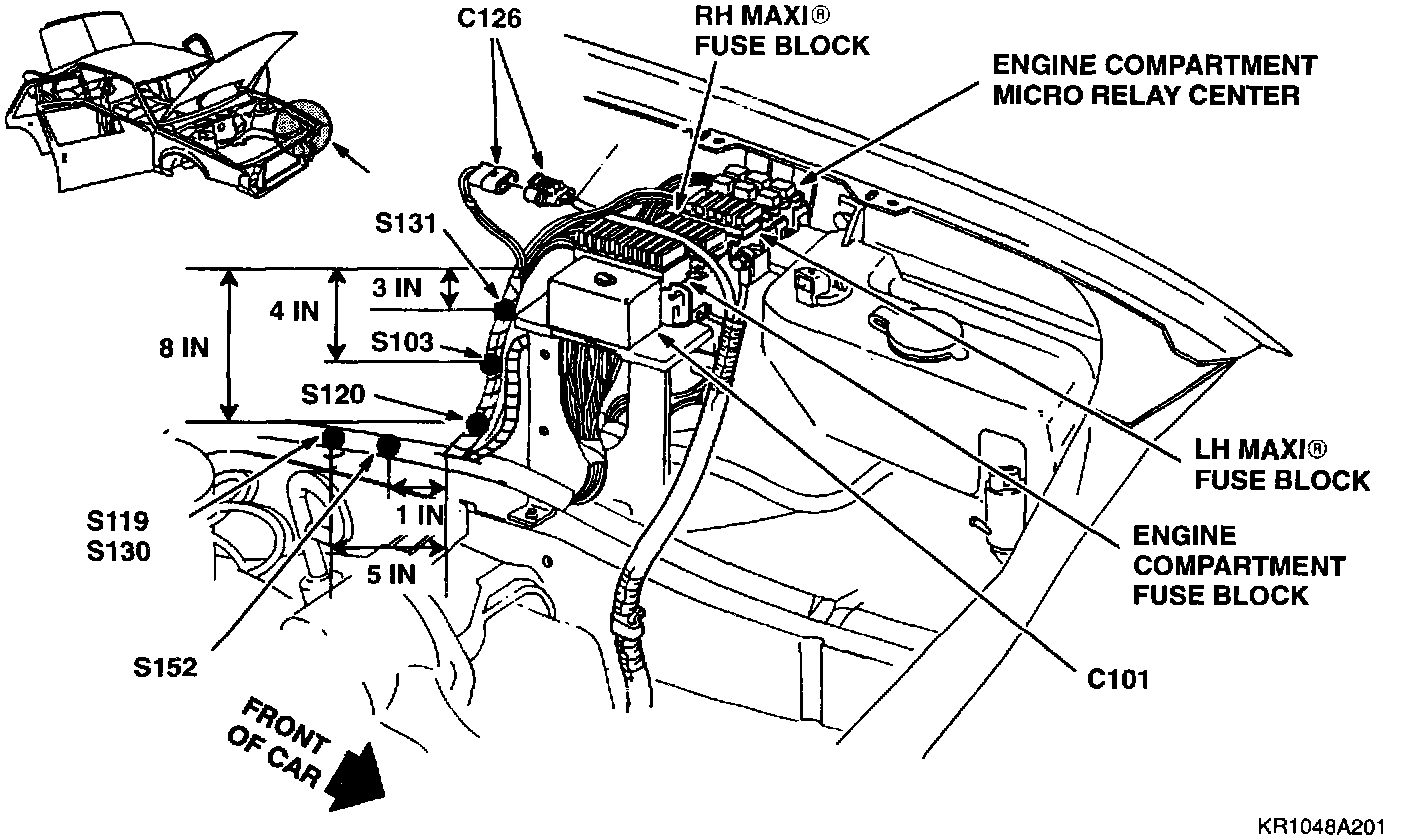

LH Front Of Engine Compartment:
