Terminal Identification

NOTE: To identify Electronic Brake Control Module (EBCM), Electronic Brake and Traction Control Module (EBTCM), Brake Pressure Modulator (BPM) valve and relay connector terminals, refer to illustration. See Fig 1 or Fig 2 .

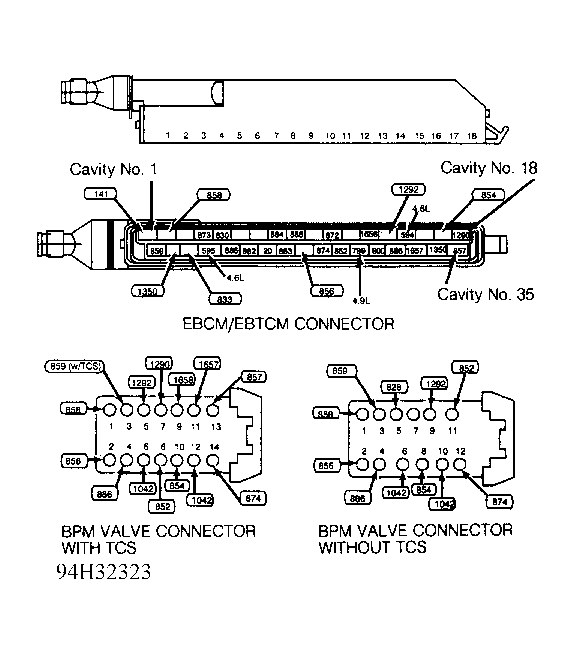

Fig 1: EBCM/EBTCM & Brake Pressure Modulator Valve Connector Terminals ID

Courtesy of GENERAL MOTORS CORP.

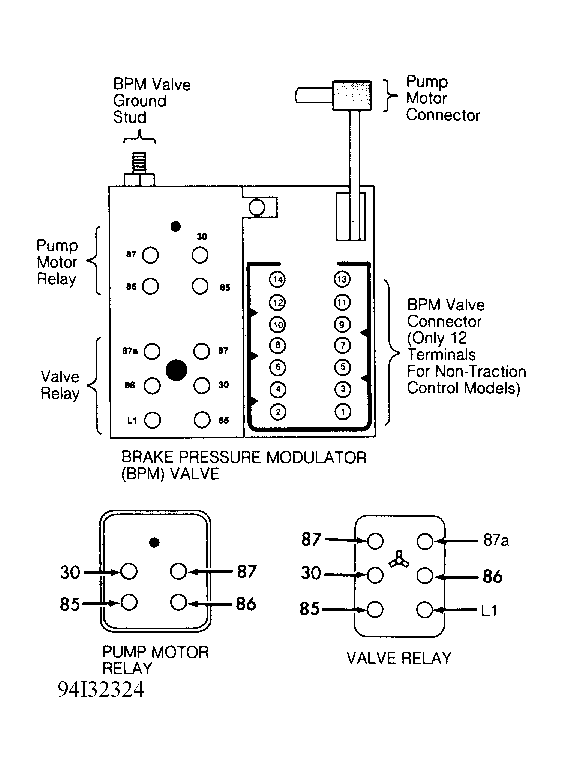

Fig 2: Brake Pressure Modulator Valve Assembly & Relay Connector Terminals ID

Courtesy of GENERAL MOTORS CORP.
