Note On Intermittents

If Code P020 is stored as history, disconnect oil pressure switch, start engine and allow to idle. Manipulate affected wiring and check relay for proper installation into socket. If fault is induced, engine will stall and Code P020 will set. If Code P020 sets without engine stall, cause is an intermittent open in circuit No. 120 between PCM terminal 3E13 and fuel pump relay terminal No. 3.

If fuel pump circuit is grounded, fuse will blow and Code P020 will set. Replace fuse, start engine and allow to idle. Manipulate affected wiring and connectors. If fault occurs, fuse will blow and engine will stall.

Fig 1: Code P020 Schematic, Open Fuel Pump Circuit

Courtesy of GENERAL MOTORS CORP.

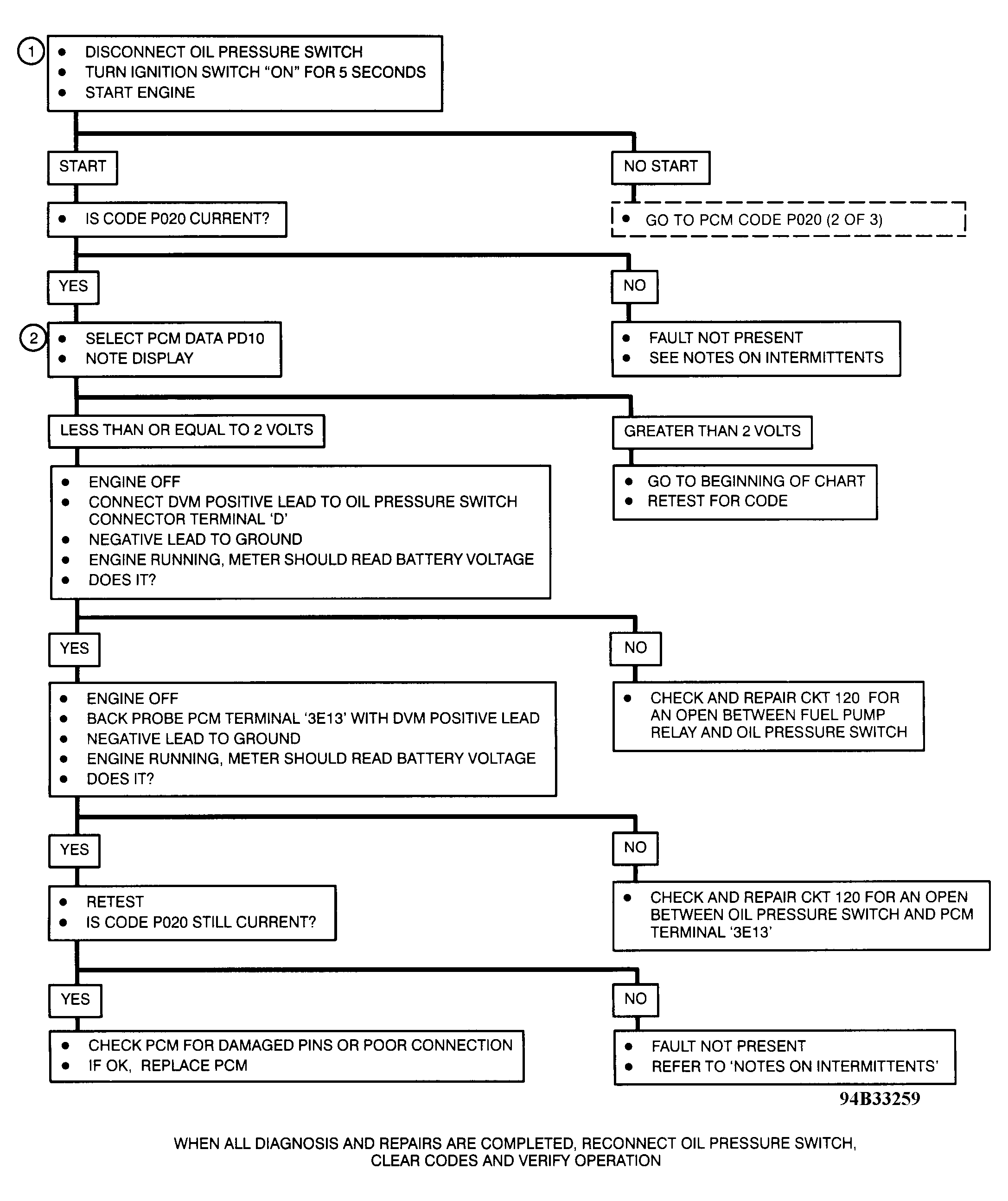

Fig 2: Code P020 Diagnostic Flow Chart - 1 Of 3, Open Fuel Pump Ckt.

Courtesy of GENERAL MOTORS CORP.

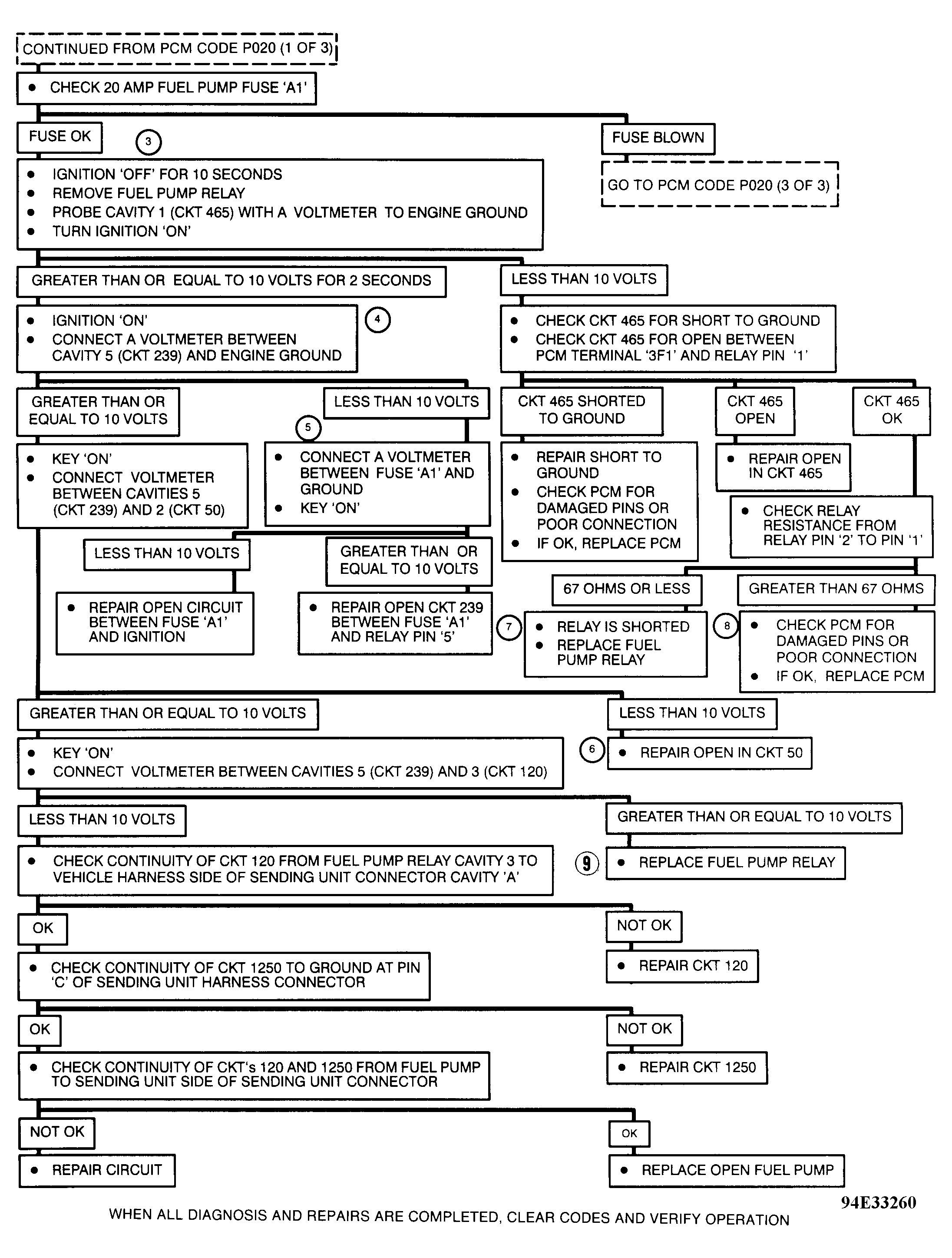

Fig 3: Code P020 Diagnostic Flow Chart - 2 Of 3, Open Fuel Pump Ckt.

Courtesy of GENERAL MOTORS CORP.

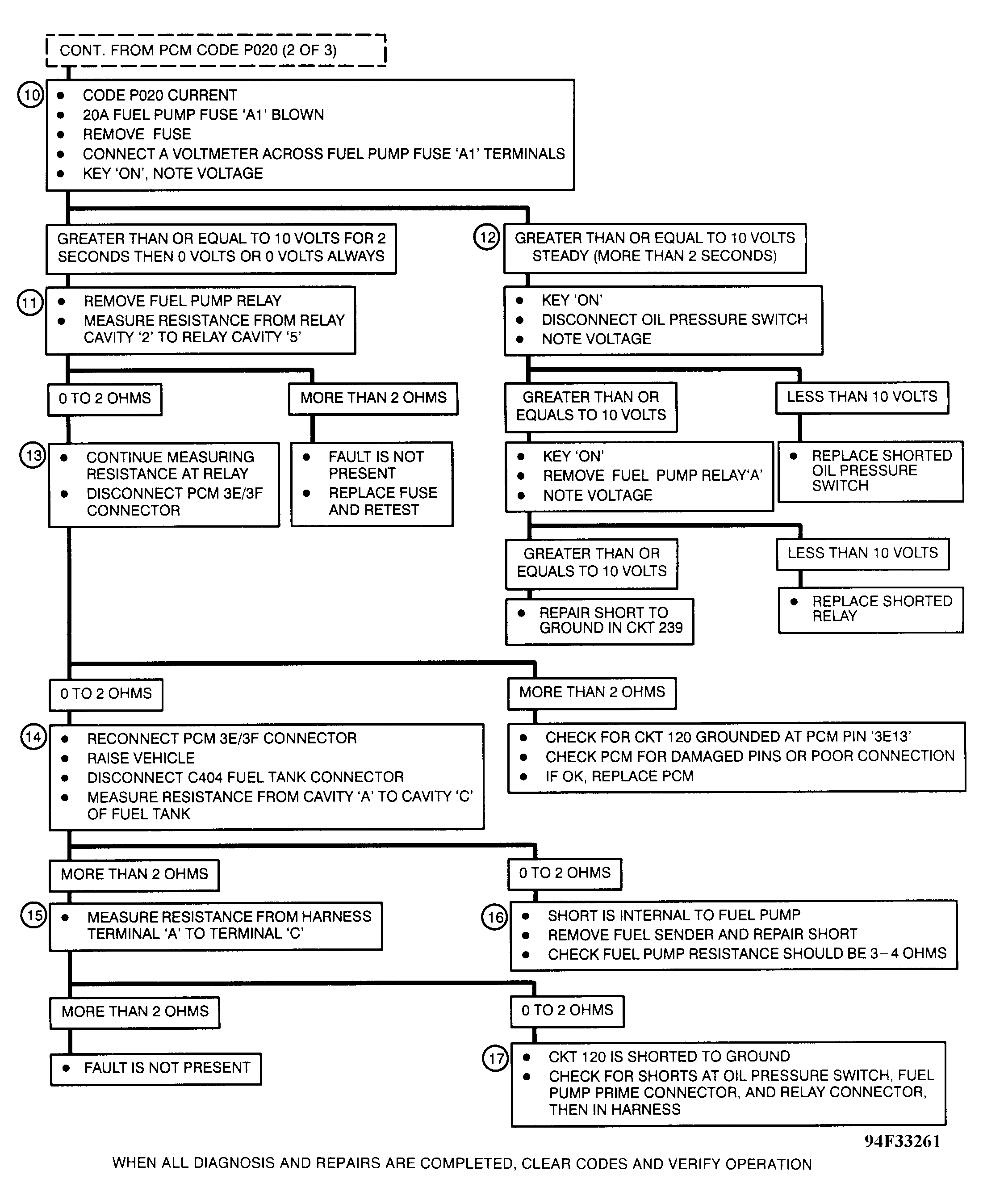

Fig 4: Code P020 Diagnostic Flow Chart - 3 Of 3, Open Fuel Pump Ckt.

Courtesy of GENERAL MOTORS CORP.
