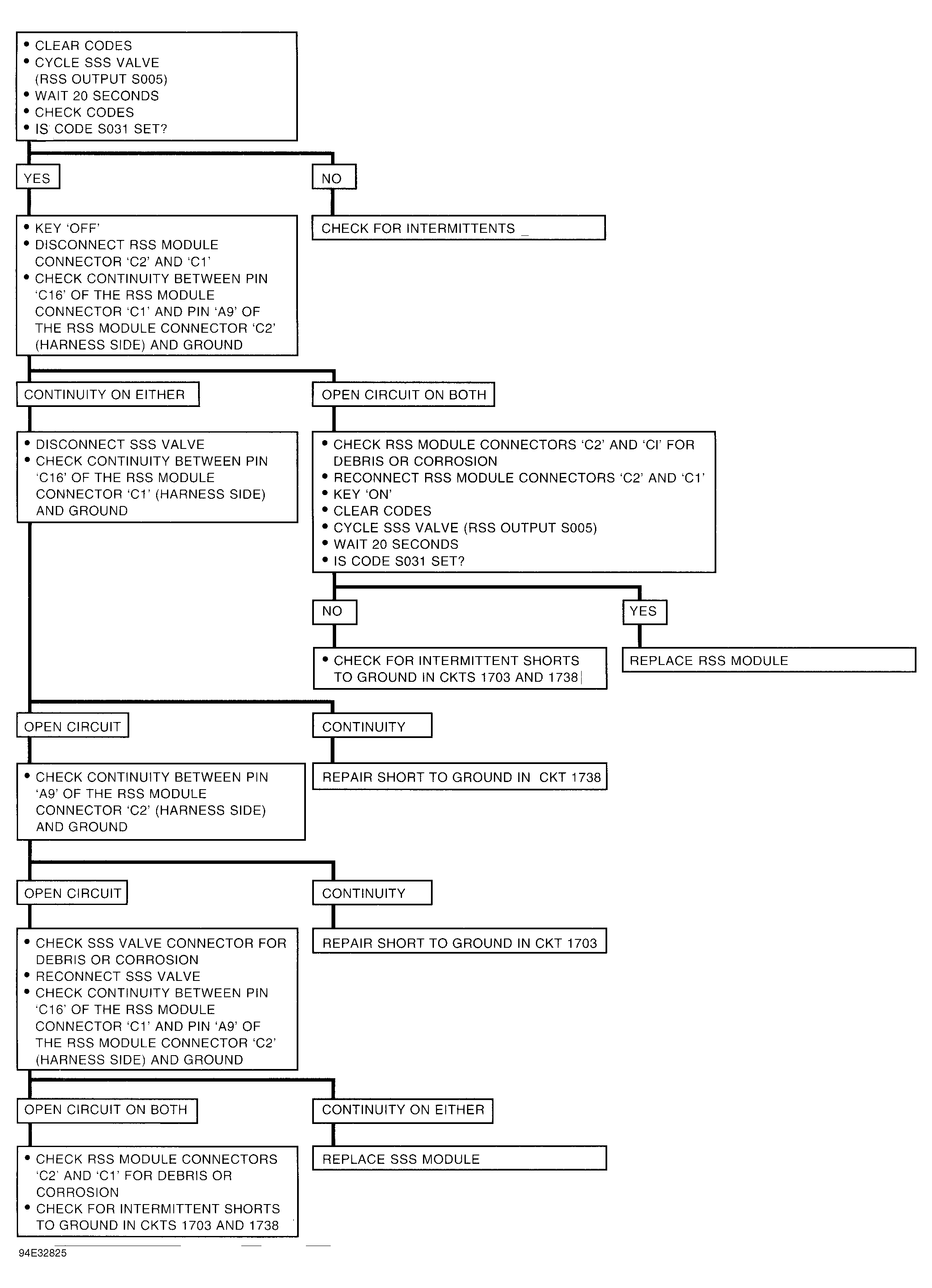

Notes On Flow Chart
Circled numbers in flow chart correspond to the following numbers:
1) See NOTES ON INTERMITTENTS under TESTING.
2) Replace steering system fluid filter whenever the SSS steering assist solenoid valve is replaced.
CAUTION:
DO NOT
backprobe connector terminals at position sensors or dampers.
NOTE:
After repairs, clear codes and verify system operation.
