Diagnostic Aids

If an injector is disconnected and then reconnected while engine is running, injector driver is disabled for a predetermined time and Code 18 will set. When driver is disabled, an engine misfire will be evident.

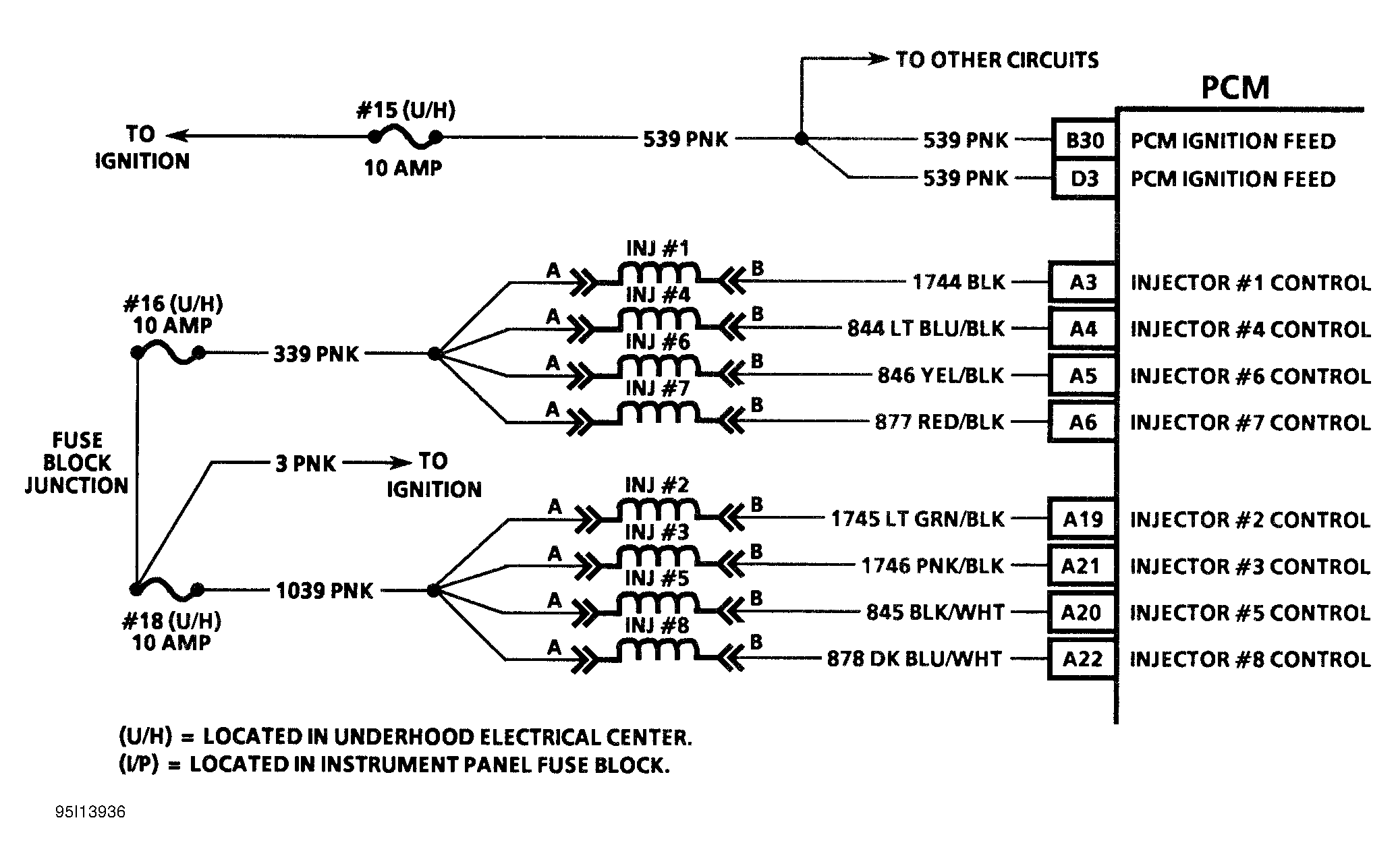

Fig 1: Code 18 Schematic (Fleetwood) Injector Circuit

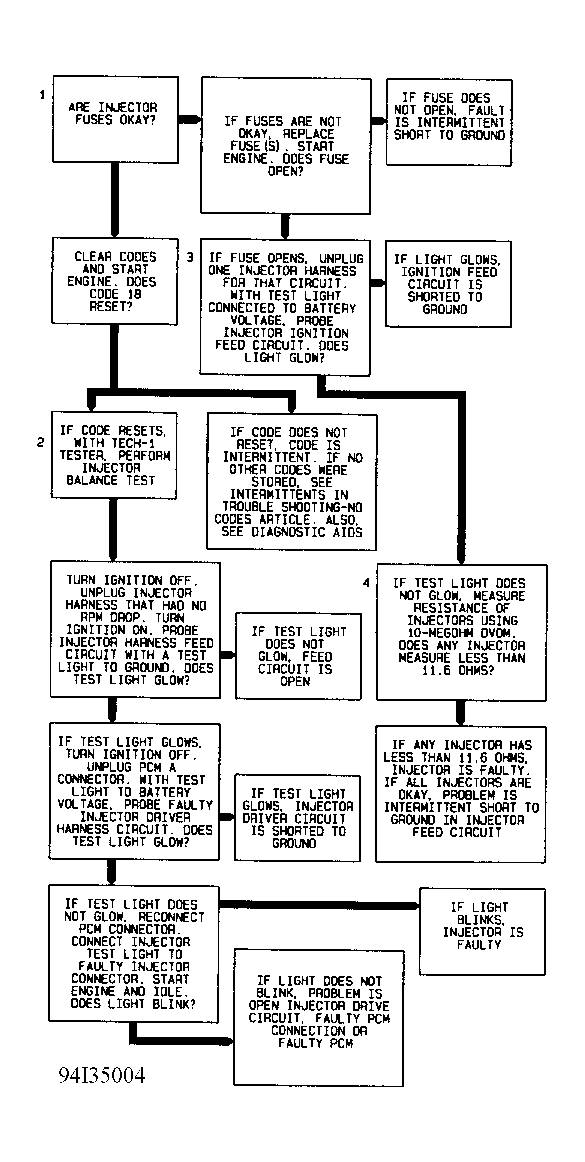

Fig 2: Code 18 Diagnostic Flow Chart (Fleetwood) Injector Circuit
