Diagnostic Aids

Check all connections at the transmission. An open in ignition feed circuit can cause multiple codes to set.

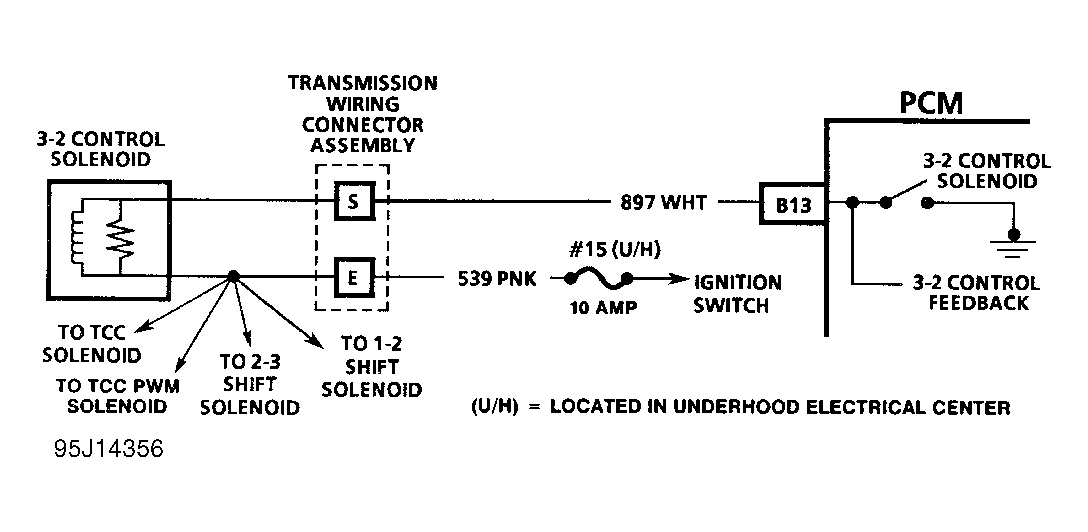

Fig 1: Code 84 Schematic (Fleetwood With A/T) 3-2 Control Solenoid

Fig 2: Code 84 Diagnostic Flow Chart (Fleetwood With A/T) 3-2 Control Solenoid
