Pinout Description

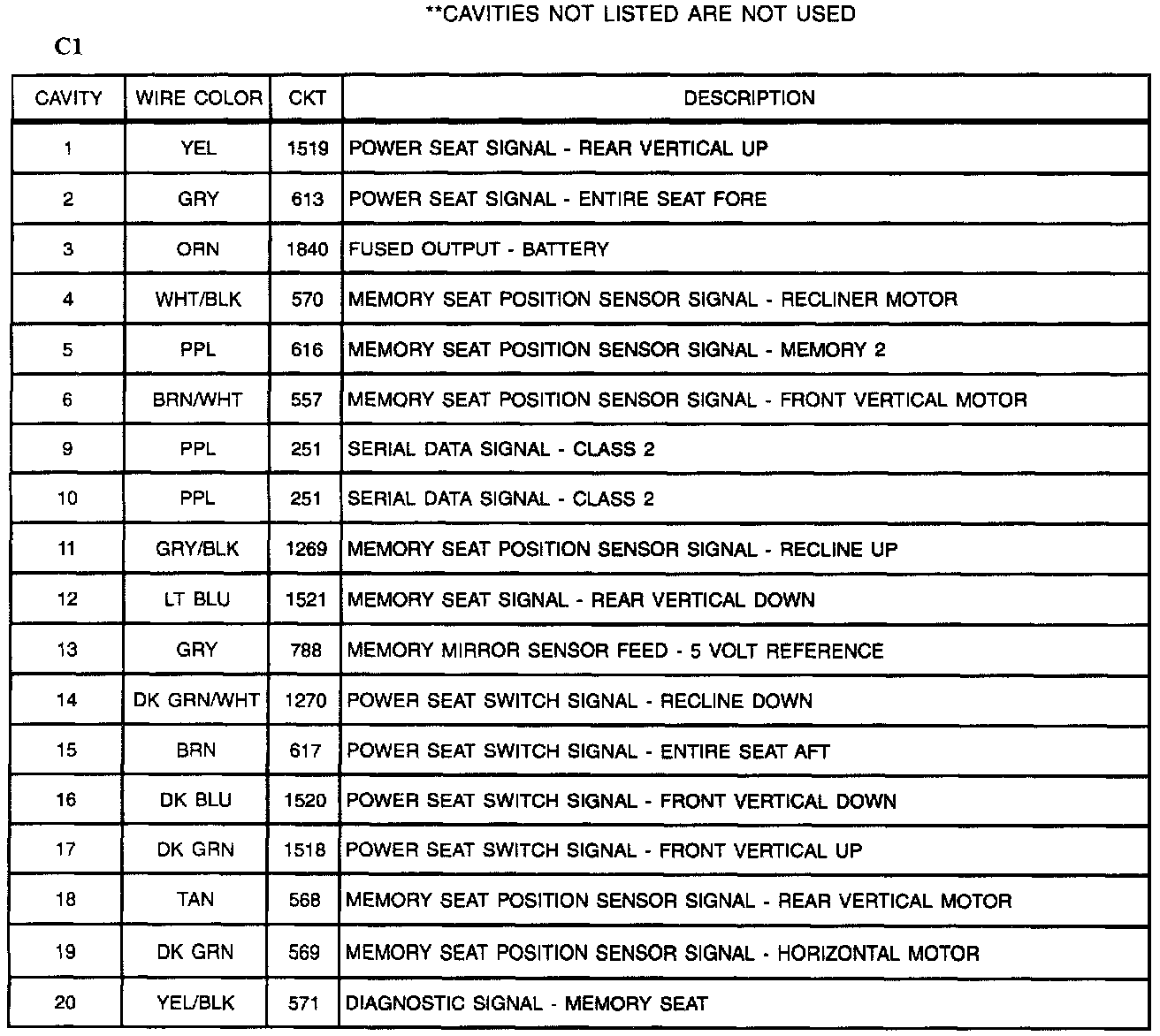

Memory Seat Module C1 (AG7) (Part 1 Of 2):
Memory Seat Module C1 (AG7) (Part 2 Of 2):
