Automatic Level Control Sensor

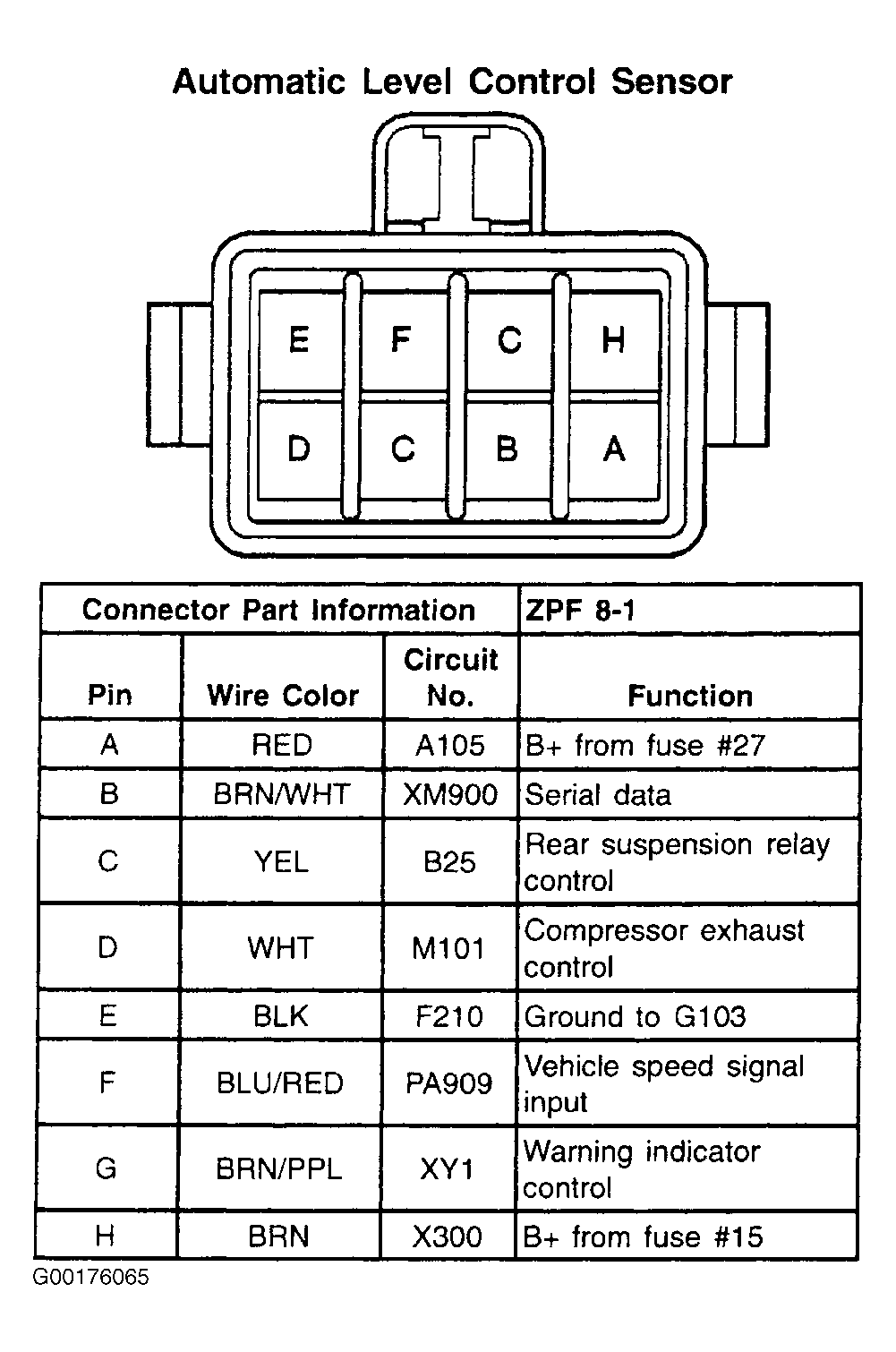

Fig 1: Automatic Level Control Sensor - 8-Pin Connector
G00176065Courtesy of GENERAL MOTORS CORP.
