Rear Suspension Leveling Air Compressor Relay K19

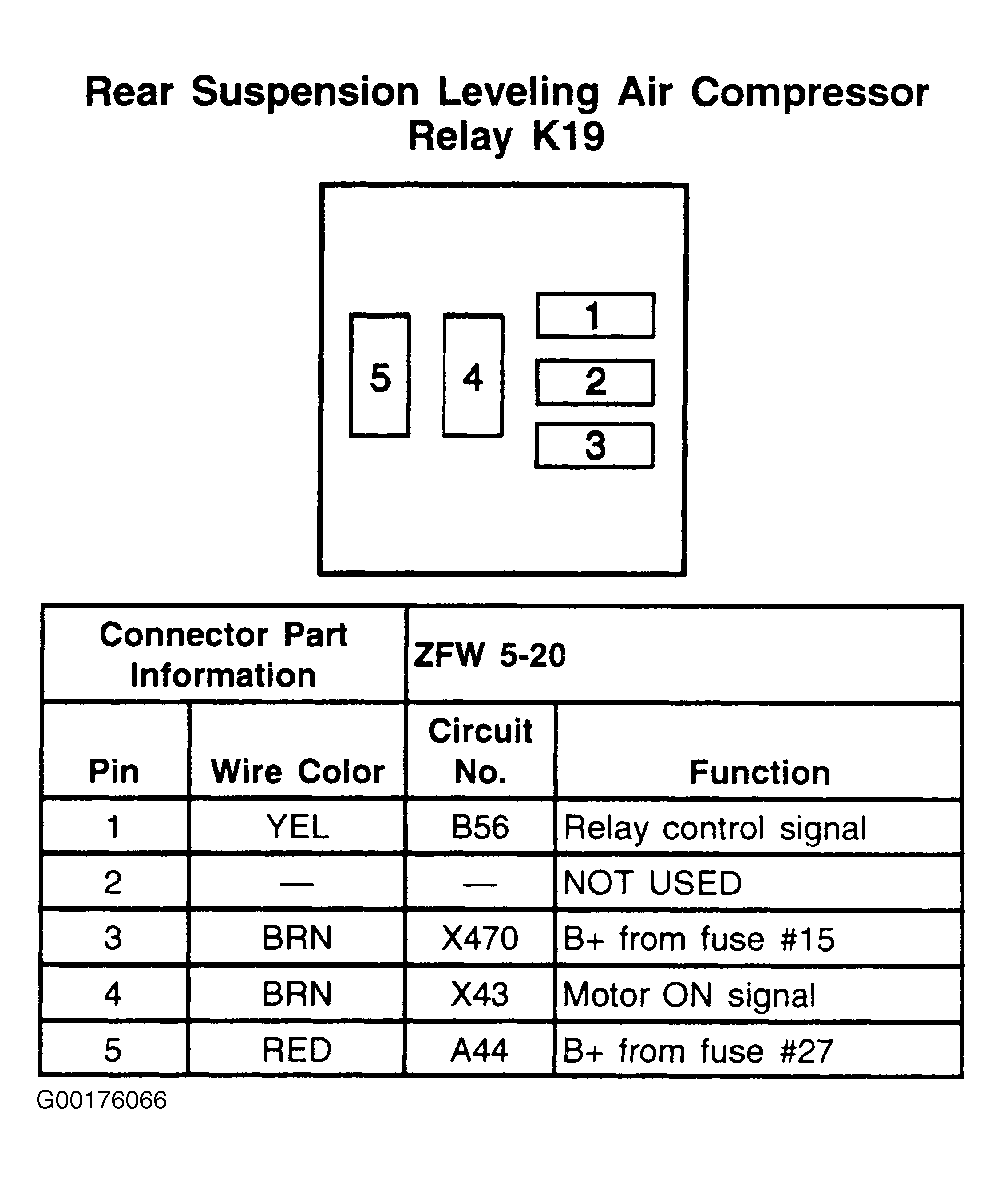

Fig 1: Rear Suspension Leveling Air Compressor Relay K19 - 5-Pin Connector
G00176066Courtesy of GENERAL MOTORS CORP.
