Body Control Module (BCM) Connector C1

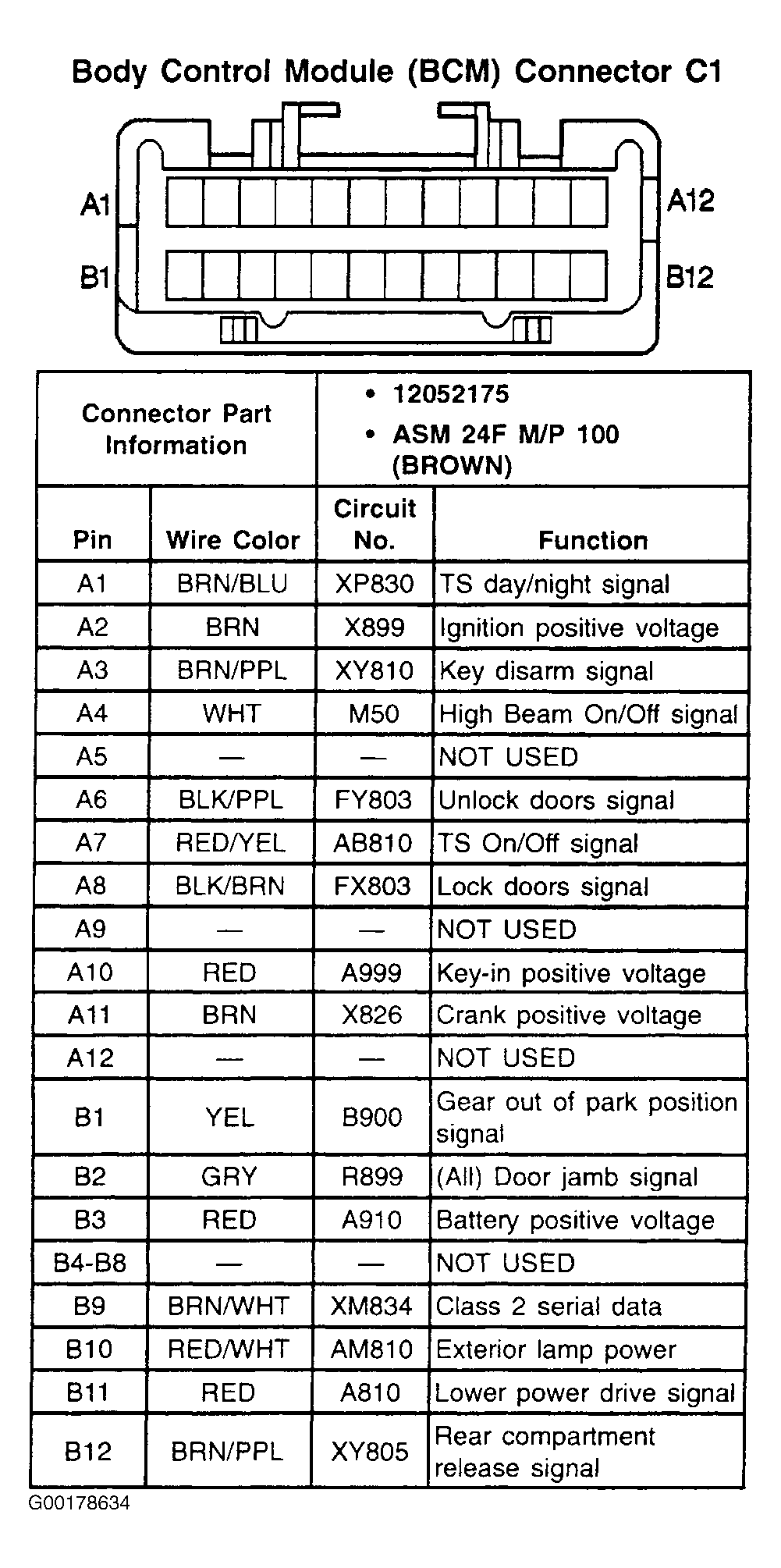

Fig 1: Body Control Module (BCM) Connector C1 - 24-Pin Connector (Brown)
