Door Lock Relay K35

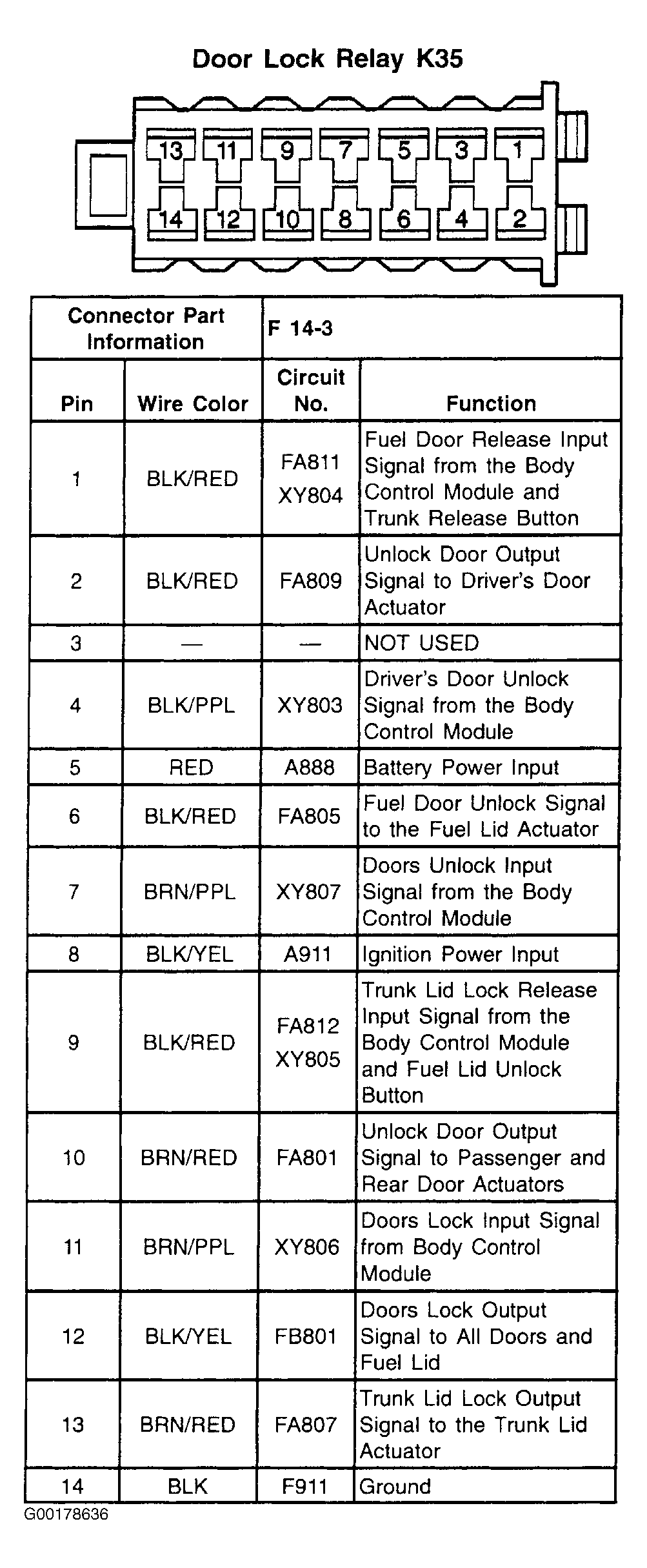

Fig 1: Door Lock Relay K35 - 14-Pin Connector
G00178636Courtesy of GENERAL MOTORS CORP.
