Cellular Telephone (Base System)

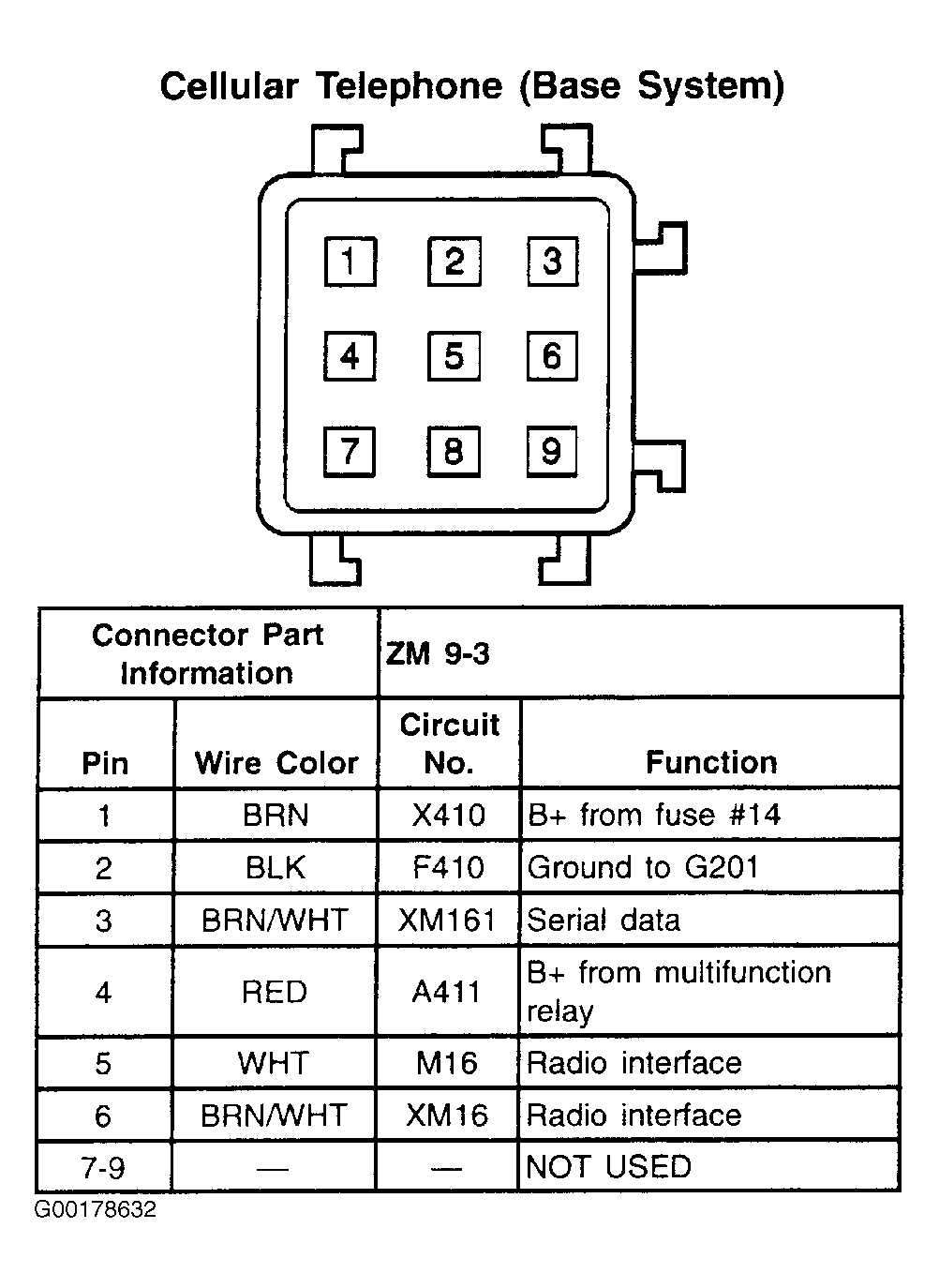

Fig 1: Cellular Telephone (Base System) - 9-Pin Connector
G00178632Courtesy of GENERAL MOTORS CORP.
