Engine Coolant Temperature (ECT) Sensor

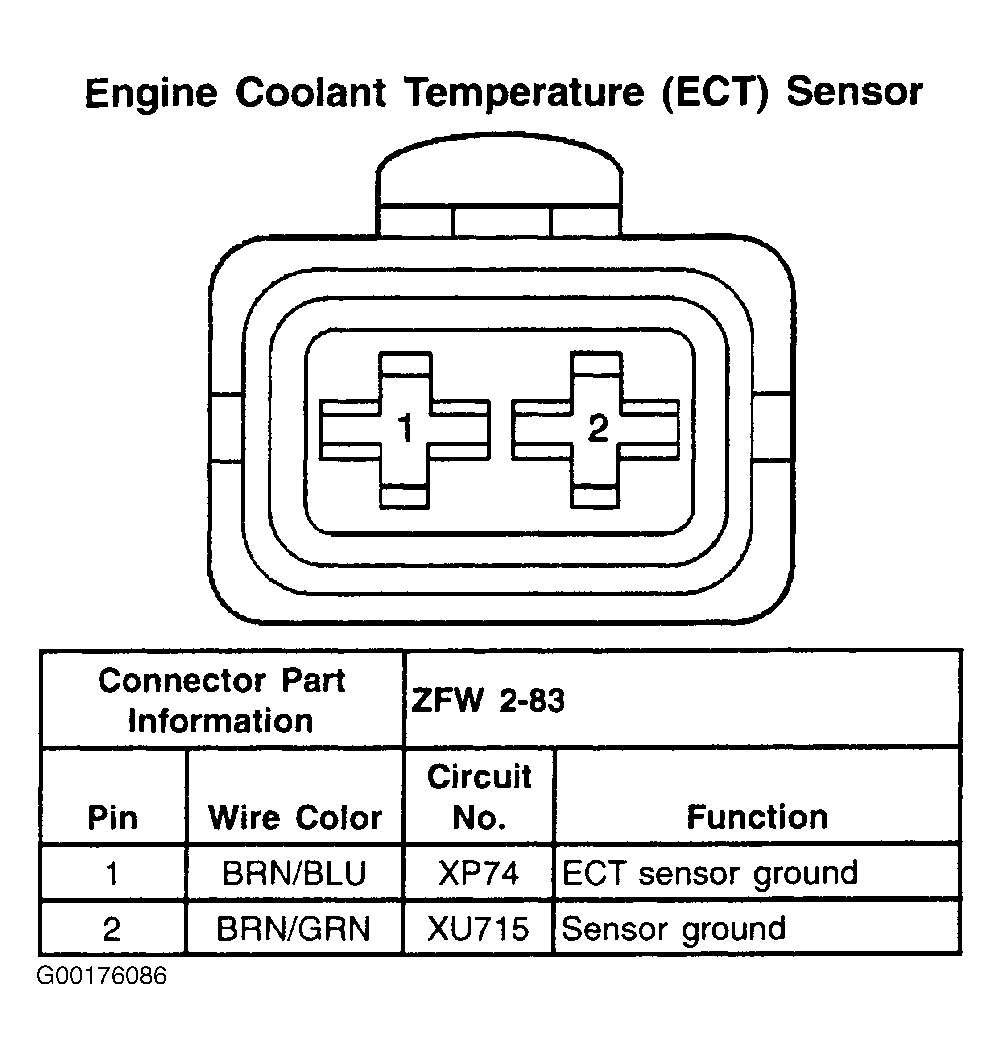

Fig 1: Engine Coolant Temperature (ECT) Sensor - 2-Pin Connector
G00176086Courtesy of GENERAL MOTORS CORP.
