Evaporative (EVAP) Tank Solenoid Valve

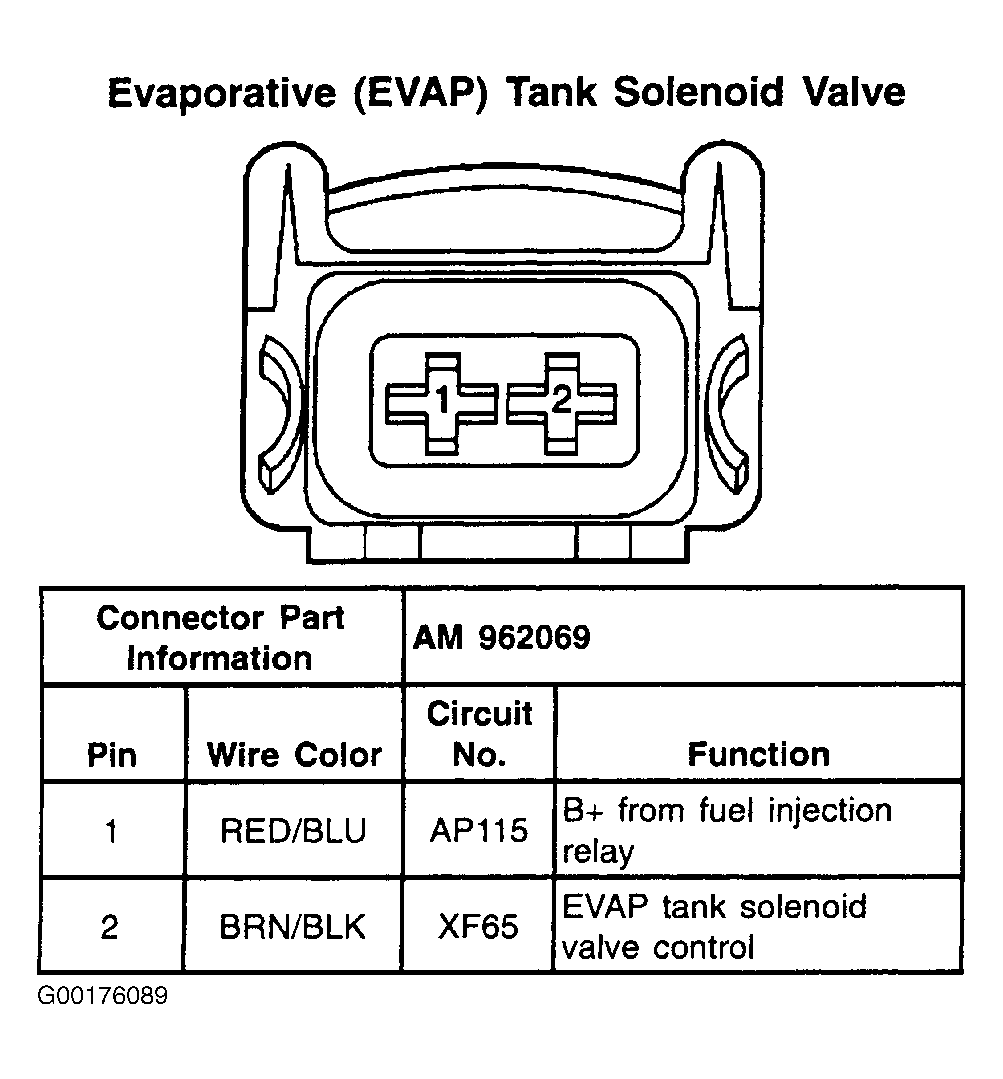

Fig 1: Evaporative (EVAP) Tank Solenoid Valve - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
