Fuel Pump Relay K44

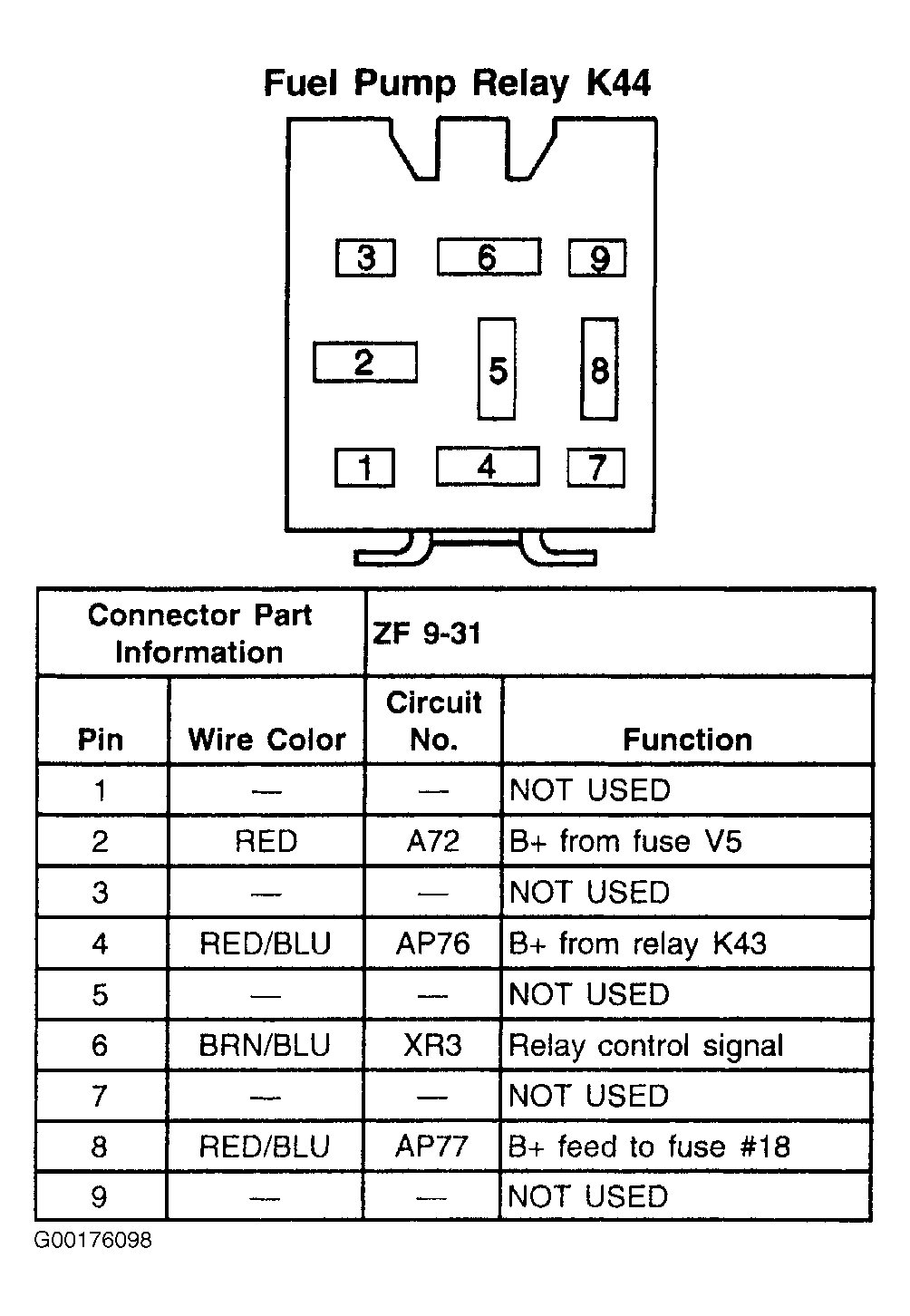

Fig 1: Fuel Pump Relay K44 - 9-Pin Connector
G00176098Courtesy of GENERAL MOTORS CORP.
