Compact Disk Changer (BOSE System)

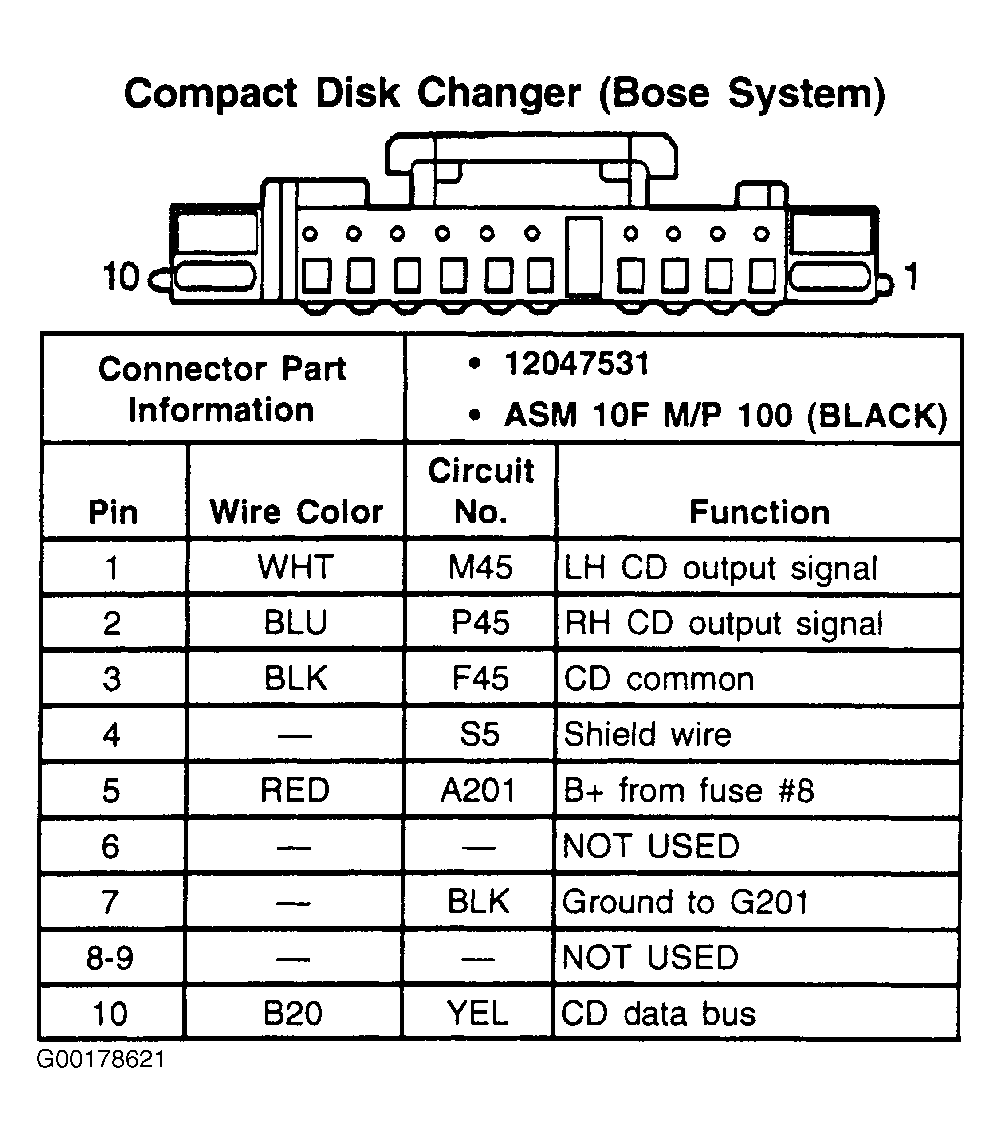

Fig 1: Compact Disk Changer (Bose System) - 10-Pin Connector (Black)
G00178621Courtesy of GENERAL MOTORS CORP.
