A/C Compressor Clutch Coil

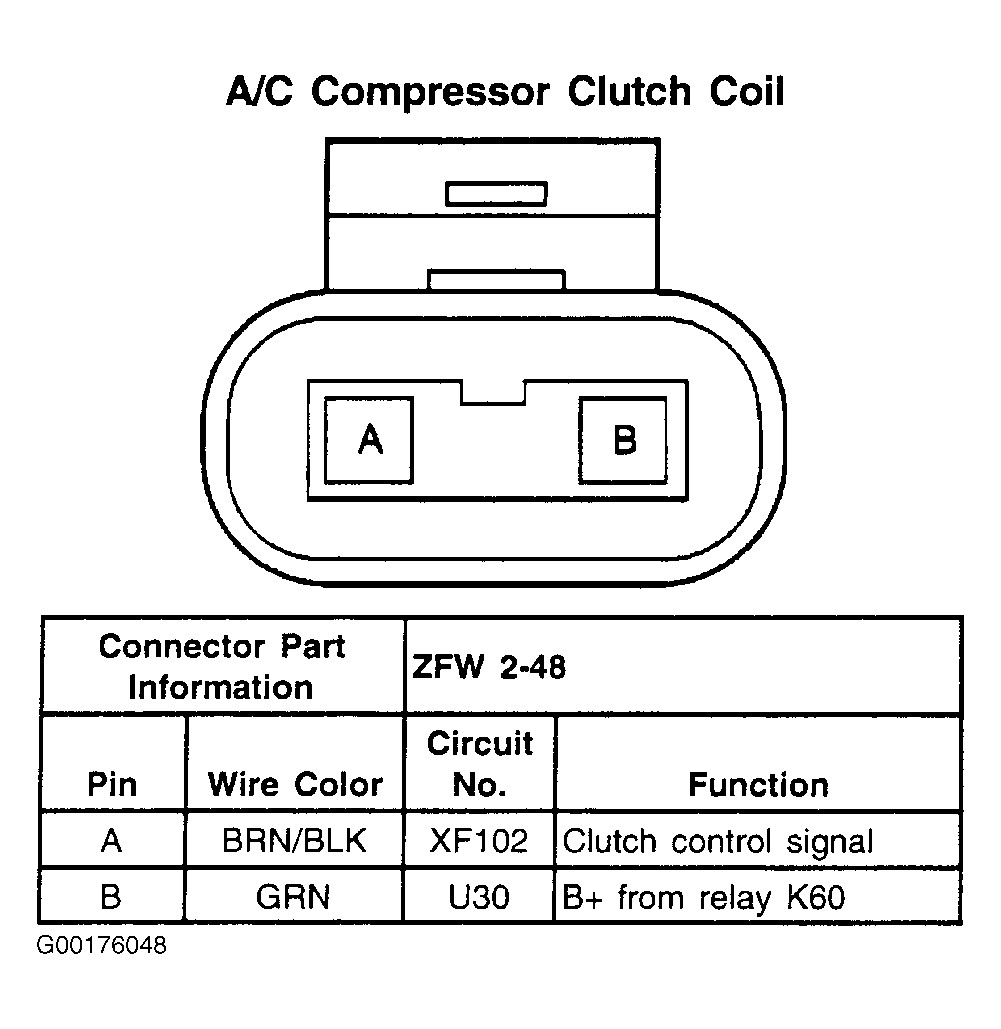

Fig 1: A/C Compressor Clutch Coil - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
