Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Lighting Systems >> Backup Lamp (Right Hand)
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.

Backup Lamp (Right Hand)

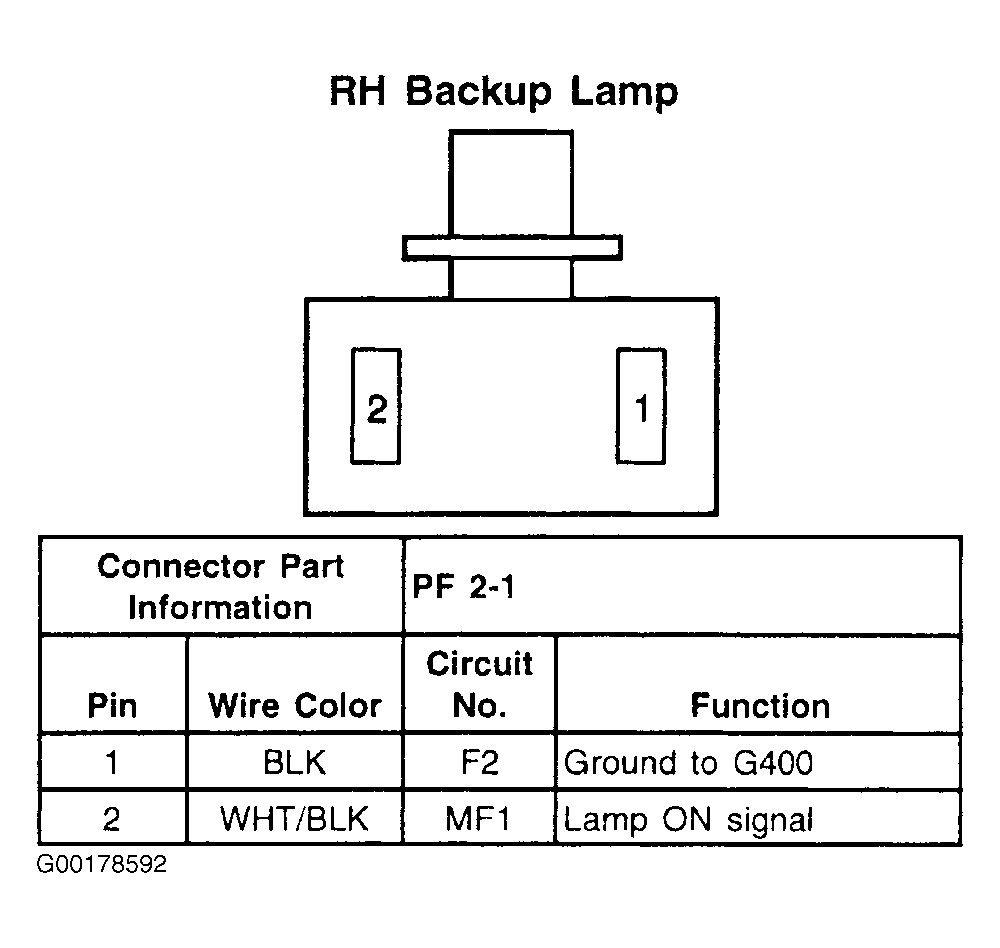

Fig 1: Backup Lamp (Right Hand) - 2-Pin Connector
G00178592Courtesy of GENERAL MOTORS CORP.
