Windshield Wiper Motor

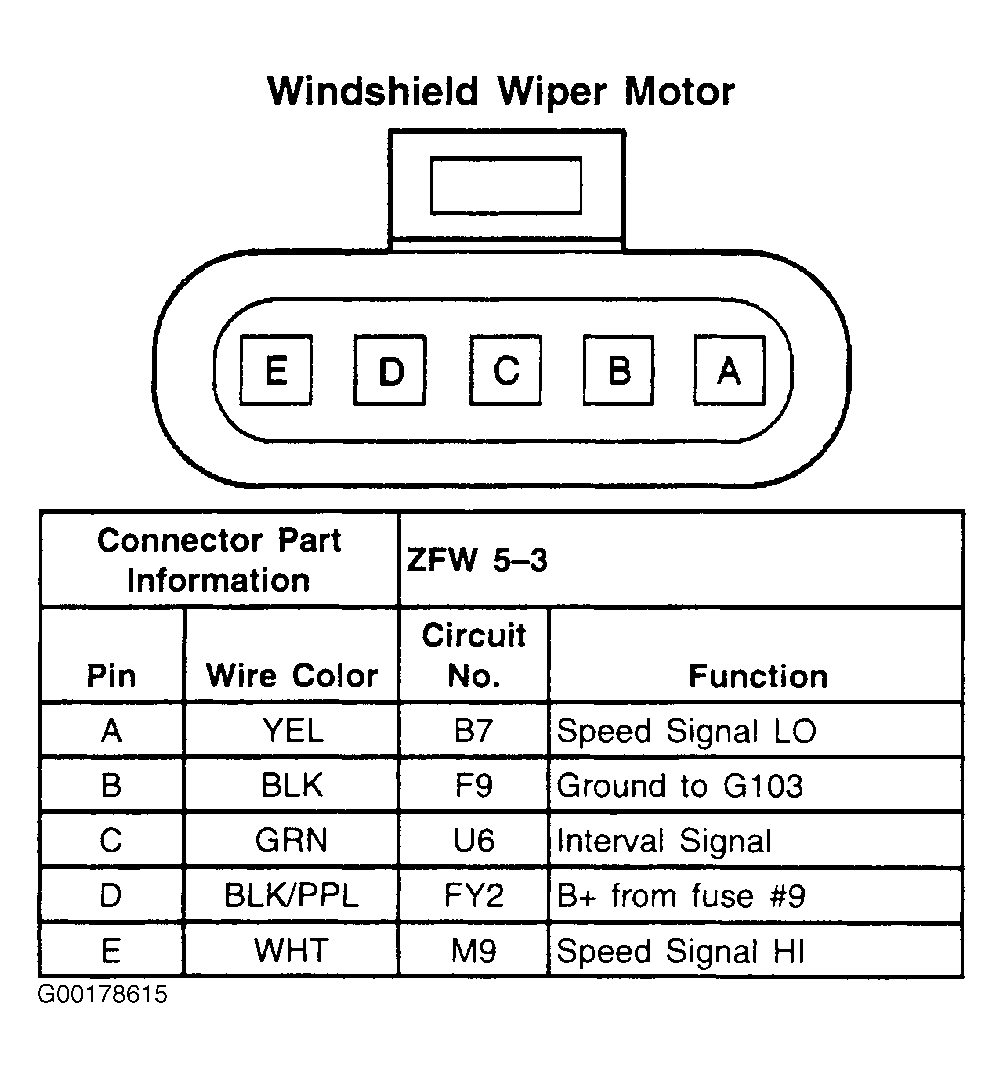

Fig 1: Windshield Wiper Motor - 5-Pin Connector

Courtesy of GENERAL MOTORS CORP.
