Heater & A/C Programmer - C1

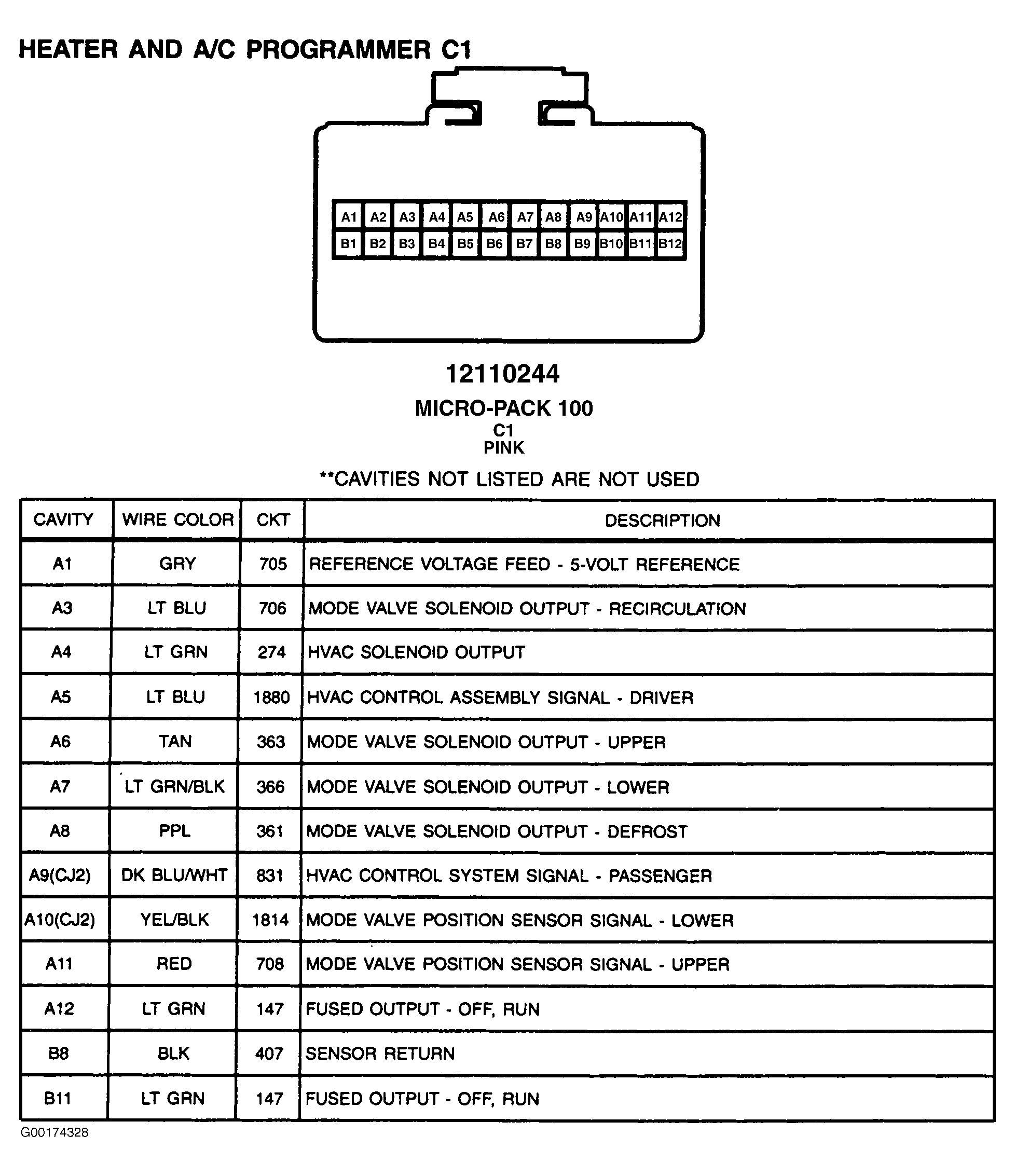

Fig 1: Heater & A/C Programmer C1 - 24-Pin Connector (Pink)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
