Heater & A/C Programmer - C2

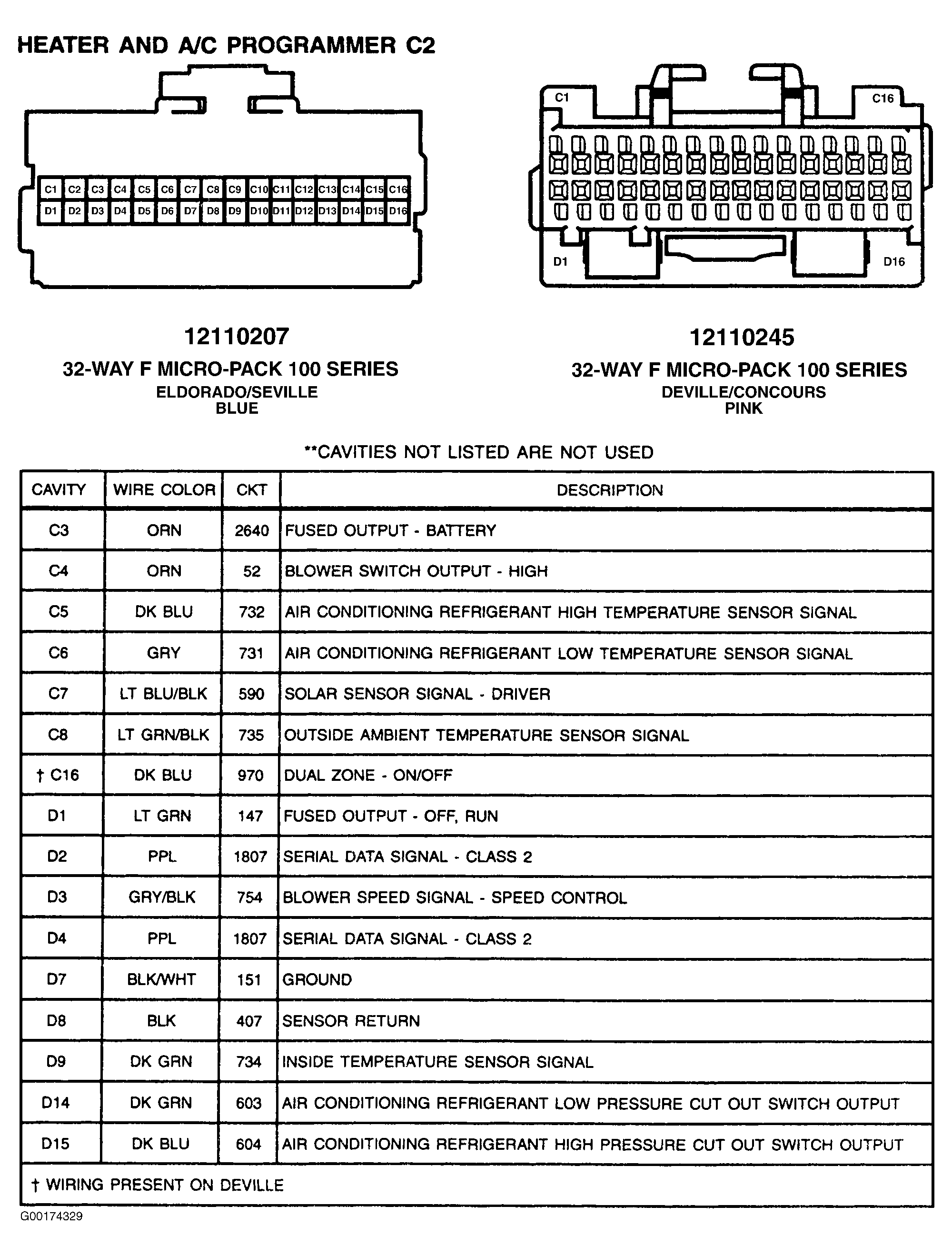

Fig 1: Heater & A/C Programmer C2 - 32-Pin Connector - Eldorado/Seville (Blue), DeVille/Concours (Pink)
G00174329Courtesy of GENERAL MOTORS CORP.
