Steering Wheel Position Sensor (ELDORADO/SEVILLE)

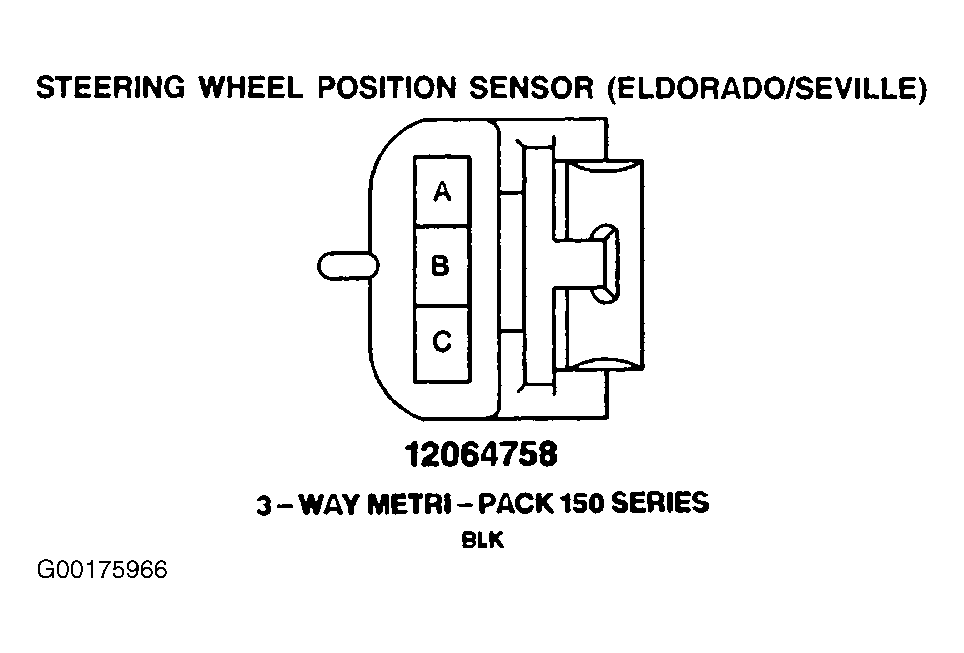

Fig 1: Steering Wheel Position Sensor (Eldorado/Seville) - 3-Pin Connector (Black)
G00175966Courtesy of GENERAL MOTORS CORP.
