Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
PNP Switch Mounting Bolts 18 (24)
INCH Lbs. (N.m)
Oil Pan Bolts (1)
(1) Tighten oil pan bolts in 3 steps in sequence as shown. See Fig 1.

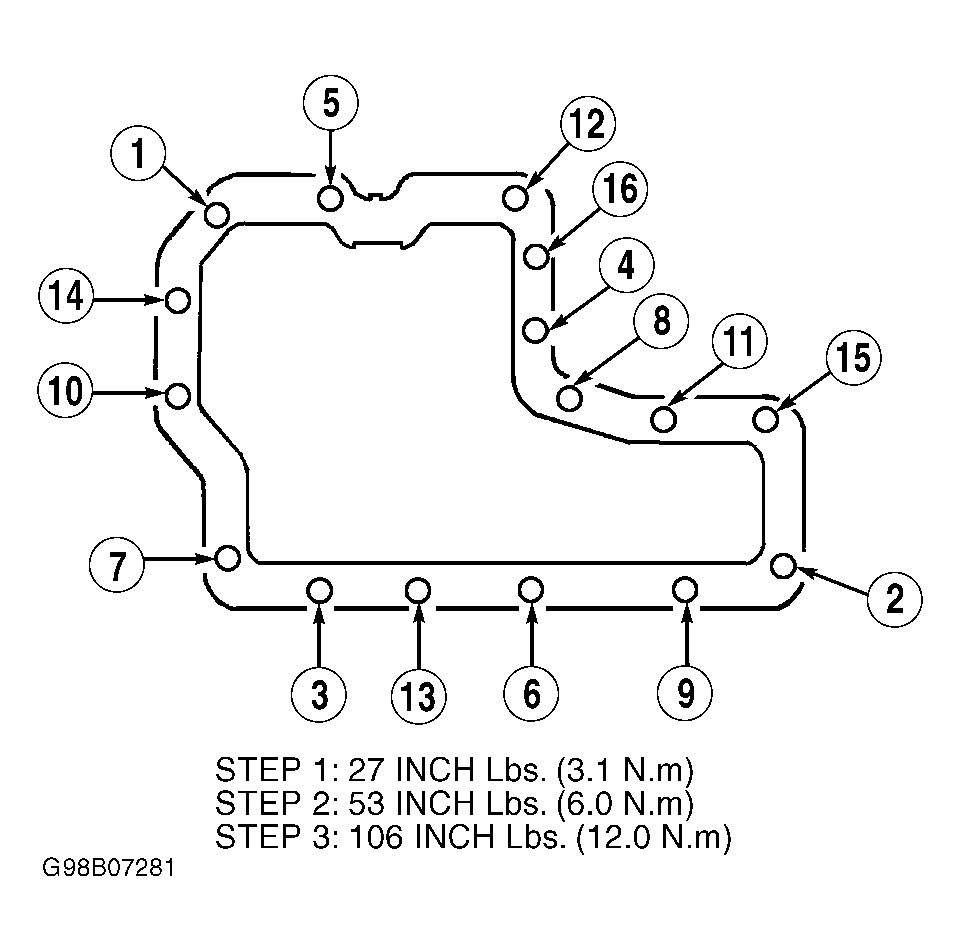

Fig 1: Oil Pan Bolt Tightening Sequence
G98B07281Courtesy of GENERAL MOTORS CORP.
