A45 With AL2

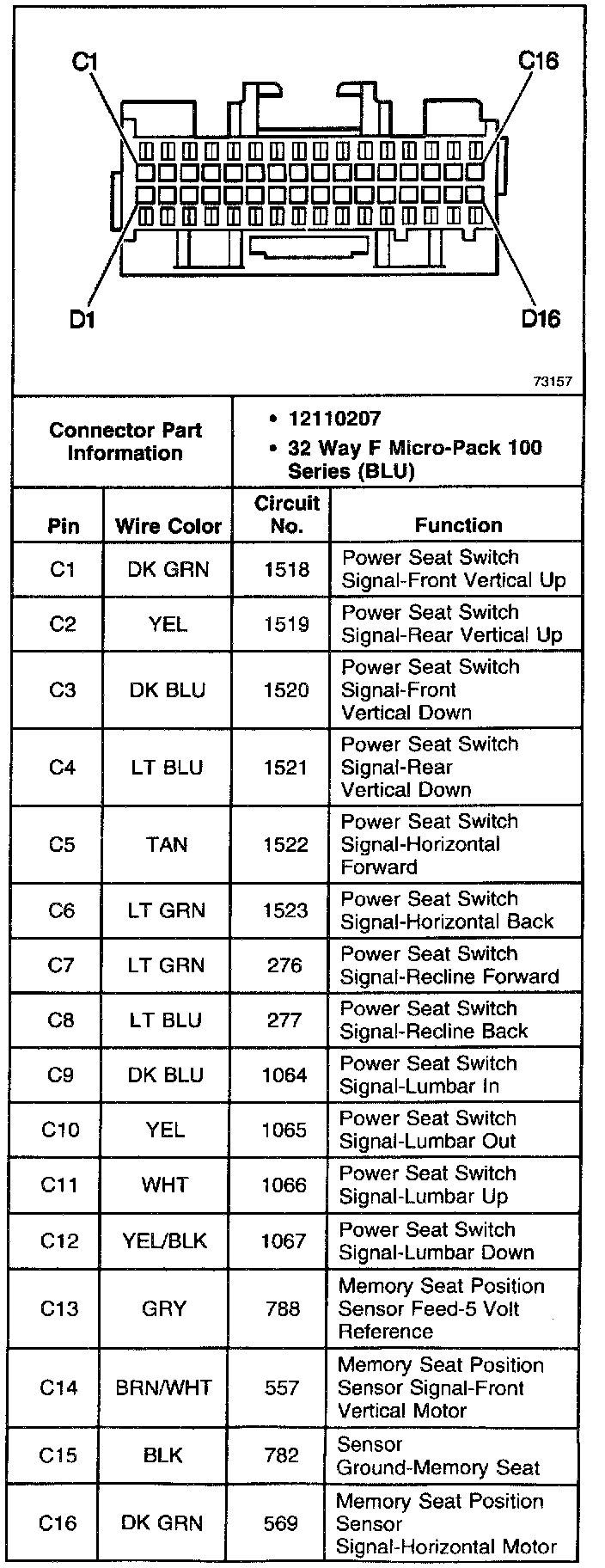

Memory Seat Module (MSM) (A45 With AL2): C2 (Part 1 Of 2):

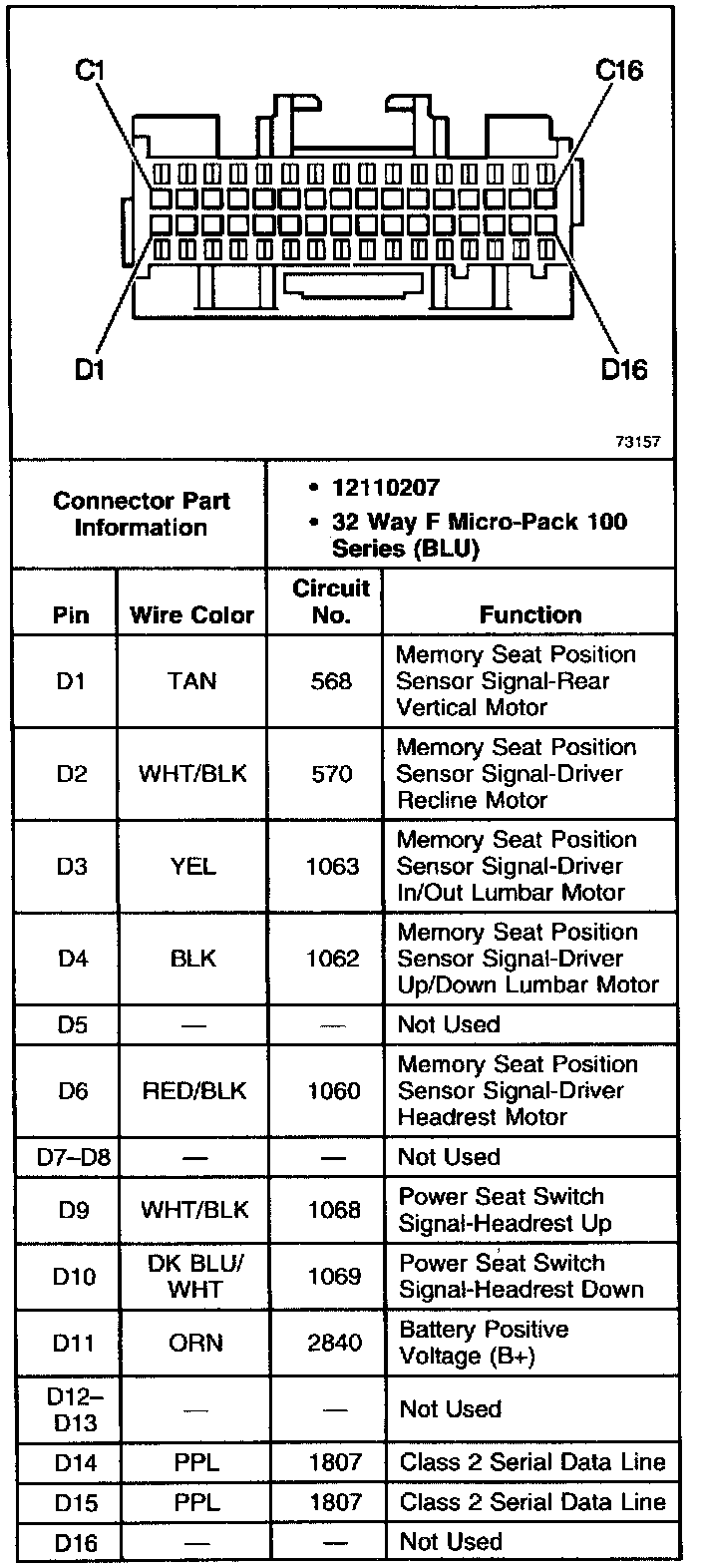

Memory Seat Module (MSM) (A45 with AL2): C2 (Part 2 of 2):
