Rear Junction Block

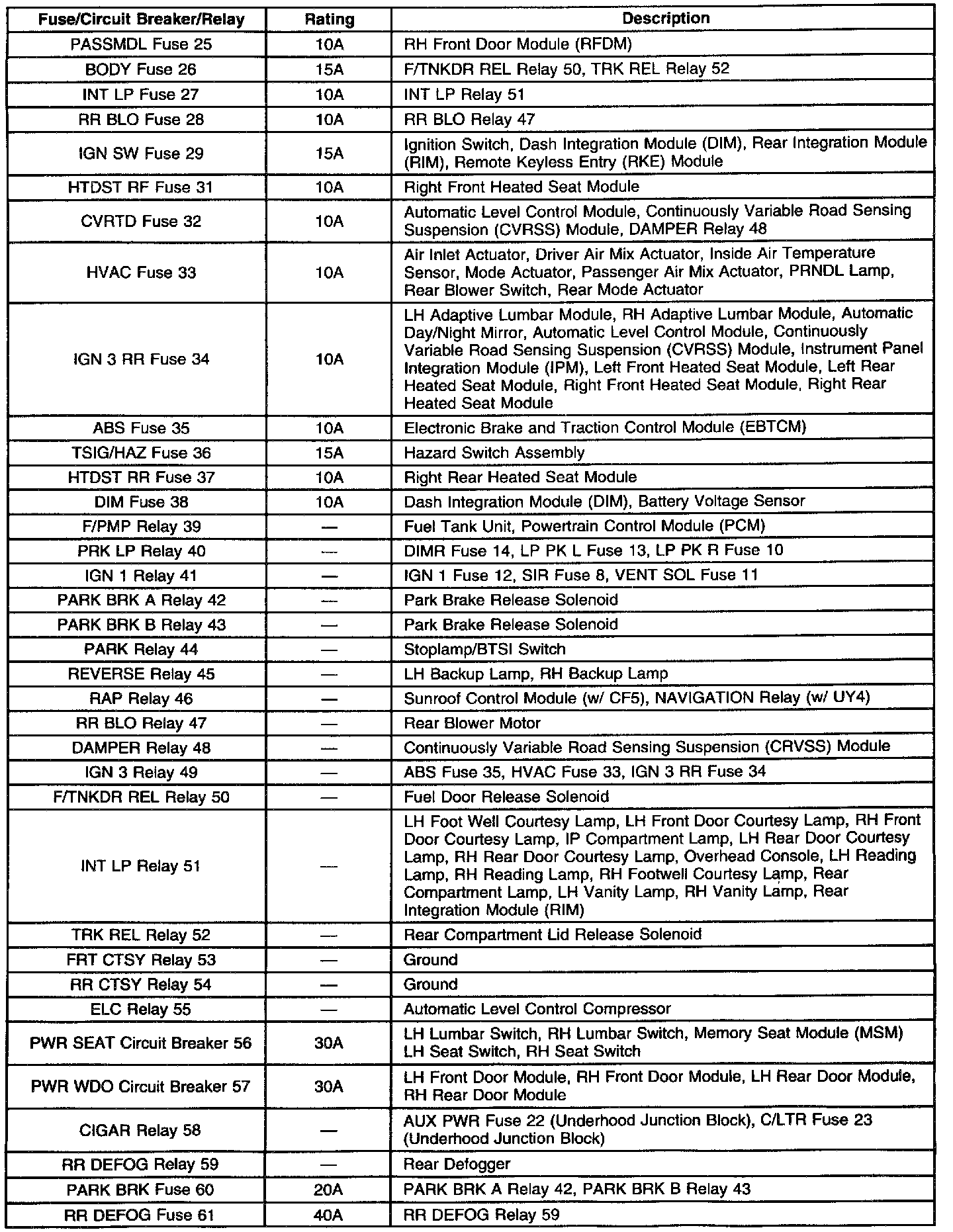

Rear Junction Block (Part 1 of 3):

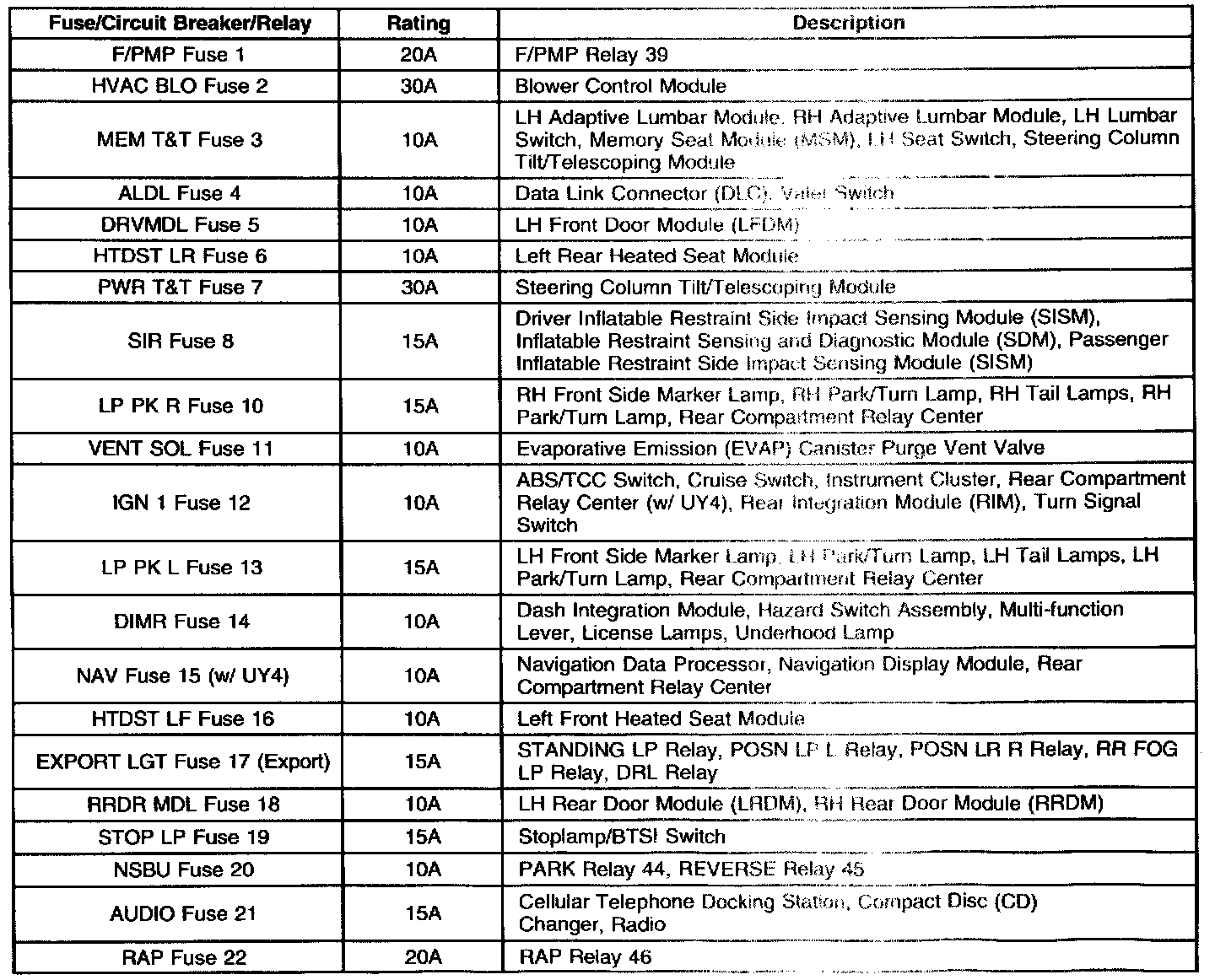

Rear Junction Block (Part 2 of 3):



Rear Junction Block (Part 3 of 3):
