Dimension & Clearance Specifications - Cylinder Block

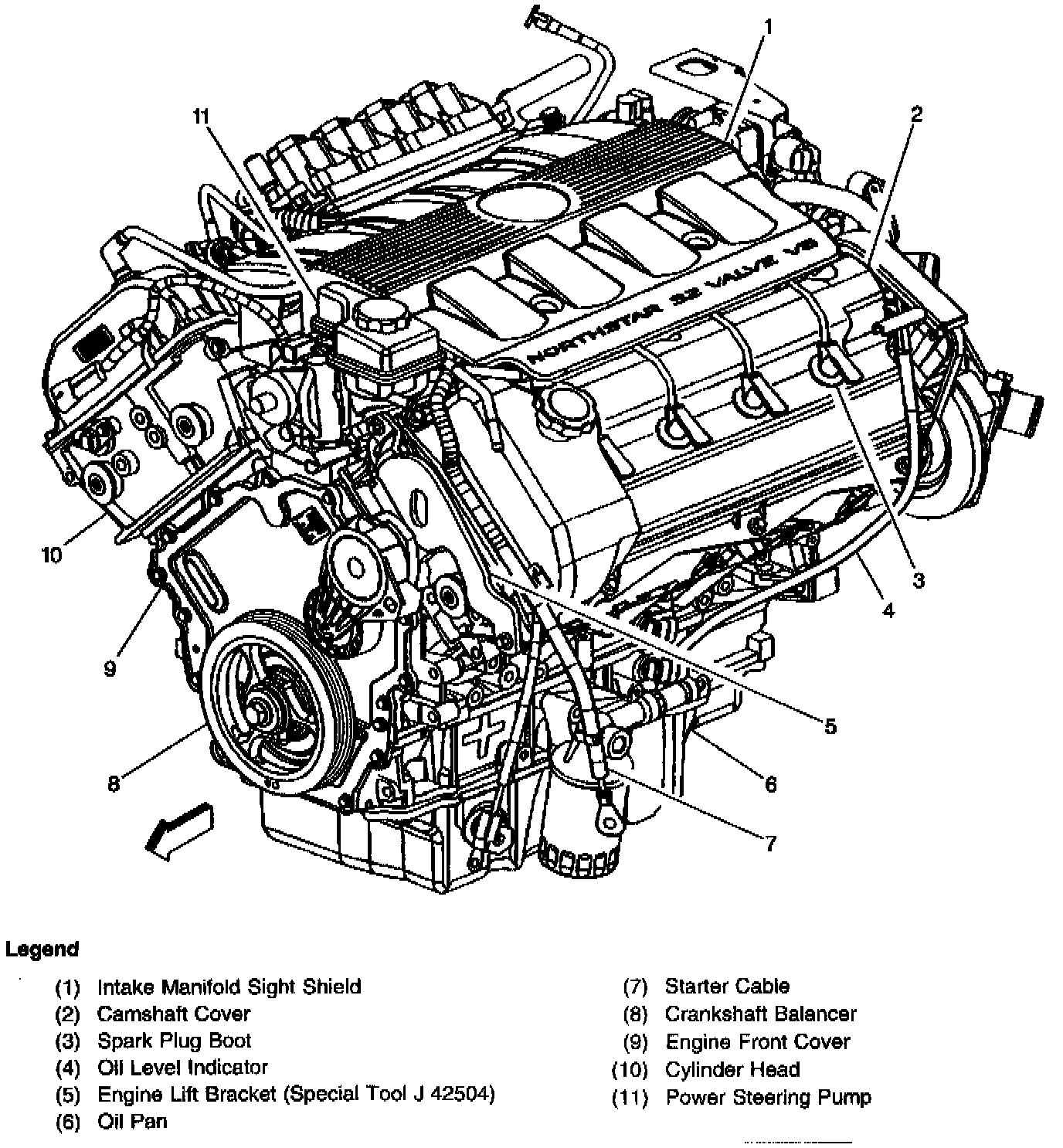

Dressed Engine:

Material Aluminum with Cast-in Grey Iron sleeves
Bore (1) 92.992-93.008 mm (3.424-3.425 in.)
Stroke 84 mm (3.31 in.)
Deck Height 224.55 mm (8.84 in.)
Deck Clearance 0.45 mm (0.18 in.) above deck surface
Length 528.45 mm (20.81 in.)
Piston Clearance (1) 0.020-0.051 mm (0.0008-0.0020 in.)
Deck Face Flatness-Maximum Allowed 0.101 mm (0.004 in.)
Cylinder Bore Out-of-Round-Maximum 1.200 mm (0.004 in.)
Cylinder Bore Taper-Maximum 0.100 mm (0.004 in.)

(1) Measured 41 mm (1.614 in) below deck surface
