Transmission Control Module (TCM)

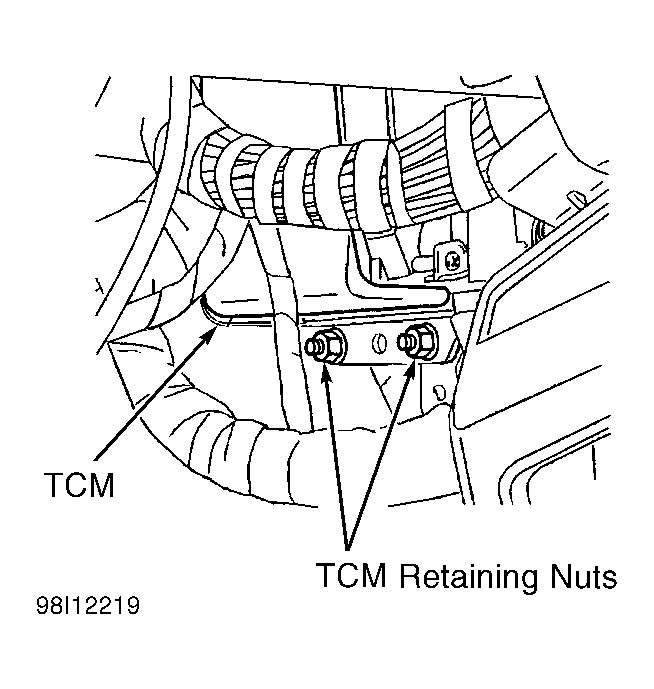

Remove passenger side hush panel and passenger floor outlet retainers. Remove floor outlet and rotate outlet side rearward. Remove TCM retaining nuts. See Figure . Remove TCM. To install, reverse removal procedure.
