Test J: Remote Keyless Entry System Does Not Change Customization Modes

For test procedure, refer to illustrations. See Figure and Fig 1 .

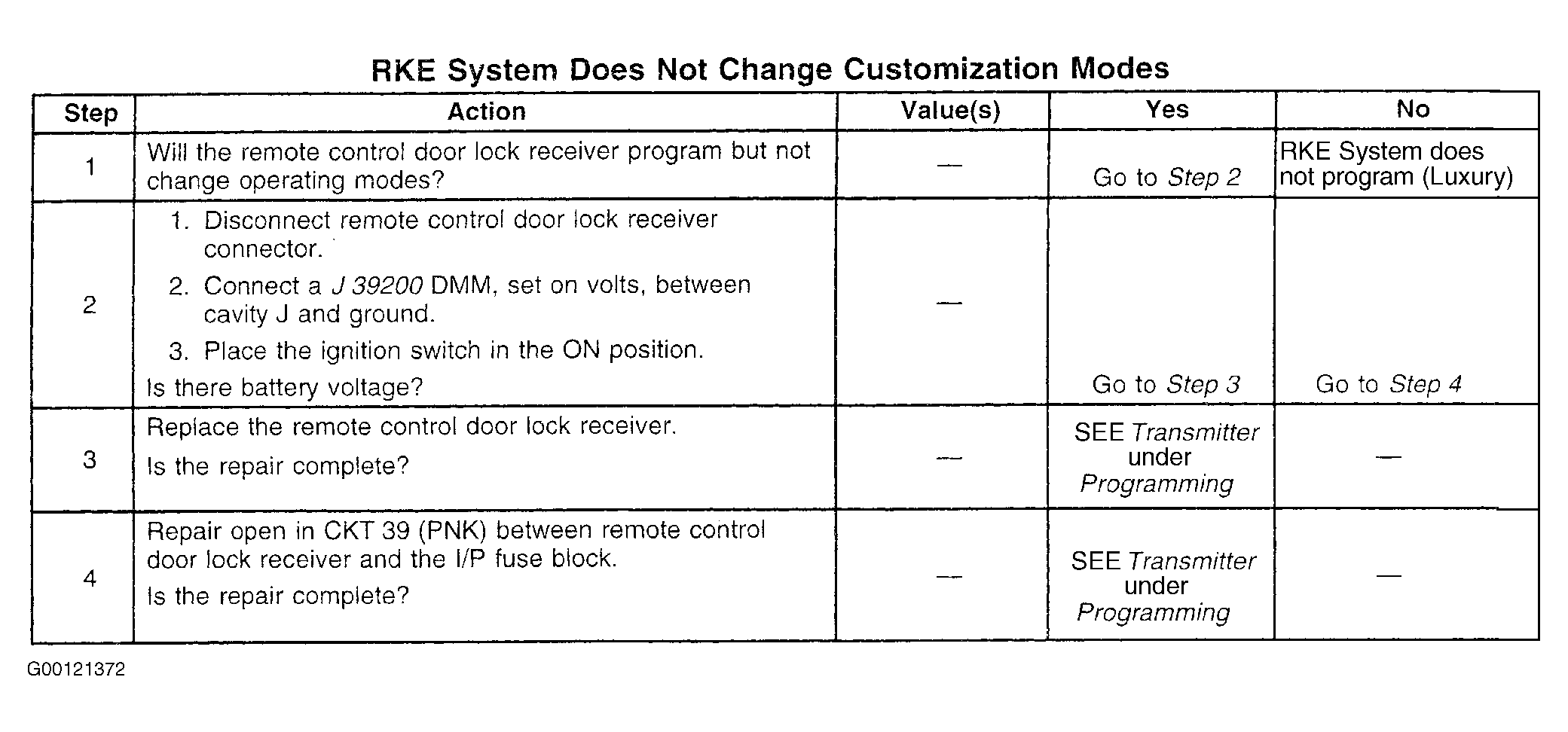

Fig 1: Test J: Remote Keyless Entry System Does Not Change Customization Modes

Courtesy of GENERAL MOTORS CORP.
