Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> Passenger Lumbar Message Module

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

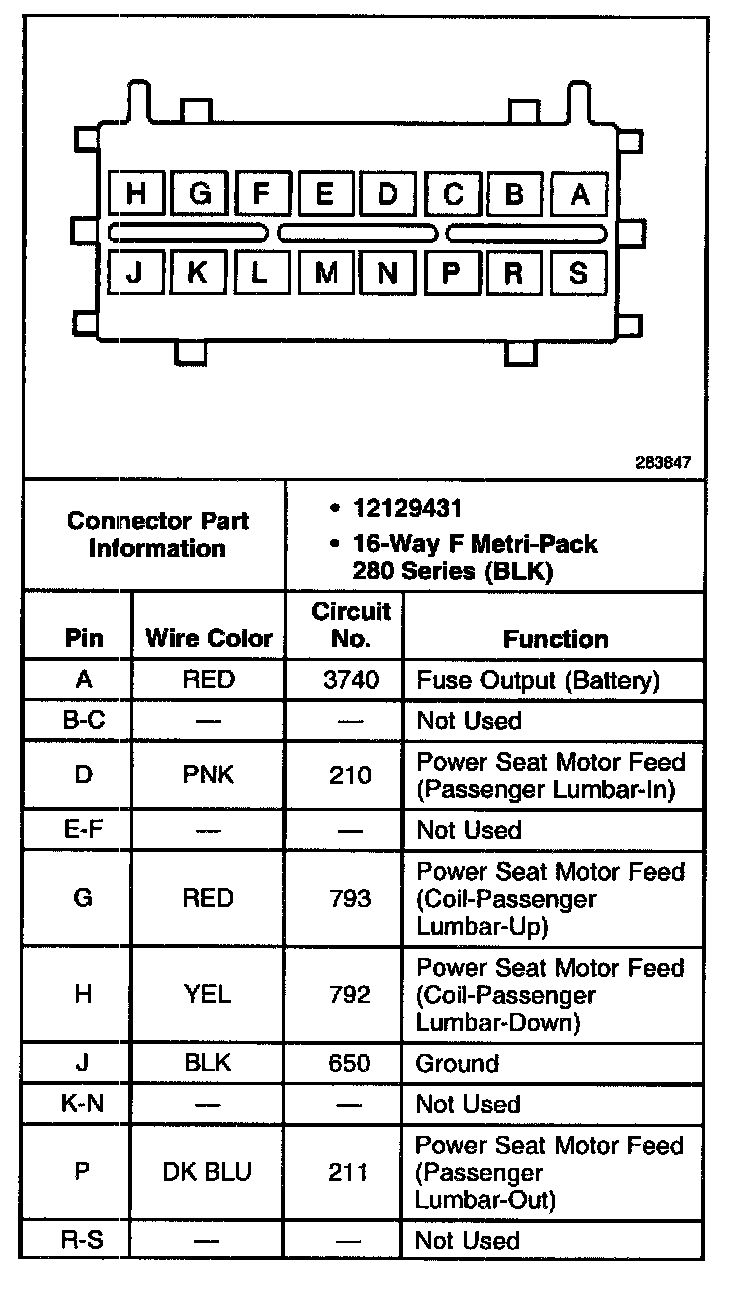

Passenger Lumbar Message Module

Passenger Lumbar Massage Module:
