Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - HVAC
>>
Control Module HVAC
>>
Locations
>>
Blower Motor Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

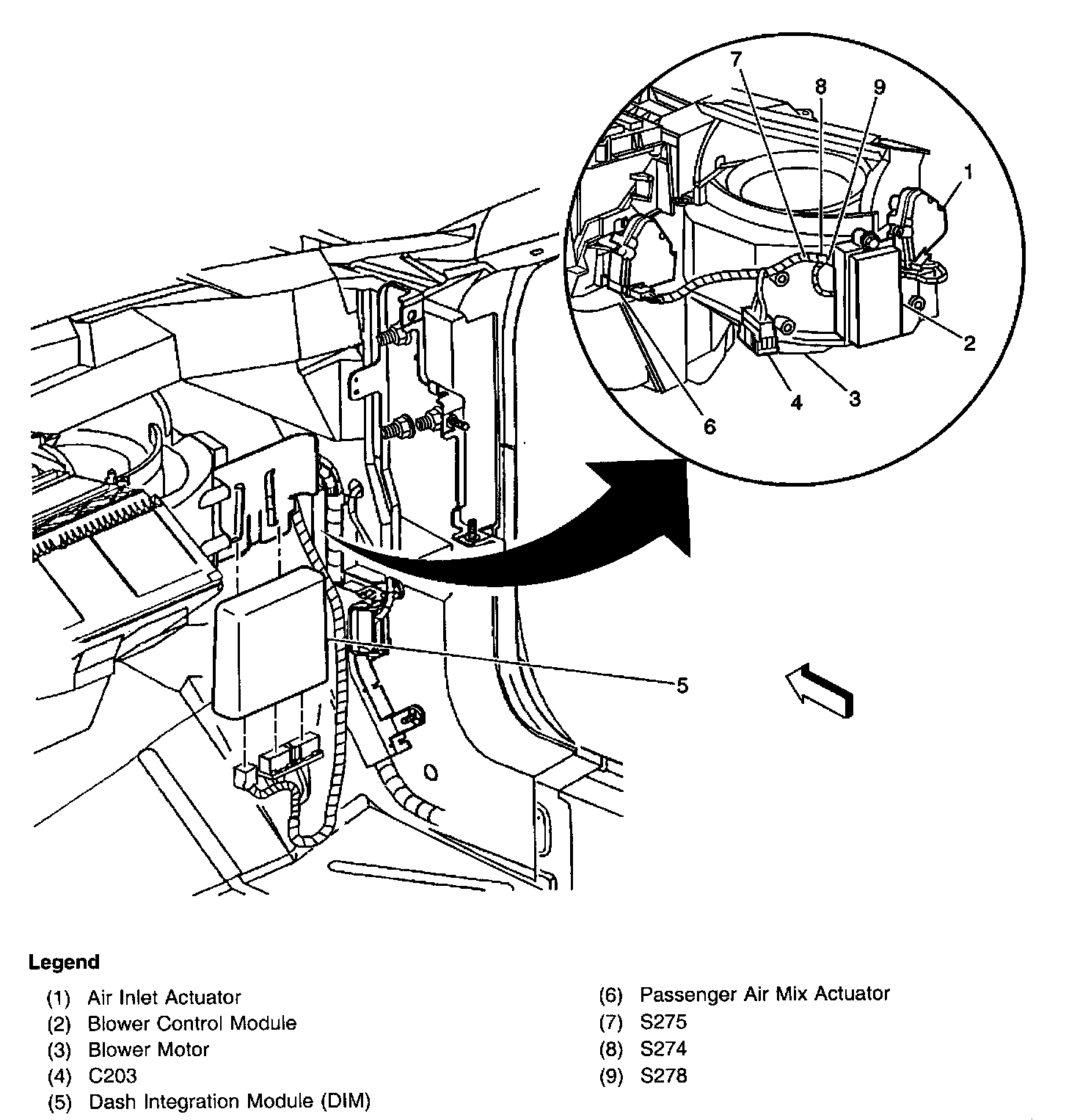

Blower Motor Control Module
Passenger Compartment, Right Side Below The IP:
Passenger Compartment, Right Side Below The IP:
Under right hand of the instrument panel, on the HVAC module
