Installation Procedure

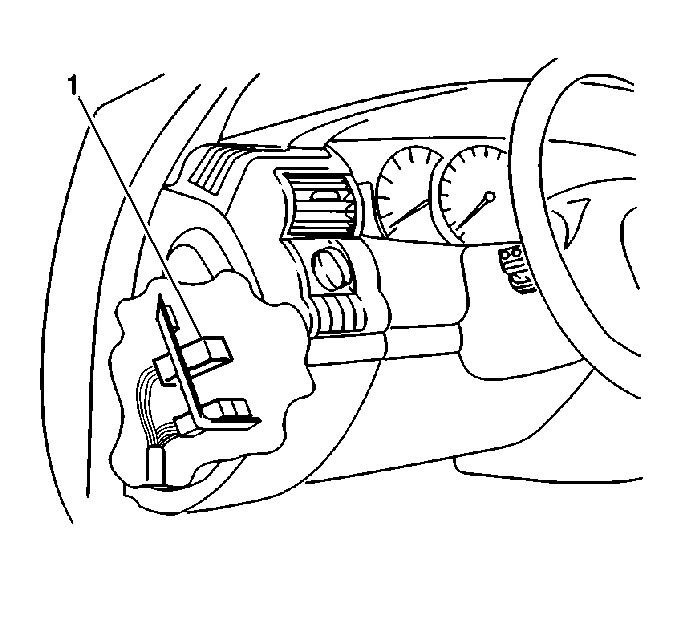

Fig 1: Locating Power Steering Control Module
GM143165Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering control module (1) to the electrical connector

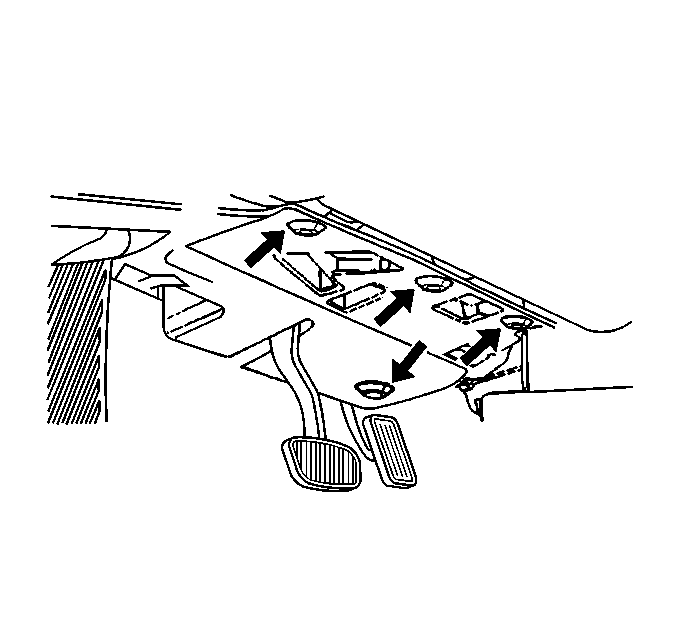

    2. Fig 2: Sound Insulator
    GM143164Courtesy of GENERAL MOTORS CORP.
  2. Twist the self-locking screws to attach the sound insulator to the instrument panel to install the sound insulator
