Thread Repair Specifications

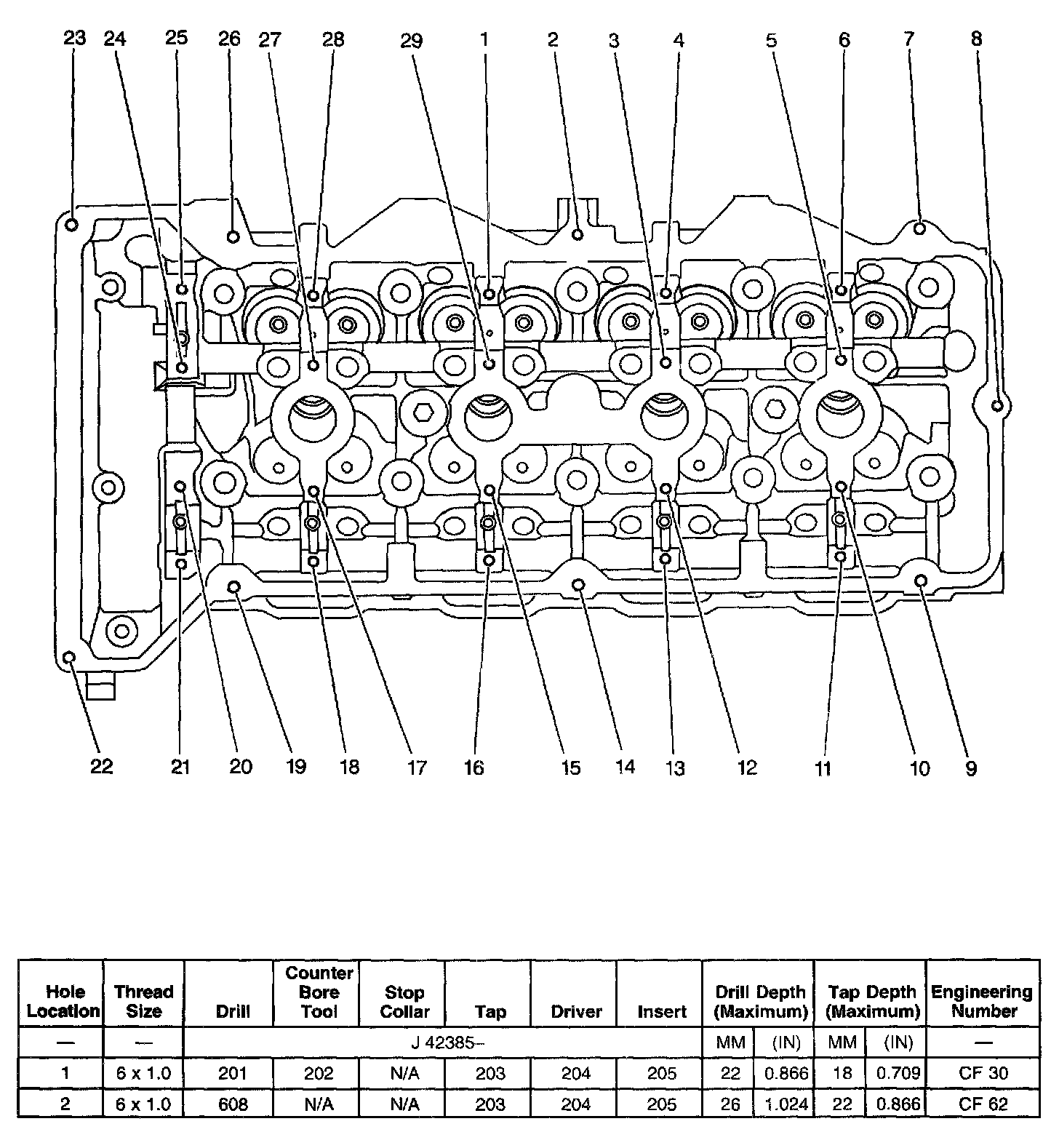

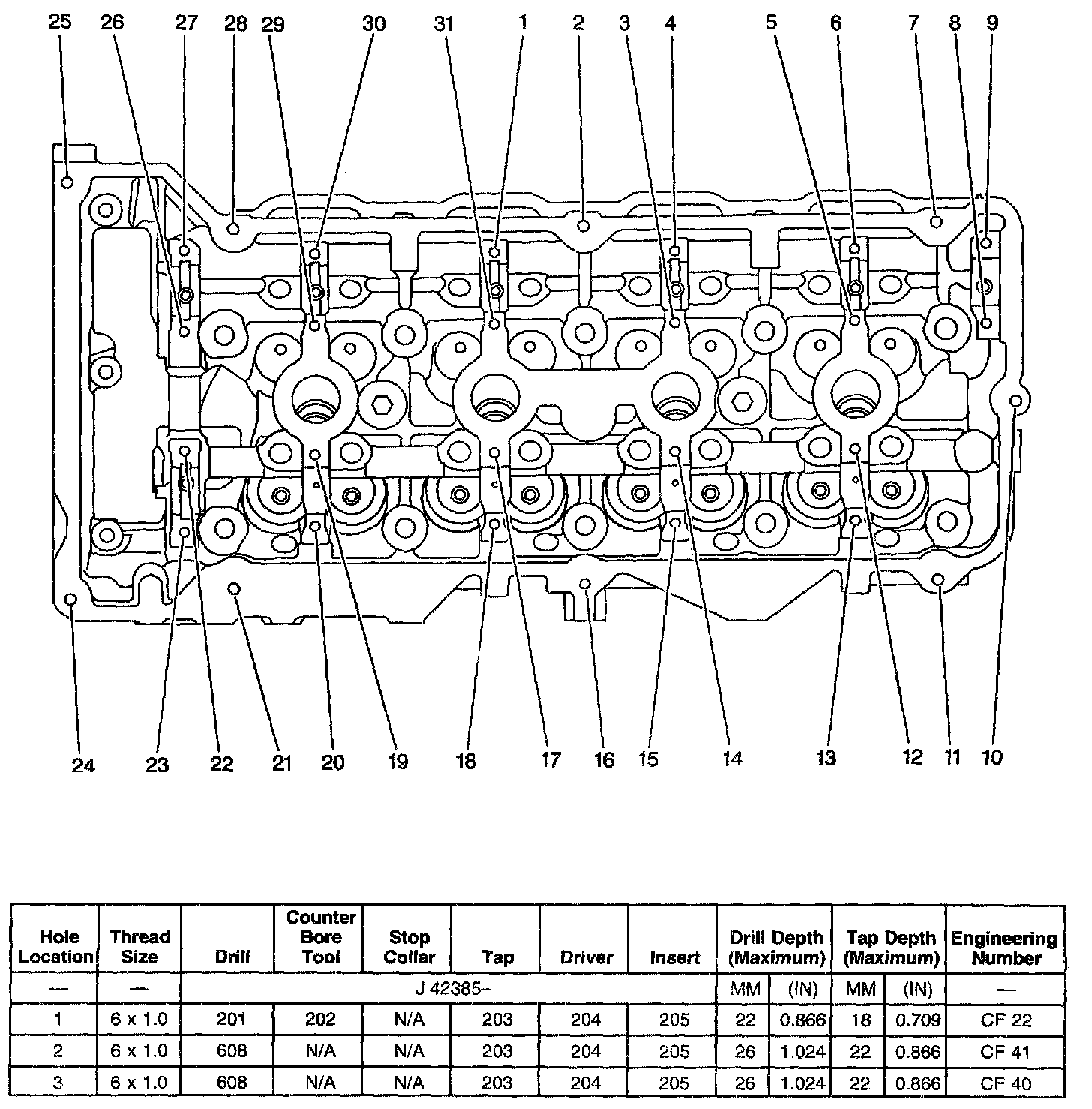

Left Cylinder Head Cam CVR

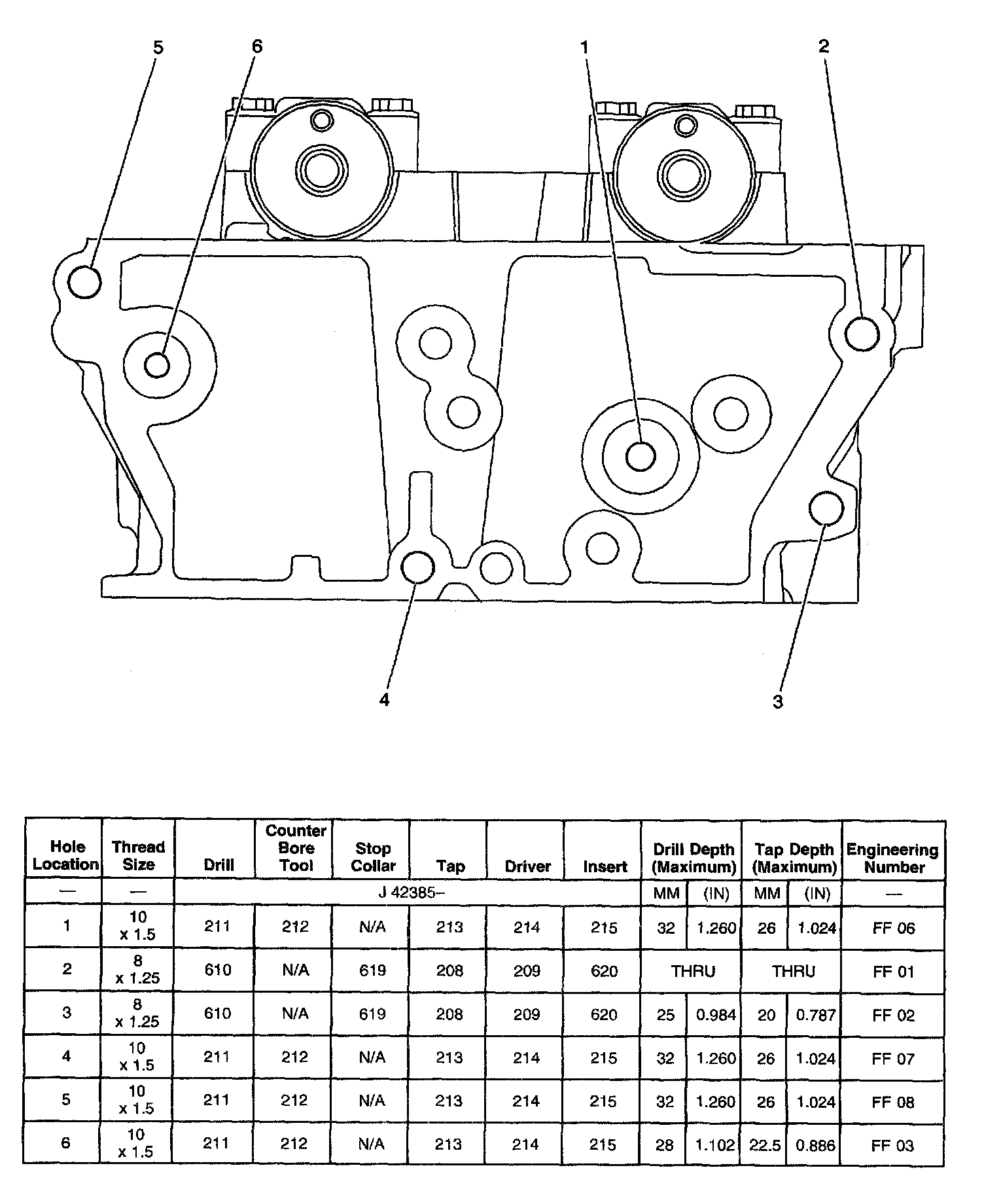

Left Cylinder Head Front Face

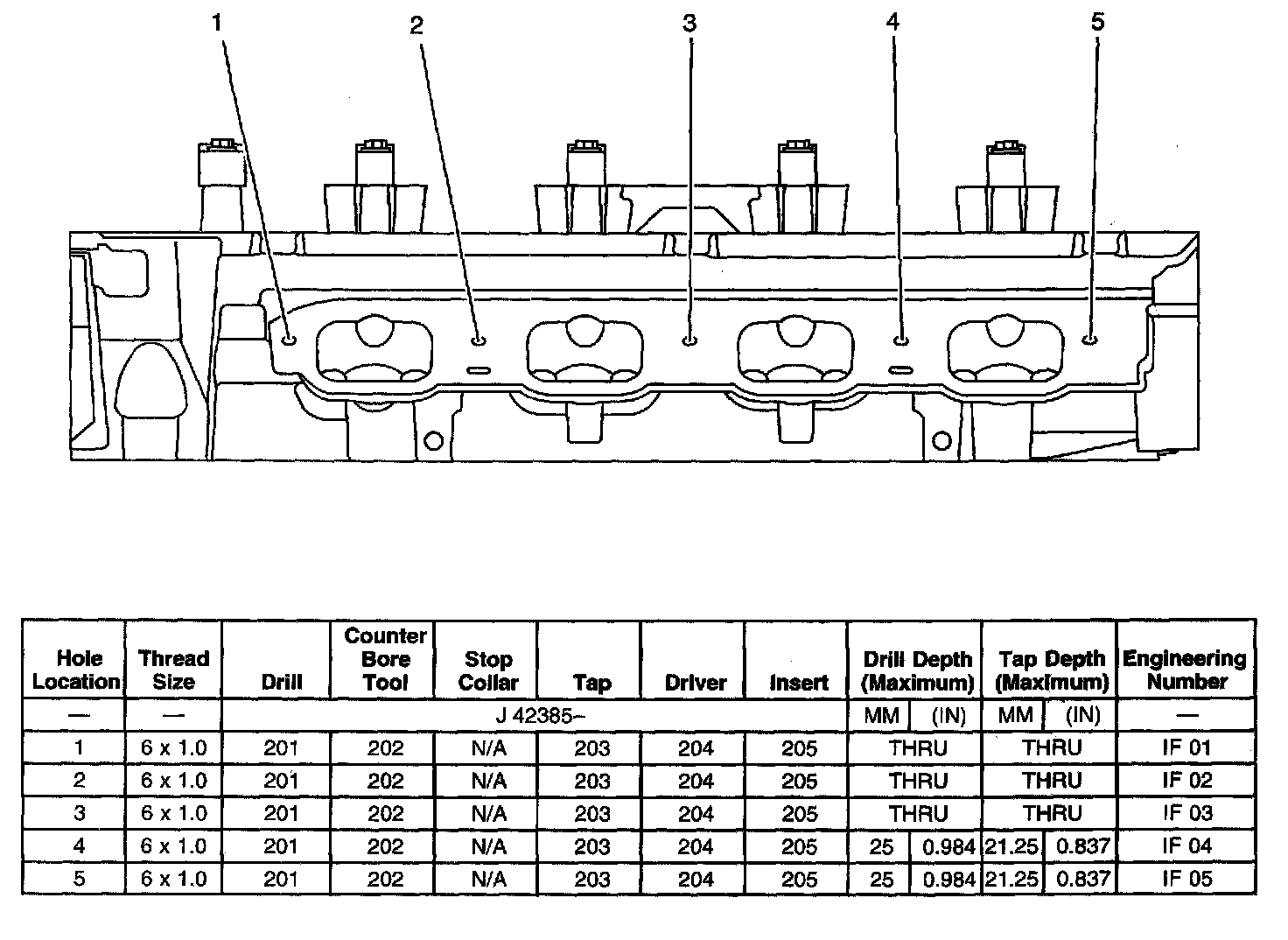

Left Cylinder Head Intake Face

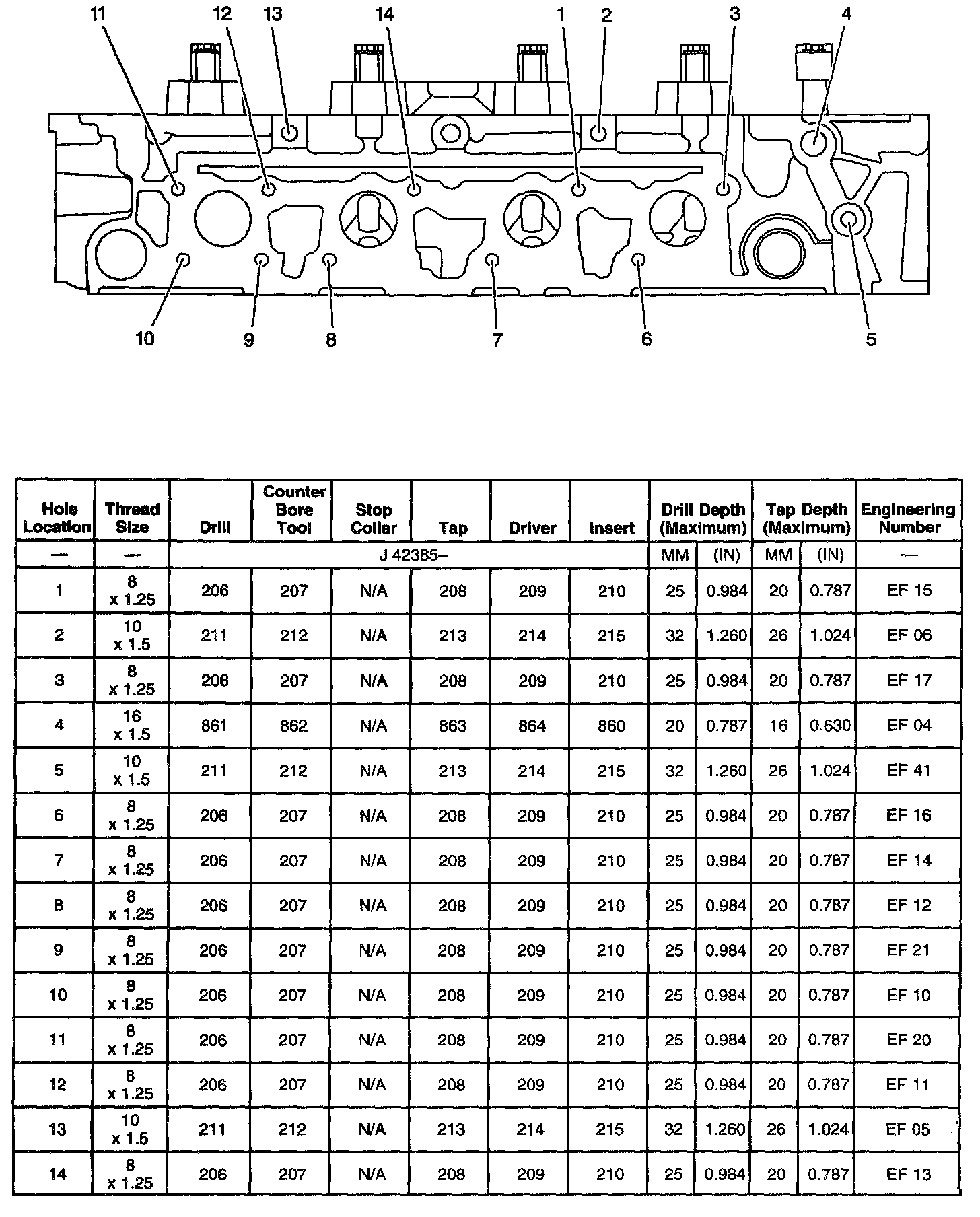

Left Cylinder Head Exhaust Face
Left Cylinder Head Rear Face
Right Cylinder Head Cam CVR
Right Cylinder Head Front Face

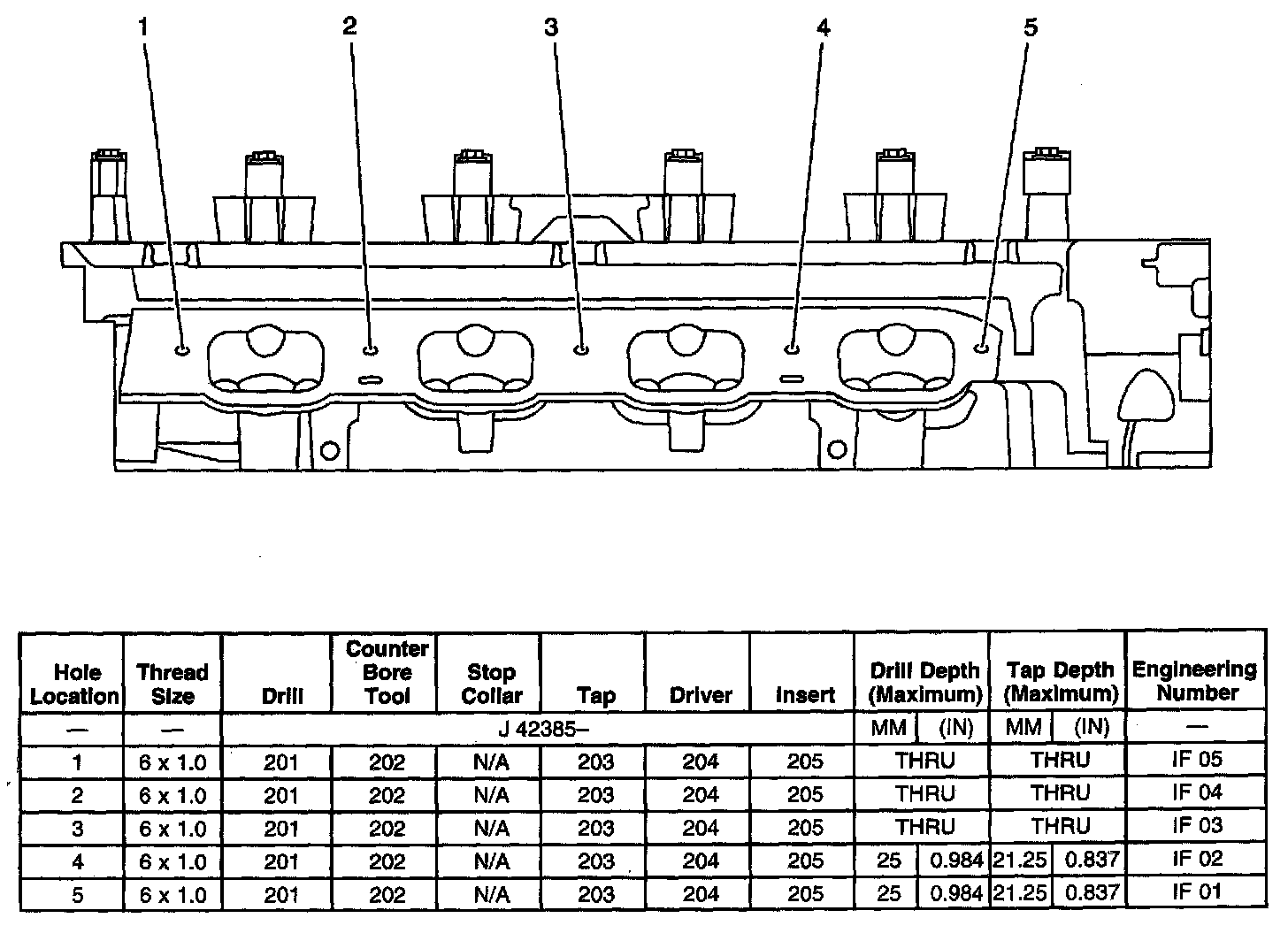

Right Cylinder Head Intake Face

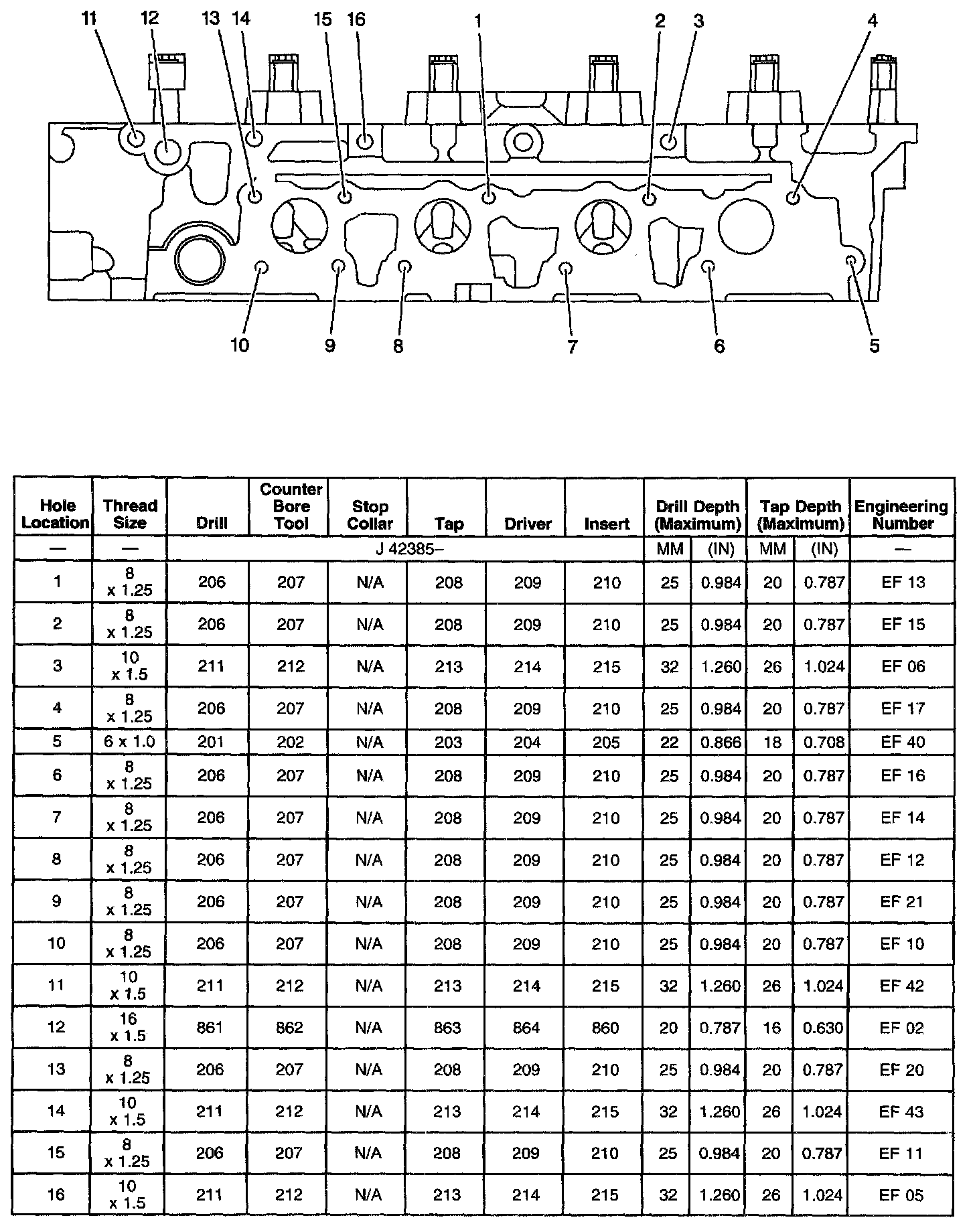

Right Cylinder Head Exhaust Face
Right Cylinder Head Rear Face

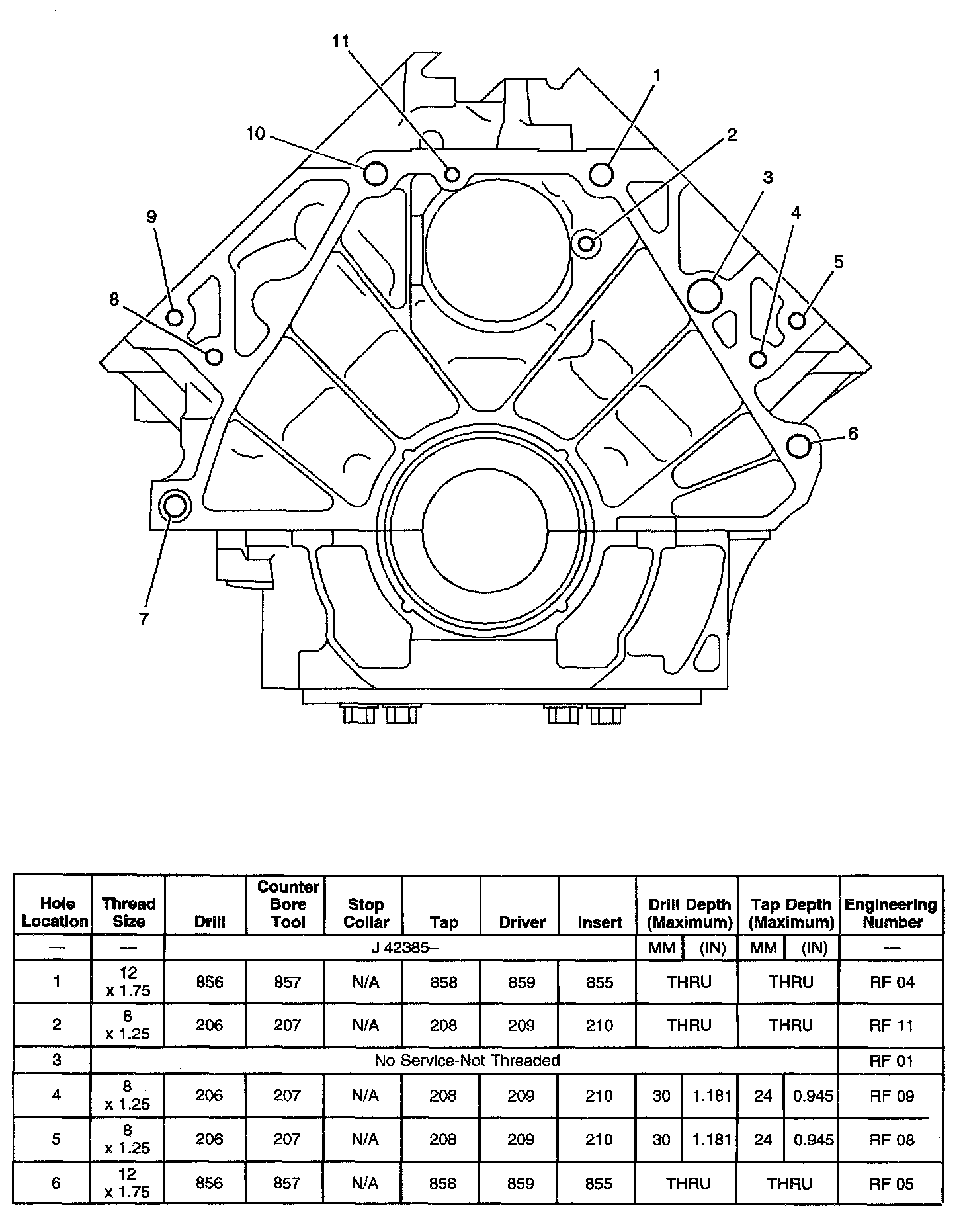

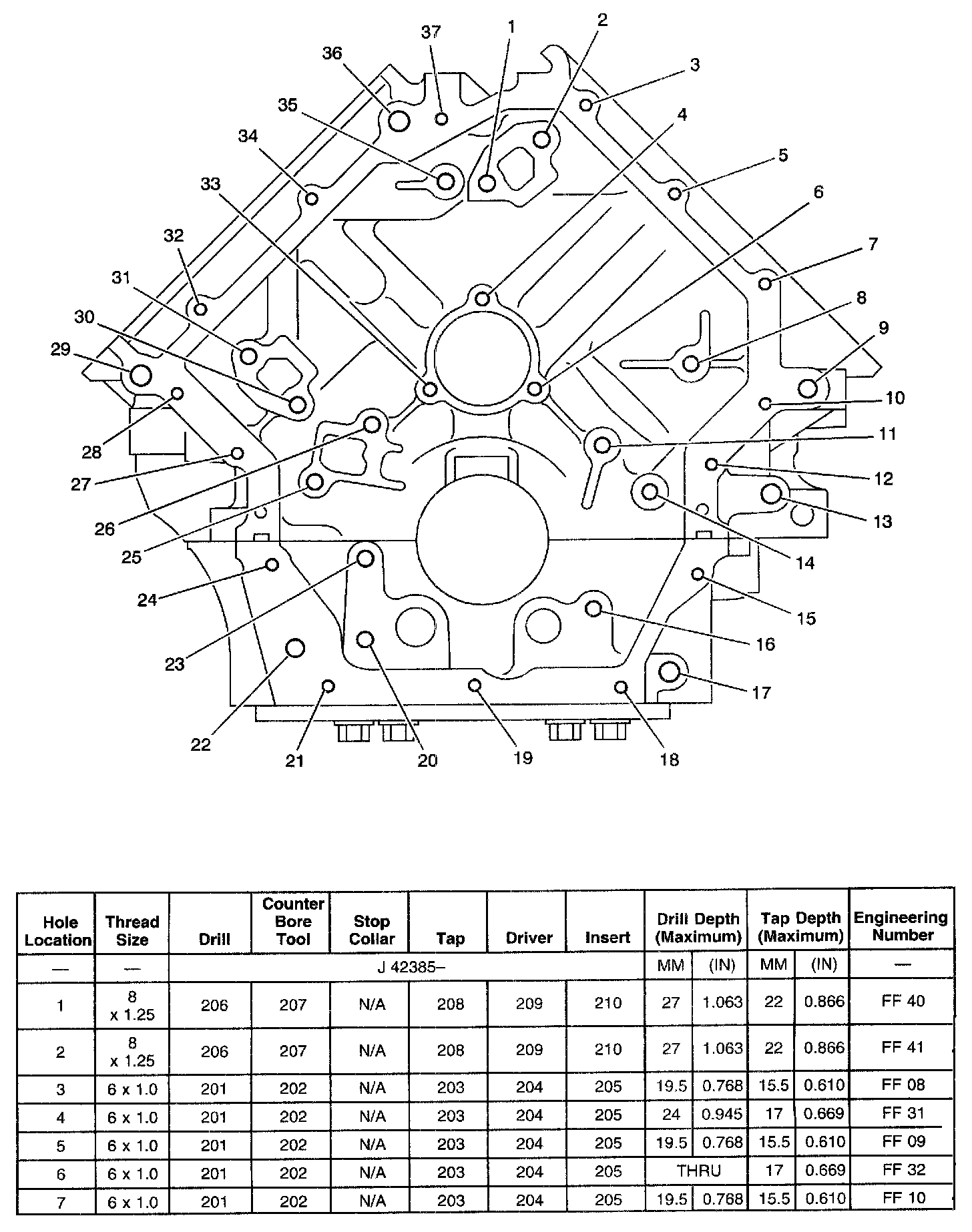

Engine Block Front
Engine Block Rear

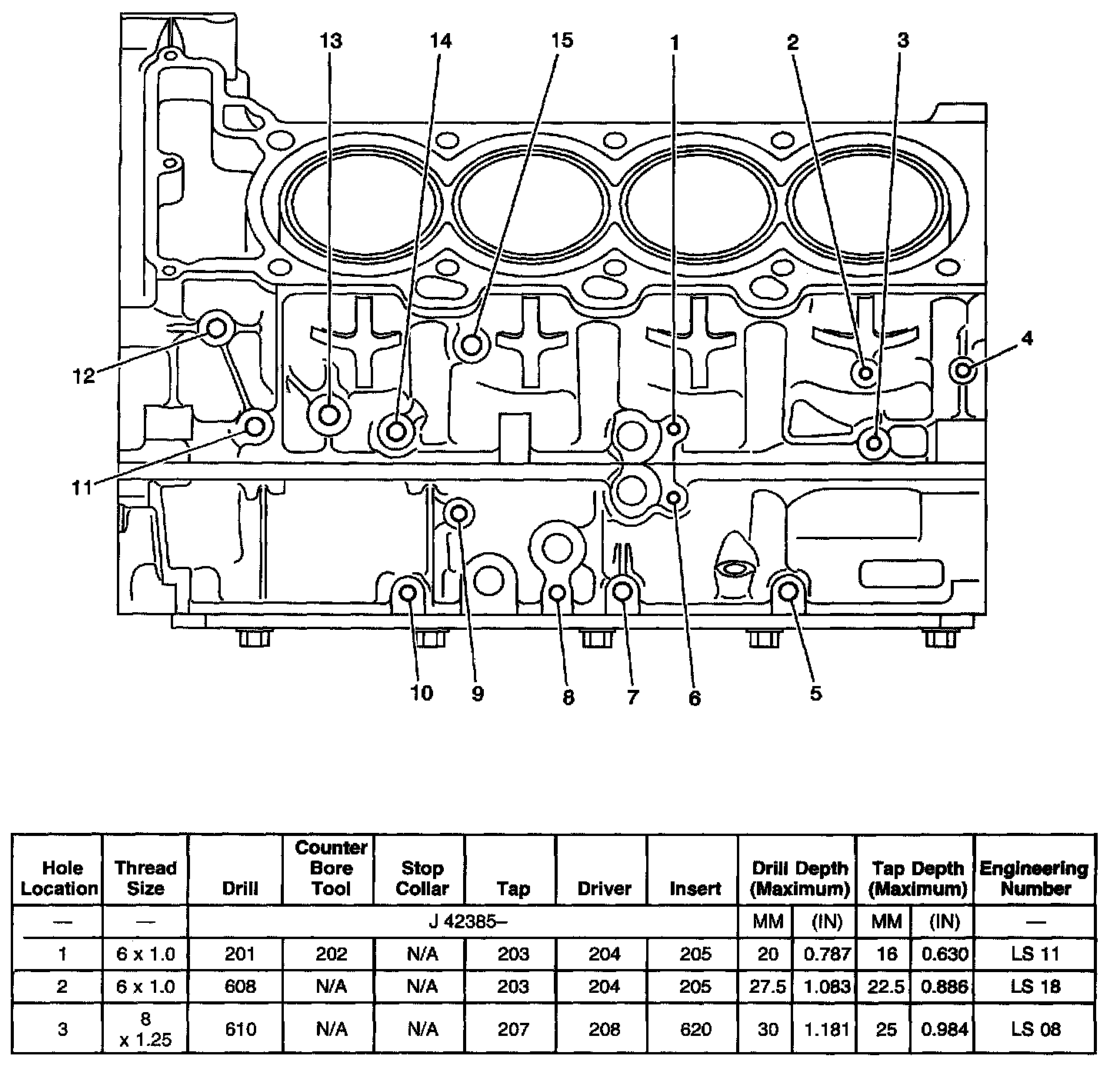

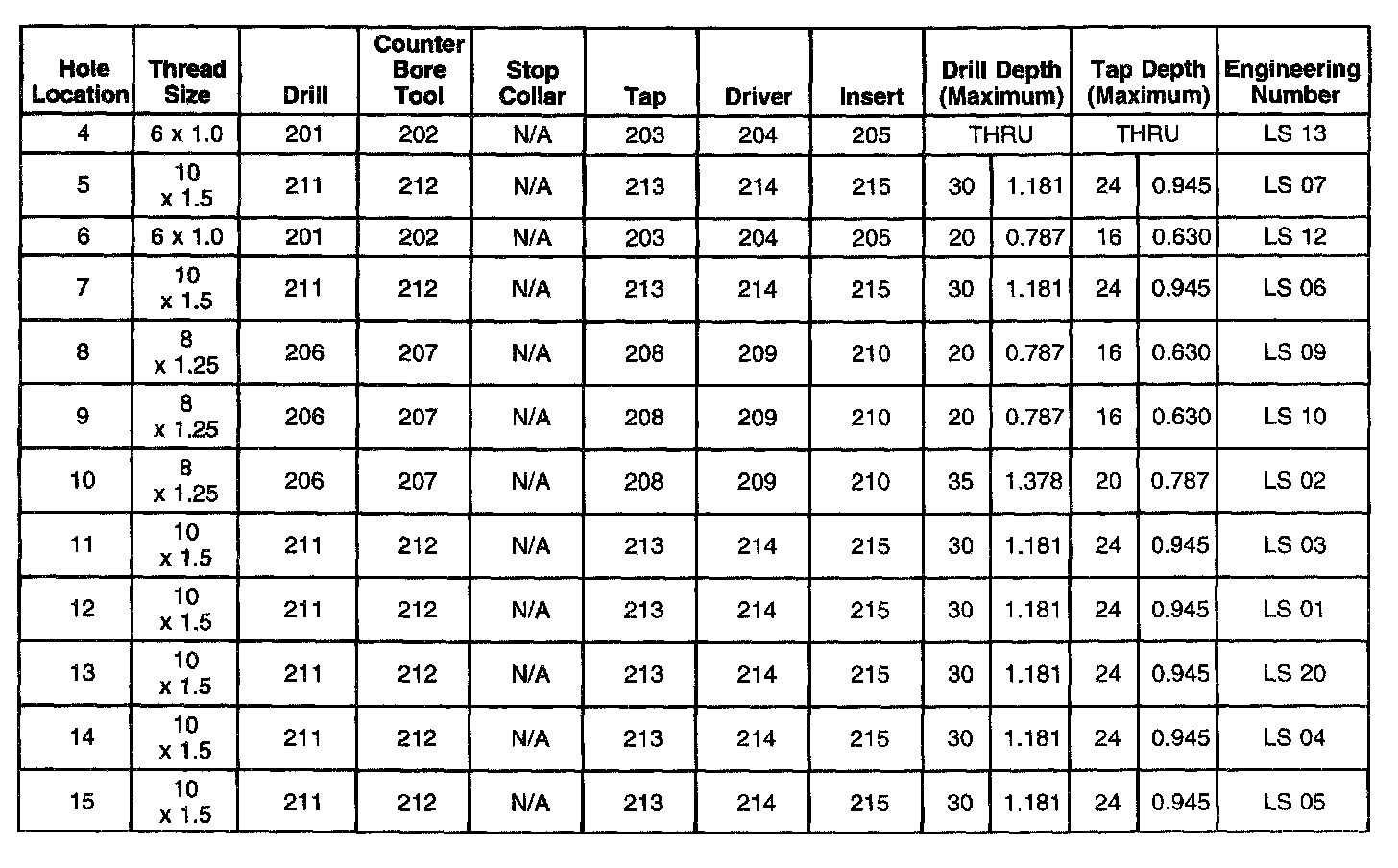

Engine Block Left Side

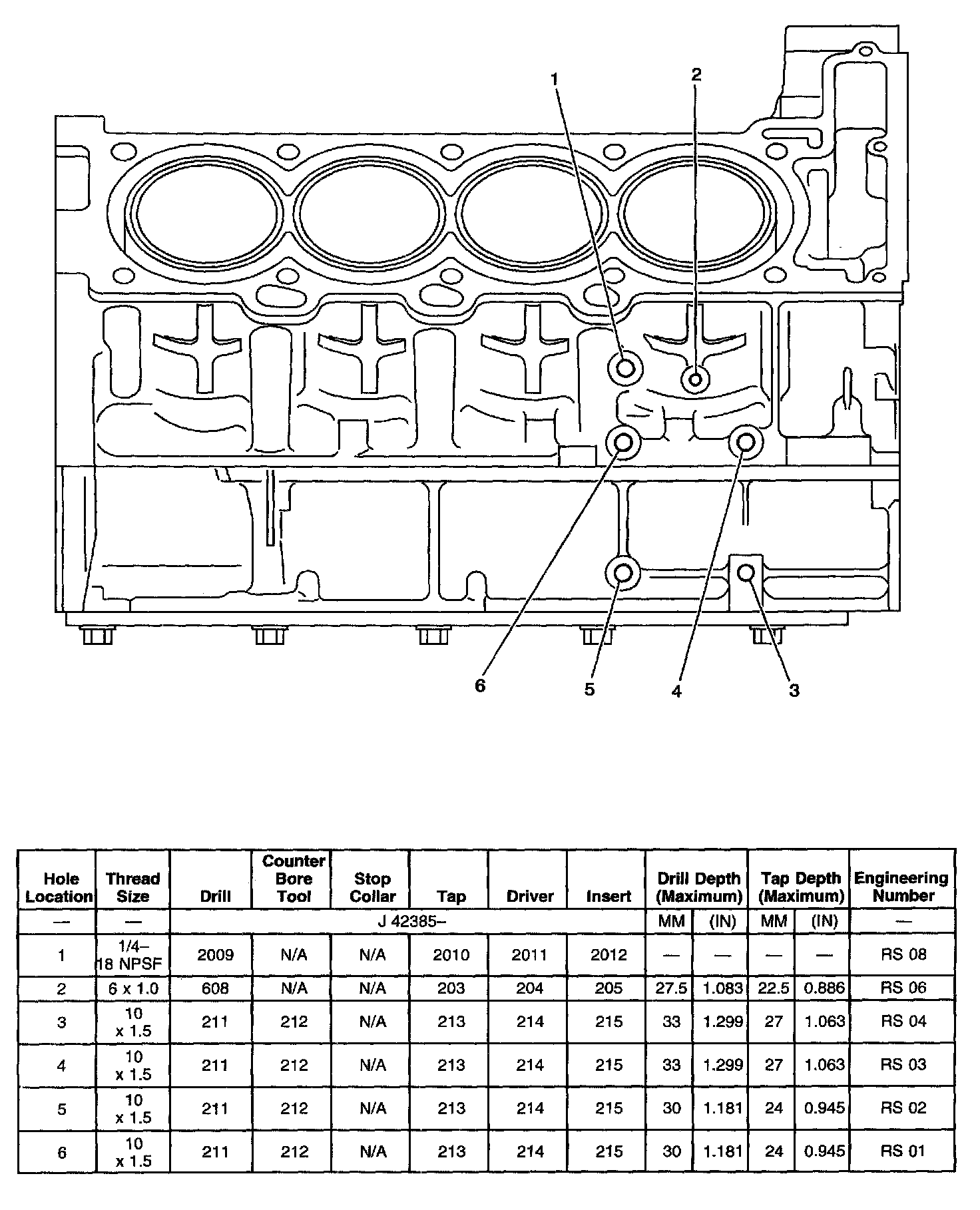

Engine Block Right Side

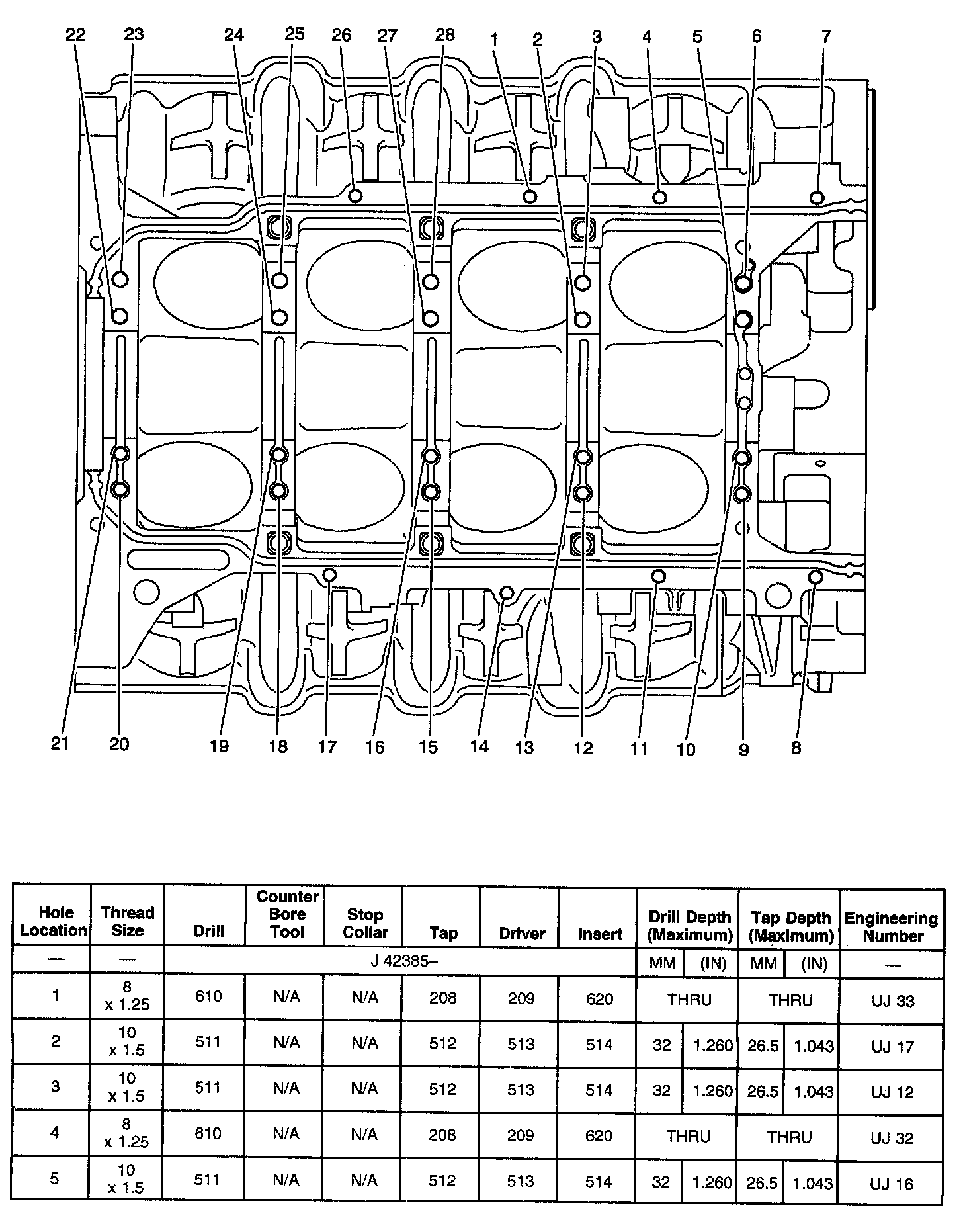

Engine Block Top Face
Engine Block Lower
Engine Block Left Deck
Engine Block Right Deck
Lower Crankcase Pan
