Control Assembly: Locations

Blower Control Module and Air Inlet Actuator

Under Right Side Of I/P , Right Of Blower Motor:

Ambient Light Sensor
Instrument Panel Integration Module (IPM)

Locations View:

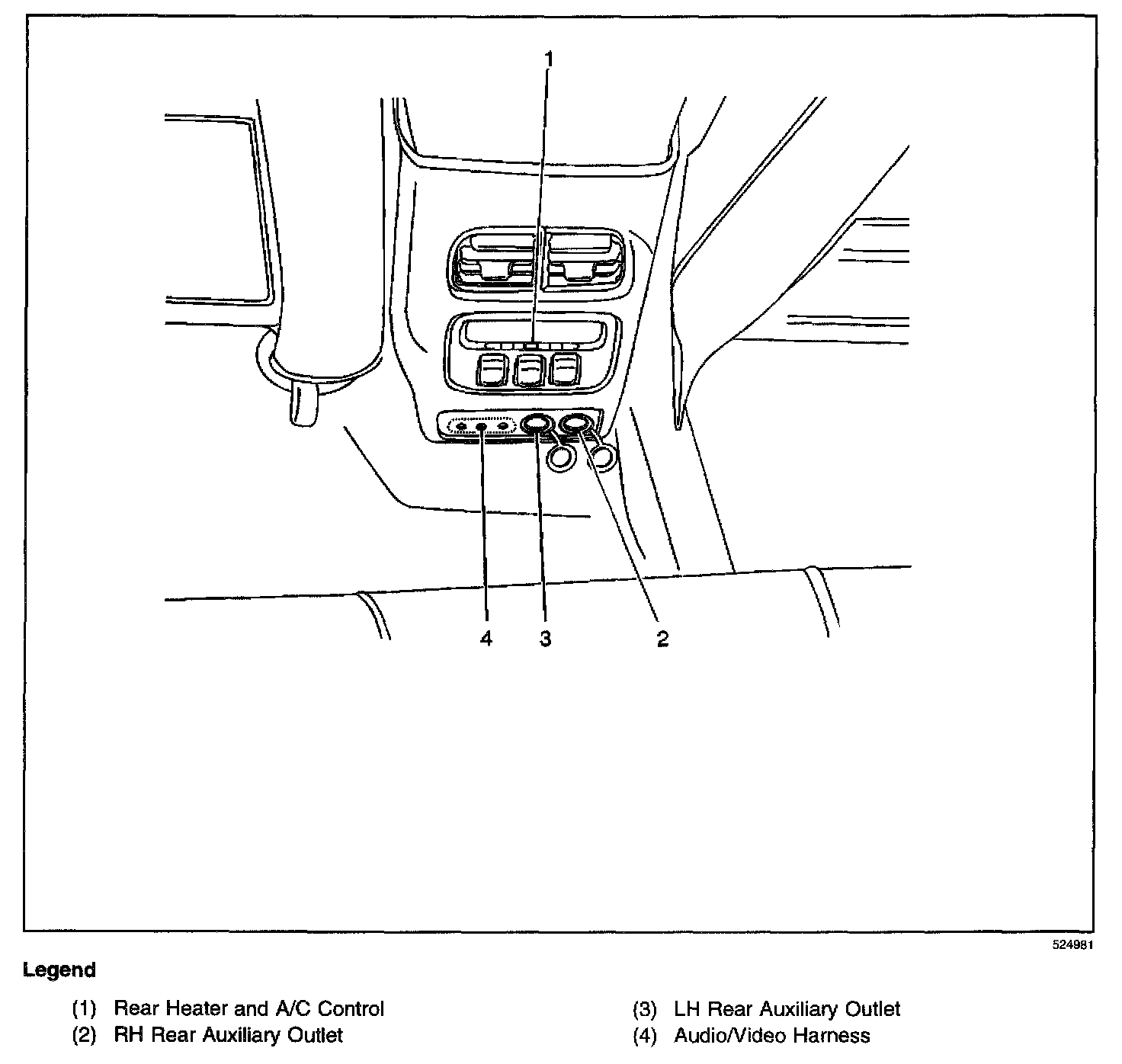

Rear Heater and A/C Control
RH and LH Auxilliary Outlet
