Level Control And Other Inputs And Outputs

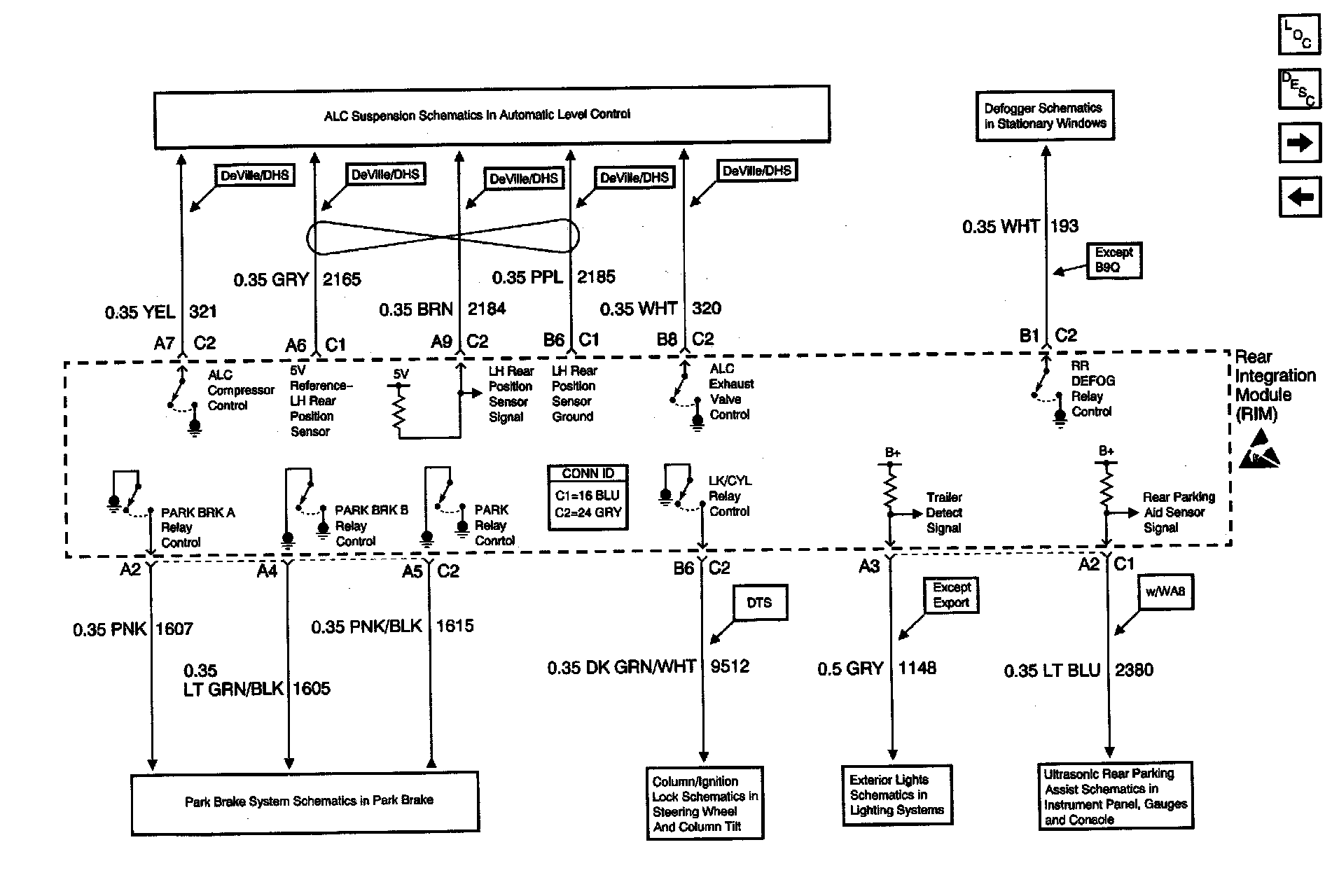

Body Control Module Schematics: Rear Integration Module (RIM) - Level Control And Other Inputs And Outputs:
