Main Bearing Cap Torque

Tighten the lower crankcase bolts in proper sequence.

First Pass

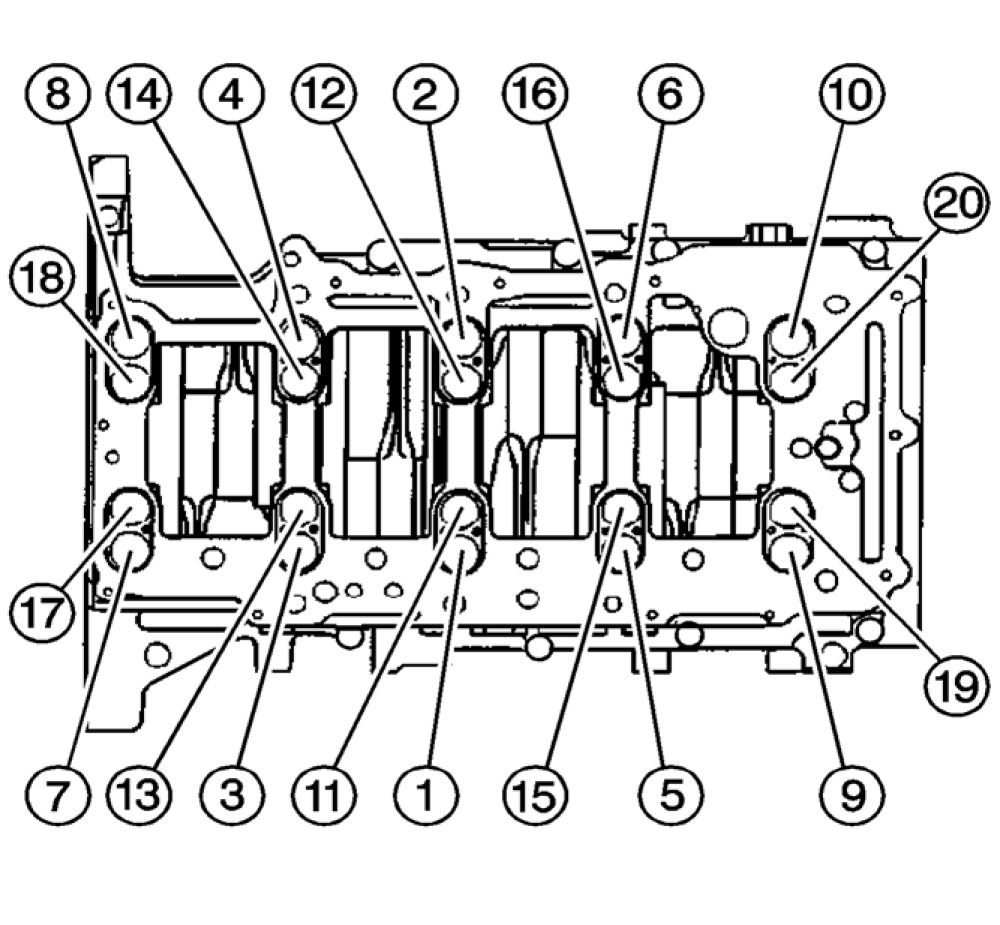

Tighten the lower crankcase bearing bolts (numbers 1 through 20) to 20 Nm (15 lb ft) in the proper sequence.
Final Pass
Tighten the lower crankcase bolts (numbers 1 through 20) an additional 65 degrees in the proper sequence using the J 36660-A.

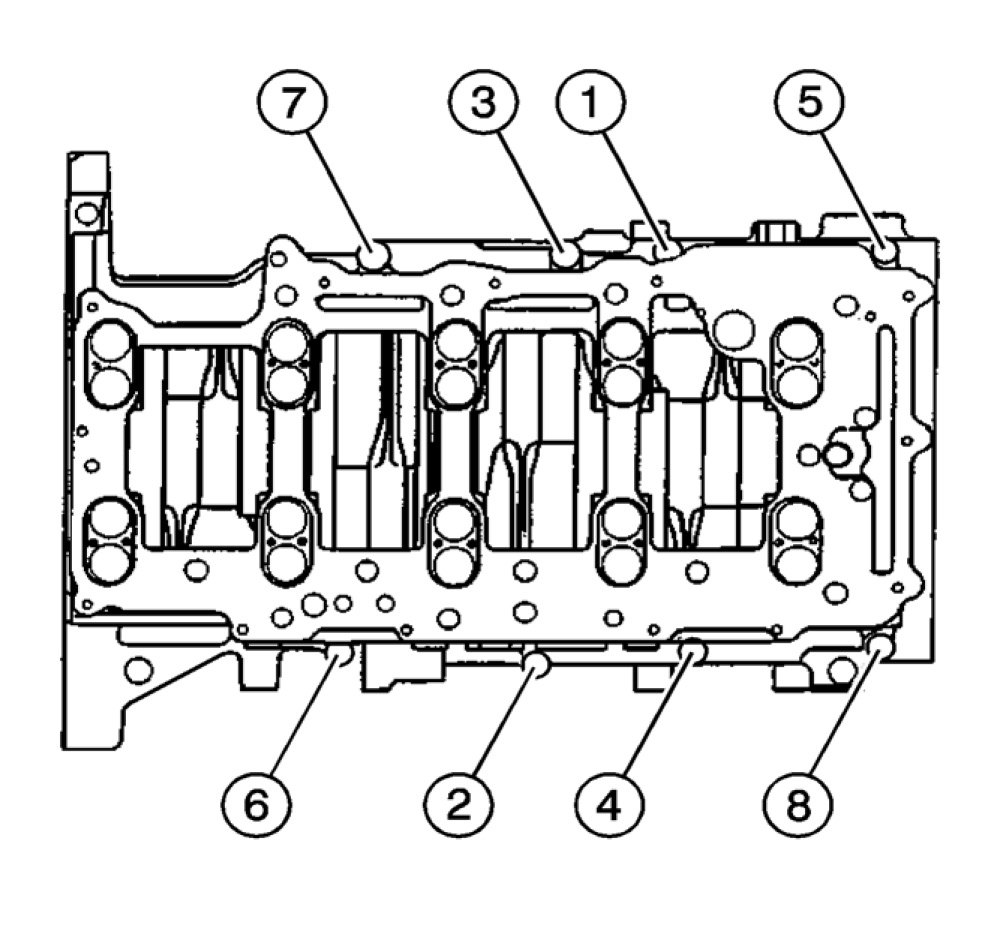

Tighten the upper to lower crankcase perimeter bolts (numbers 1 through 8) to 30 Nm (22 lb ft).
