Sun Load Sensor Replacement

SUN LOAD SENSOR REPLACEMENT

REMOVAL PROCEDURE

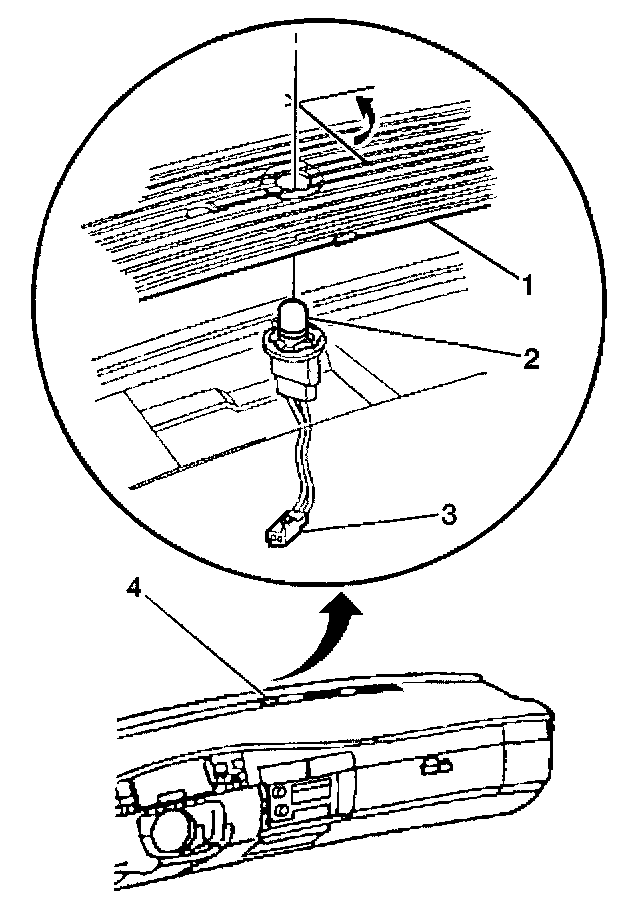

1. Remove the windshield defroster grille (1) by prying upward.
2. Disconnect the electrical connector (3) from the sun load sensor (2).
3. Remove the sun load sensor (2).

INSTALLATION PROCEDURE




1. Secure the sensor (2) to the defroster grille.
2. Connect the electrical connector (3).
3. Install the windshield defroster grille (1) by snapping into place.
