Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL PROCEDURE
1. Remove the engine sight shield.

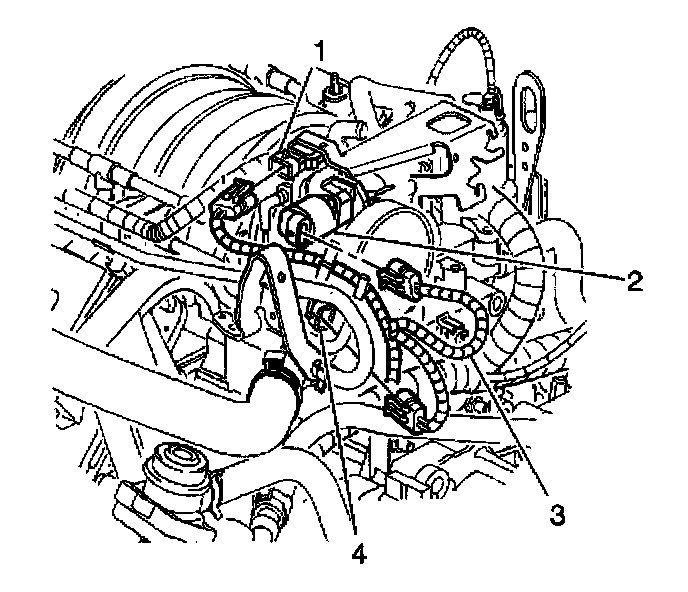

2. Disconnect the MAP sensor electrical connector.
3. Remove the cable bracket bolts and bracket.
4. Remove the MAP (1) sensor from the intake manifold.
5. Inspect the MAP sensor grommet for wear or damage. If a problem is found, replace as necessary.

INSTALLATION PROCEDURE
1. Install the MAP sensor (1) into the intake manifold.
2. Install the cable bracket and bolt.
3. Connect the MAP sensor electrical connector.
4. Install the engine sight shield.

Tighten
Tighten the engine sight shield retaining bolts to 8 N.m (70 lb in).
