Front (W/ A/C and Heater,W/O Rear Controller)

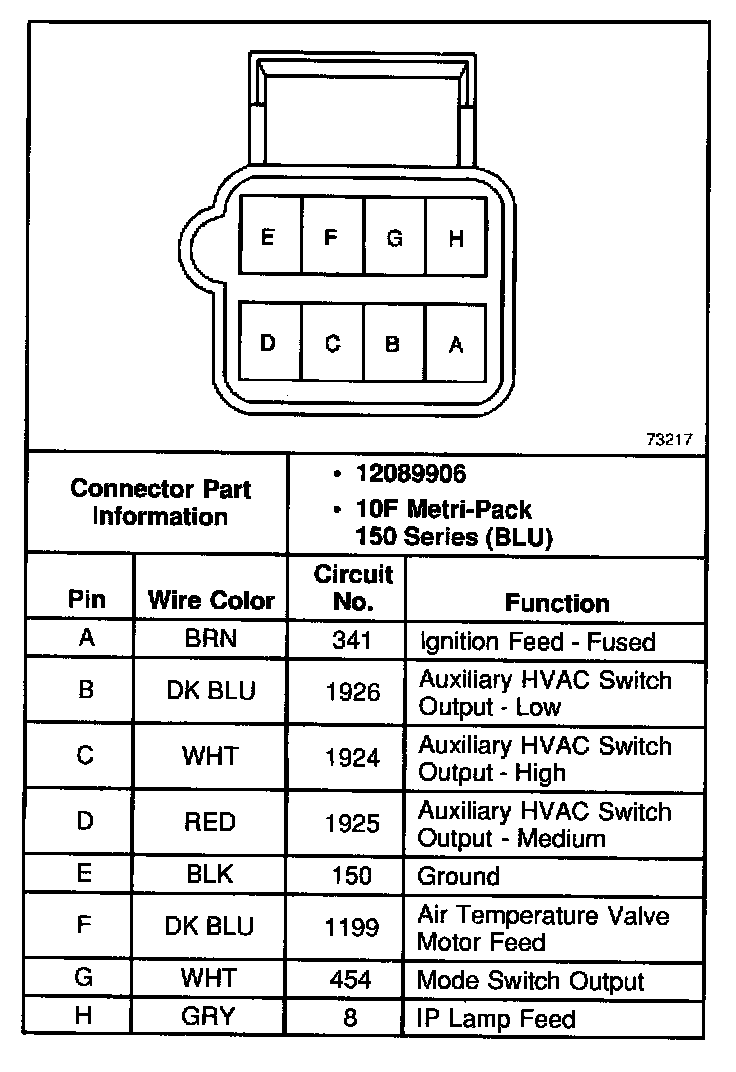

Auxiliary HVAC Control Module, Front (W/A/C And Heater, W/O Rear Controller):
