Connector C3

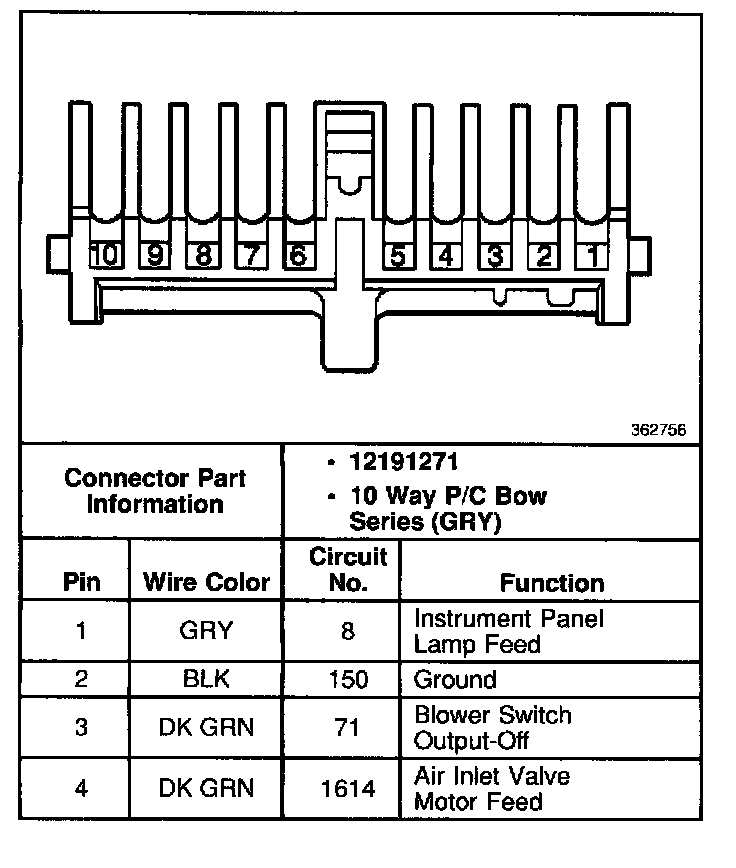

HVAC Control Module, Connector C3 (Part 1 Of 2):

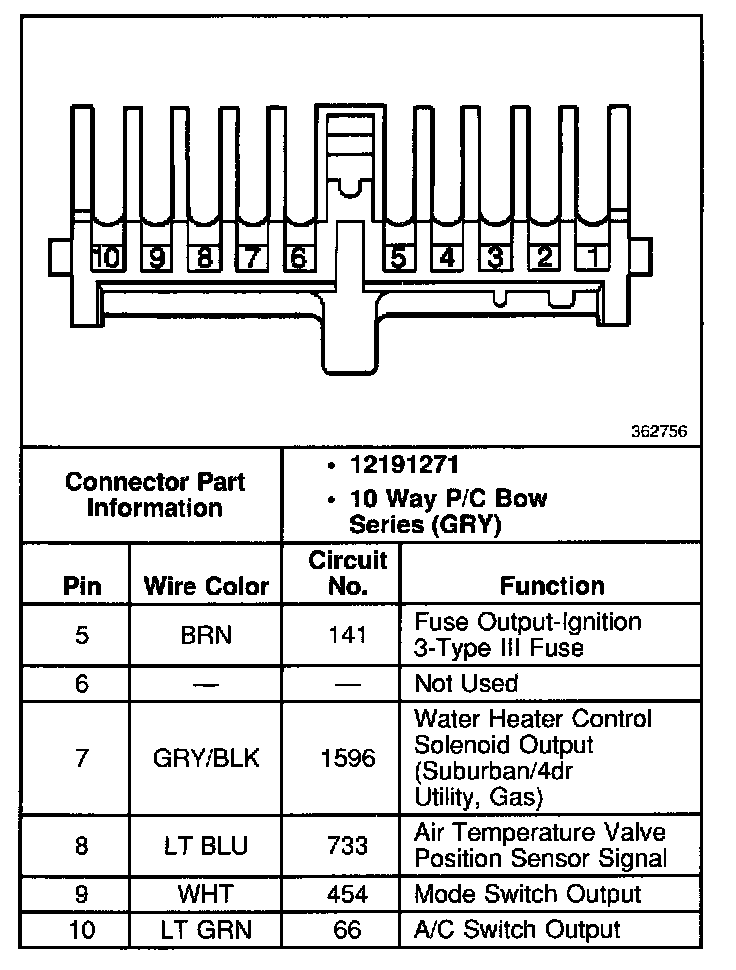

HVAC Control Module, Connector C3 (Part 2 Of 2):
