Control Assembly Replacement - Front Auxiliary A/C

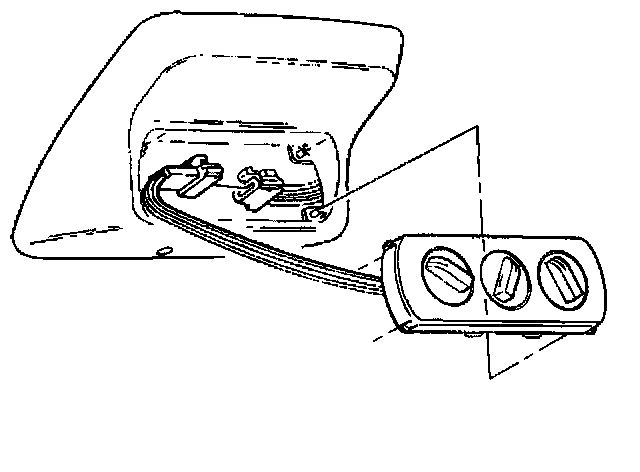

REMOVAL PROCEDURE




1. Remove the overhead console.
2. Disconnect the electrical harness from the control assembly.
3. Remove the control assembly from the overhead console.

INSTALLATION PROCEDURE




1. Install the control assembly to the overhead console.
2. Connect the electrical harness to the control assembly.
3. Install the overhead console.
4. Test the circuit operation.
